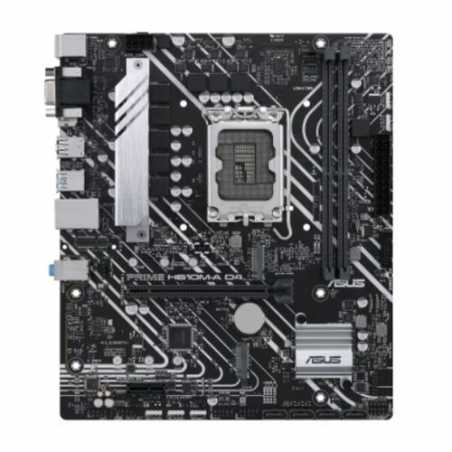

Asus PRIME H610M-A D4 CSM - Corporate Stable Model, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, PCIe4, 2x M.2
£110.19
VAT included
Delivered within 1-2 days.
Intel H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, dual M.2 slots, Intel 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 2 ports, SATA 6 Gbps, Addressable Gen 2 headers, and Aura Sync
- Intel LGA 1700 socket: Ready for 12th Gen Intel processors
- Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+
- Ultrafast connectivity: 32Gbps M.2 slot, Intel 1 Gb Ethernet and USB 3.2 Gen 2 ports
- Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
- ASUS Control Center Express (ACCE) for easier IT endpoint management
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Centre Express - server-grade IT management software.
* Lifecycle support, program offering and supply status may vary by region. Please consult your local sales representative for more information.
ASUS Control Centre Express
ASUS Control Centre Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Centre Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.
Flexibility
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Cooling
Prime H610 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Performance
Prime H610 series are built to handle the additional cores and increased bandwidth of 12th Generation Intel processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Customization
Prime H610 series add the nuanced details that improve every experience, from the exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
For more information please click here.
90MB19P0-M0EAYC
587 Items
Data sheet
- .
- 1 x COM Port1 x S/PDIF Out1 x Speaker1 x SPI TPM (14-1pin)1 x 10-1 pin System Panel
- Wireless
- -
- RAM Speeds
- Up to 3200 MHz
- Accessories
- 2 x SATA 6Gb/s cables1 x I/O Shield1 x M.2 SSD screw package1 x Support DVD1 x User guide1 x ACC Express Activation Key Card
- USB Ports Supported
- 2 x USB 3.2 Gen2 Type-A (at back)2 x USB 3.2 Gen1 Type-A (at mid-board)7 x USB 2.0 (4 at back, 3 at mid-board)
- Storage
- 4 x SATA III1 x M.2 (2242/2260/2280) - PCIe1 x M.2 (2242/2260/2280) - PCIe
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- Intel 1700
- Chipset
- Intel H610
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 64GB
- LAN
- GB LAN
- Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- Back Panel I/O Ports
- 2 x USB 3.2 Gen1 Type-A4 x USB 2.01 x DisplayPort1 x D-Sub1 x HDMI1 x V-M.2 slot (Key E)1 x Intel 1Gb Ethernet3 x Audio jacks 1 x PS/2 Keyboard (purple)1 x PS/2 Mouse (green)
- Internal I/O Connectors
- 1 x 4-pin CPU Fan2 x 4-pin Chassis Fan1 x 24-pin Main1 x 8-pin +12V2 x M.2 (Key M)4 x SATA 6Gb/s1 x USB 3.2 Gen12 x USB 2.03 x Addressable Gen22 x AURA RGB1 x Clear CMOS1 x Front Panel Audio
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 1 x VGA1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated Graphics**Graphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- RGB Lighting
- Yes (RGB)
- PCI/PCI Express
- 1 x PCIe 4.0 x16 slot1 x PCIe 3.0 x1 slot
