Asrock DeskMeet B660 Barebone PC, Mini ITX, 1700 (B660), DDR4 DIMM, 3x SATA, 2x M.2, VGA, HDMI, DP, USB-C, 500W PSU - No CPU, R
search
  • Asrock DeskMeet B660 Barebone PC, Mini ITX, 1700 (B660), DDR4 DIMM, 3x SATA, 2x M.2, VGA, HDMI, DP, USB-C, 500W PSU - No CPU, R
  • Asrock DeskMeet B660 Barebone PC, Mini ITX, 1700 (B660), DDR4 DIMM, 3x SATA, 2x M.2, VGA, HDMI, DP, USB-C, 500W PSU - No CPU, R

Asrock DeskMeet B660 Barebone PC, Mini ITX, 1700 (B660), DDR4 DIMM, 3x SATA, 2x M.2, VGA, HDMI, DP, USB-C, 500W PSU - No CPU, R

£243.24
VAT included
Stock status: Very low
Last 10 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%

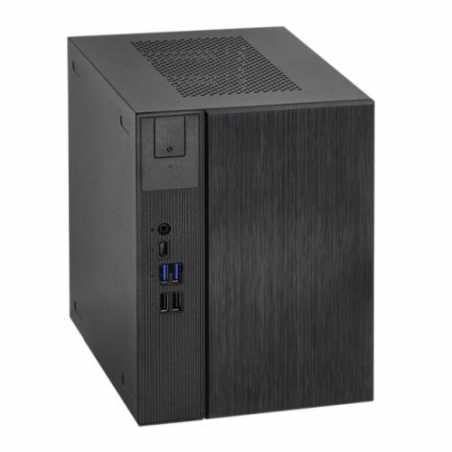

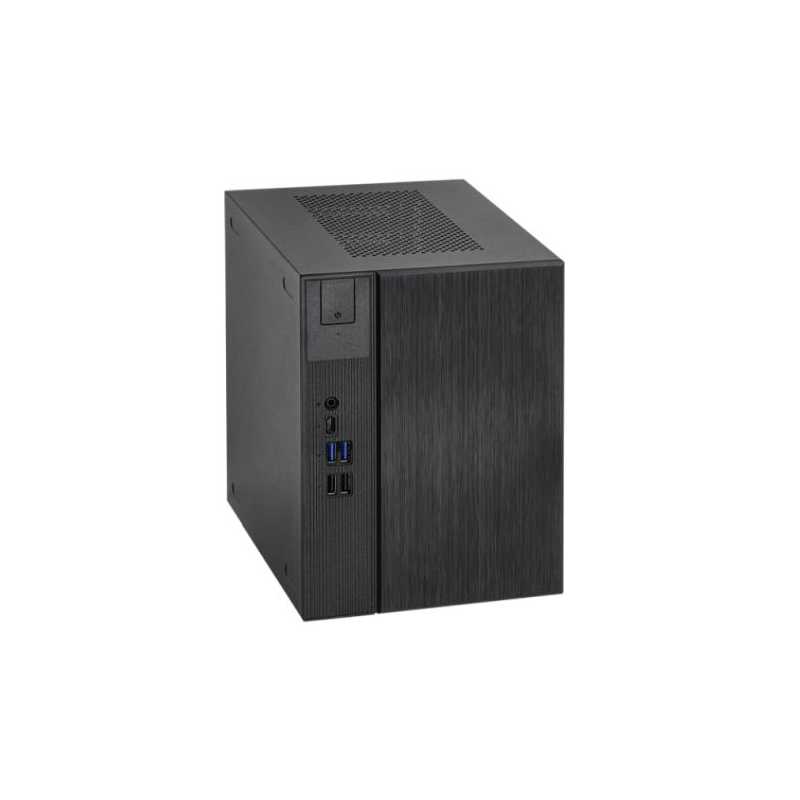

With just 8 liters of volume, DeskMeet is a powerful and compact desktop PC designed to deliver the best experience for daily computing, gaming, home entertainment, content creation and business. It supports the desktop processor and the graphics card under 20 cm long. This chassis can stand either vertically or horizontally to fit into any workspace and give users a neat and tidy desk space.


  • Supports 12th Gen Intel Core™ Processors (LGA1700)
  • Supports MAX Height <54mm CPU Cooler
  • Supports 4 x DDR4-3200MHz DIMMs, up to 128GB
  • 1 x PCIe 4.0 x16
  • Graphics Output Options: DisplayPort, HDMI & D-Sub
  • 3 x SATA3
  • 1 x Hyper M.2 (PCIe Gen4 x4 & SATA3)
  • 1 x Hyper M.2 (PCIe Gen4 x4)
  • 1 x USB 3.2 Gen1 Type-C Port
  • 4 x USB 3.2 Gen1 Type-A port (2 Front, 2 Rear)
  • 4 x USB 2.0 Type-A port (2 Front, 2 Rear)
  • 1 x M.2 Key-E for Wi-Fi
  • 500W power supply (80+ Bronze)
  • 8 Liter compact size





Processing Power

DeskMeet B660 supports 12th Gen Intel® Core™ Processors that delivers ultimate performance for efficient work and demanding applications.





Incredible Memory Performance

Up to 128GB of four DIMM memory clocked at 3200MHz, DeskMeet provides a faster multitasking experience and a responsive system.





Heatsink

DeskMeet features a dedicated MOSFET heatsink that allows it to dissipate excess heat and operate at the optimum temperature for reliable performance.





Ready for Dual slot Graphics Card

DeskMeet can fit a dual slot graphics card (up to 20cm or 7.87 inches) which is an option for those requiring advanced graphics performance for heavy visual tasks, such as gaming, 3D rendering and video editing.





Efficient Airflow Design

DeskMeet features air vents at the top, left side and bottom of the chassis, allowing for maximum heat removal and constant airflow.
In addition, the custom intake fan inside the power supply can pull in cool air to dissipate heat from the CPU and VRM. Such optimized thermal design enables the system to run cool and quiet without compromising performance.





Expand the Configurations Potential

With a flexible and expandable design, DeskMeet can be easily configured to meet users now and future needs. The mounting holes on top of the frame provide four options, 1 x 3.5” HDD, 2 x 2.5” SSD/HDD, 1 x 120mm fan or 1 x single radiator liquid cooler.





Up to Five Storages

DeskMeet B660 provides up to 5 storages including 3 x SATA 6Gb ports and 2 x Hyper M.2 slots with support of PCI Express 4.0 standard to speed up loading time for all your favorite apps.

M2_1 M.2 (2280) –PCIe Gen4 x4 & SATA3
M2_2 M.2 (2280) –PCIe Gen4 x4
3 x SATA 6Gb SSD/HDD





Easy to set up and upgrade

DeskMeet adopts a drawer chassis design so users can pull out the motherboard tray after removing one screw at the bottom. To keep up the system in the latest status, all the components can also be installed or upgraded with ease. DeskMeet provides a simple setup experience to save time and effort.





Keep Your 3.5” HDD

DeskMeet can be equipped with 2 x 3.5” HDD at most. When users replace the aged tower PC with DeskMeet, they can install their old 3.5” HDD to preserve personal data.





ATX Power Supply

DeskMeet includes an internal 500W 80 Plus Bronze power supply with custom length cables to save space and make cable management easier. The fan in the power supply will draw in the cool air to CPU cooler which is the best way to increase airflow and ensure DeskMeet operates at its utmost efficiency of heat dissipation.



ASROCK
90BXG4C01-A10GA0W
10 Items

Data sheet

Processor
None
Expansion
1 x Chassis Intrusion Header1 x CPU Fan Connector (4-pin)1 x Chassis/Water Pump Fan Connectors (4-pin)1 x 24 pin ATX Power Connector1 x 8 pin 12V Power Connector1 x Front Panel Header1 x USB 2.0 Headers (Support 2 USB 2.0 ports)
Wireless
-
Accessories
Quick Installation Guide2 x SATA Data Cables1 x Screws Package
Memory
None
Optical Drive
None
Warranty
3 Years
Chipset
Intel B660
LAN
GB LAN
Package Type
Retail
Additional Features
See Overview / Videos
Dimensions
8 litres168 (W) x 219.3 (D) x 218.3(H) mm (excl. Protrusions)168 (W) x 236.1 (D) x 221.6(H) mm (incl. Protrusions)
Operating System
No O/S
Memory Details
4 x DDR4 DIMM (Dual Channel)Max. 128GBSupports 3200/2933/2800/2666/2400/2133 non-ECC
Chassis
Asrock DeskMeet
Hard Drive
None
Sound
Realtek ALC897 Audio Codec
Keyboard and Mouse
No
Graphics
Supports a discrete Dual slot Graphics card up to 20cm
Tower / Small Form Factor
Small Form Factor
Supported Drives
1 x 3.5" SATA HDD2 x 2.5" SATA SSD/HDD1 x Hyper M.2 (2280) - SATA & PCIe1 x Hyper M.2 (2280) - PCIe
Front I/O
1 x USB 3.2 Gen1 Type-C2 x USB 3.2 Gen1 Type-A2 x USB 2.0 Type-A1 x Headphone/Headset Jack
Back I/O
1 x D-Sub1 x HDMI1 x DisplayPort 1.42 x USB 2.02 x USB 3.2 Gen1 Type-A1 x RJ-45 LAN PortHD Audio Jacks
Power Unit
500W 80+ Bronze
Bluetooth
-
