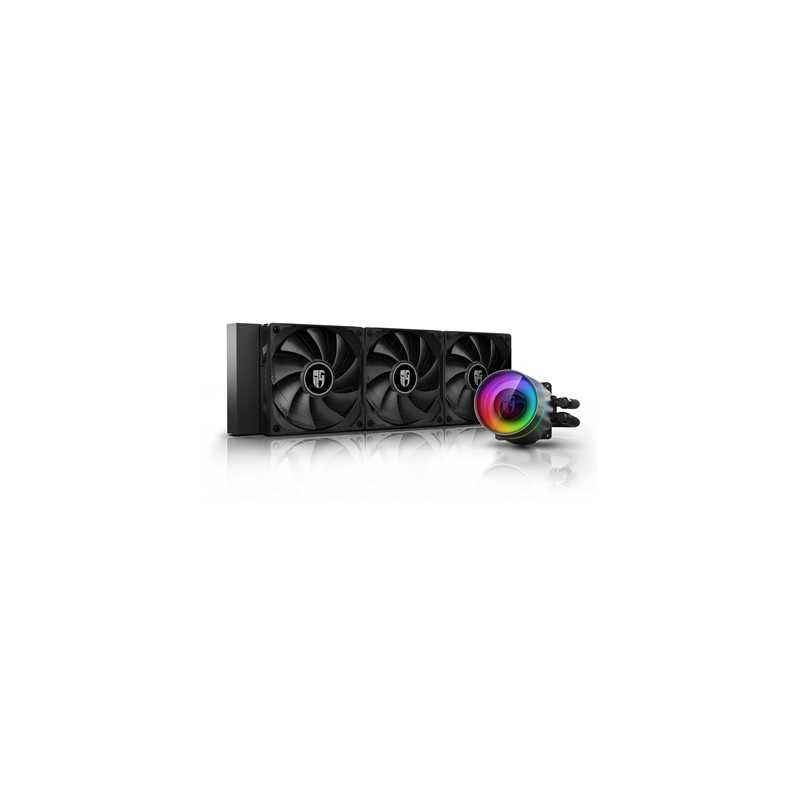

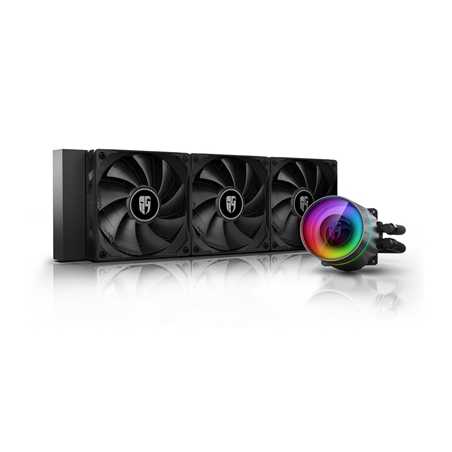

DeepCool GamerStorm CASTLE 360EX Universal Socket 360mm PWM 1800RPM ARGB LED AiO Liquid CPU Cooler with Wired ARGB Controller

CASTLE 360EX
Advanced Cooling
The CASTLE 360EX AIO liquid CPU cooler features Anti-leak tech to help keep systems safe and cool including a redesigned pump, 360mm radiator and RGB lighting support.

PROTECT WHAT’S YOURS
Equipped with patented Anti-Leak technology that helps regulate pressure buildup inside the radiator to significantly improve operational safety and prevent leakage.

POWERFUL AND QUIET
A strong 3-phase motor provides higher cooling performance with an increased flow rate while keeping noise levels low.

EFFICIENT COOLING
Designed from the inside out, the new dual-chamber pump features an optimized flow route for better heat exchange.

MORE SURFACE AREA
With 25% more skived fins on the copper cold plate, the larger surface area effectively dissipates heat.

PERFORMANCE TUNED
Specially tuned Deepcool TF120 S fans deliver the extreme cooling performance for AIO liquid coolers by maximizing both static pressure and airflow.

CUSTOMIZE YOUR LOOK
Upside-down logo? Easily change orientation by twisting off the pump face to adjust the logo. Take it to the next level with your own custom design using the included extra logo chip!

CHOOSE YOUR STYLE
Coordinate your colours by adjusting the addressable RGB lighting through popular motherboard software or through the included RGB controller.

Compatible with...
- Asus Aura Sync
- Razer Chroma RGB
- Gigabyte RGB Fusion
- MSI Mystic Light Sync
- ASROCK Polychrome Sync

Model
CASTLE 360EX

Socket Compatibility
Intel: LGA20XX / LGA1200 / 1151 / 1150 / 1155 / LGA1366
AMD: TRX4 / TR4 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1

Model Number
DP-GS-H12-CSL360EX

Pump Specifications
Dimensions: 86 x 75 x 71 mm
Speed: 2550RPM ± 10%
Noise: 17.8 dB(A)
Connector: 3-pin
Rated Voltage: 12 VDC
Rated Current: 0.2 A
Power Consumption: 2.4 W

Radiator Specifications
Dimensions: 402 x 120 x 27 mm
Material: Aluminum
Tube length: 465 mm

Fan Specifications
Dimensions: 120 x 120 x 25 mm
Speed: 500~1800 RPM ± 10%
Airflow: 64.4 CFM
Air Pressure: 2.33 mmAq
Noise: =32.1 dB(A)
Connector: 4-pin PWM
Bearing Type: Hydro Bearing
Rated Voltage: 12 VDC
Rated Current: 0.15 A
Power Consumption: 1.8 W
LED Type: Addressable RGB LED
LED Connector: 3-pin(5V-D-G)
LED Rated Voltage: 5 VDC
LED Power Consumption: 2.25 W(PUMP)

Weight
Net: 1.705 kgs
