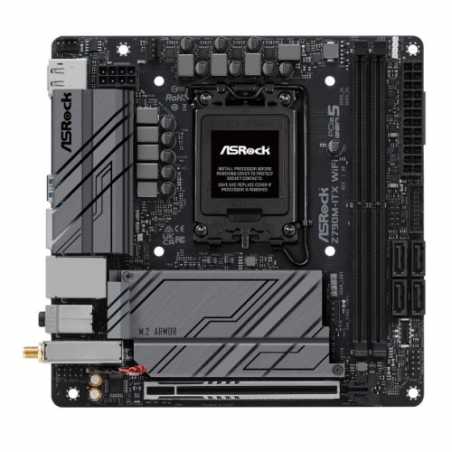

Asrock Z790M-ITX WIFI, Intel Z790, 1700, Mini ITX, 2 DDR5, HDMI, DP, eDP, Wi-Fi 6E, 2.5G & GB LAN, PCIe5, 2x M.2
search
  • Asrock Z790M-ITX WIFI, Intel Z790, 1700, Mini ITX, 2 DDR5, HDMI, DP, eDP, Wi-Fi 6E, 2.5G & GB LAN, PCIe5, 2x M.2

Asrock Z790M-ITX WIFI, Intel Z790, 1700, Mini ITX, 2 DDR5, HDMI, DP, eDP, Wi-Fi 6E, 2.5G & GB LAN, PCIe5, 2x M.2

£223.28
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock




Z790M-ITX WiFi


  • Supports 13th Gen & 12th Gen Intel® Core™ Processors
  • 7+1+1 Phase Power Design, Dr.MOS for VCore+GT
  • 2 x DDR5 DIMMs, supports up to 6800+(OC)
  • 1 PCIe 5.0 x16
  • Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
  • 1 Hyper M.2 (PCIe Gen4x4), 1 Hyper M.2 (PCIe Gen4x4 & SATA3), 4 SATA3
  • 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2x2 Type-C (Rear), 4 USB 3.2 Gen2 Type-A (Rear), 2 USB 3.2 Gen1 (Front), 3 USB 2.0 (1 Rear, 2 Front)
  • Intel® 2.5G LAN, Intel® 1G LAN
  • 802.11ax Wi-Fi 6E + Bluetooth





Optimized VRM Design
  • Dr. MOS - Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
  • 7+1+1 Power Phase Design - Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
  • 8 Layer PCB - The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!




DDR5 Memory with Protection Circuit

Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.





PCIe 5.0 + Surface-Mount Tech

Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.





Nahimic Audio
  • Audio That Matters - Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
  • Enhance Communication Quality - The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
  • Sound Tracker - The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
  • Works on any devices - Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.





Polychrome RGB

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects





High Speed M.2 Solution (PCIe Gen4 x4)

Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.





Wi-Fi 6E 802.11ax

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.





Abundant USB
  • Front USB 3.2 Gen2 Type-C - Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
  • USB 3.2 Gen2 - This motherboard has four onboard Type-A USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.




Auto Driver Installer

No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.

step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!



ASROCK
Z790M ITX WIFI

Data sheet

Wireless
802.11ax Wi-Fi 6E ModuleSupports IEEE 802.11a/b/g/n/ac/axSupports Dual-Band 2x2 with ext 6GHz band support2 antennas - 2 (Transmit) x 2 (Receive) diversity techSupports Bluetooth + High speed class IISupports MU-MIMO
RAM Speeds
Up to 6800+(OC)
Accessories
1 x User Manual1 x I/O Shield2 x SATA Data Cables2 x ASRock WiFi 2.4/5/6 GHz Antennas2 x Screws for M.2 Sockets
USB Ports Supported
1 x USB 3.2 Gen2x2 Type-C (at back)4 x USB 3.2 Gen2 Type-A (at back)2 x USB 3.2 Gen1 (at mid-board)3 x USB 2.0 (1 at back, 2 at mid-board)1 x Front Panel Type-C USB 3.2 Gen2x2 Header
Storage
4 x SATA III1 x M.2 (2280) - PCIe1 x M.2 (2280) - SATA & PCIe
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Warranty
3 Year Replacement Warranty
Motherboard Type
Desktop
Form Factor
Mini ITX
Socket
Intel 1700
Chipset
Intel Z790
DDR Type
DDR5
RAM Technology
DDR5 (Dual Channel)
RAM Slots
2 x DIMM
Maximum Memory
64GB
LAN
2.5GB LAN & GB LAN
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Back Panel I/O Ports
2 x Antenna1 x HDMI1 x DisplayPort 1.41 x Optical SPDIF Out4 x USB 3.2 Gen2 Type-A1 x USB 3.2 Gen2x2 Type-C1 x USB 2.02 x RJ-45 LAN1 x Line Out Jack1 x Microphone Input Jack
Internal I/O Connectors
1 x eDP Signal1 x RGB LED1 x Addressable LED1 x CPU/Water Pump Fan2 x Chassis Fan1 x 24 pin ATX1 x 8 pin 12V1 x Front Panel Audio1 x USB 2.01 x USB 3.2 Gen11 x Front Panel Type C USB 3.2 Gen2x2
CPU Support
Click here for CPU support
Graphics Ports
1 x HDMI1 x DisplayPort1 x eDP 1.4
Additional Features
See Overview
Graphics
Integrated Graphics**Graphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
2 x LAN
Max LAN Speed
2.5GB LAN
PCI/PCI Express
1 x PCIe 5.0 x16 (supports x16 mode)
Wi-Fi
Yes (Wi-Fi)
