- Out of stock

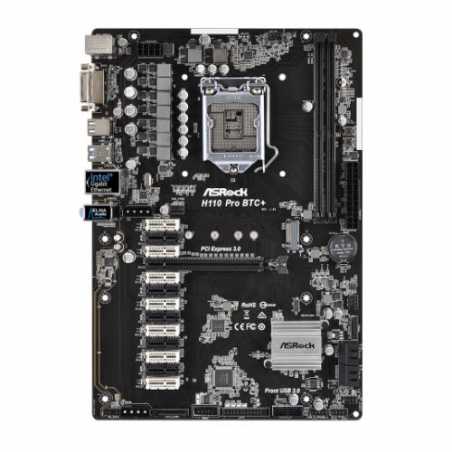

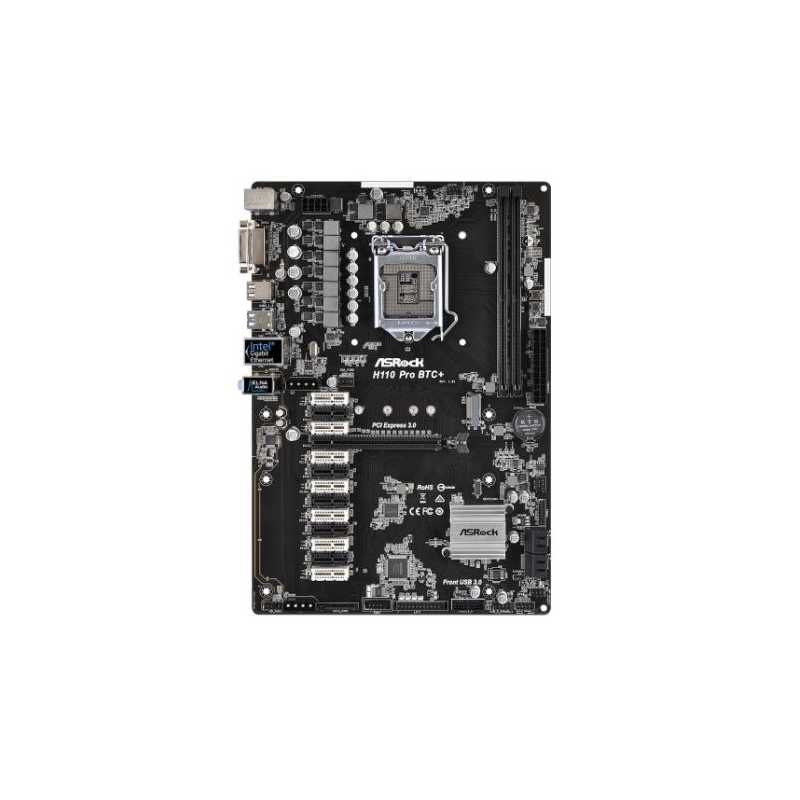

Asrock H110 PRO BTC+, Intel H110, 1151, ATX, DDR4, DVI, M.2, 12 x PCIe2.0 x1, M.2
£296.25
VAT included
- ASRock Super Alloy
- Supports 7th and 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors
- Supports DDR4 2400/2133
- 1 PCIe 3.0 x16, 12 PCIe 2.0 x1
- Graphics Output: DVI-D
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
- 4 SATA3, 1 M.2 (SATA3)
- 4 USB 3.1 Gen1 (2 Front, 2 Rear)
- Intel® Gigabit LAN
- Onboard Power On / Reset Button
Crypto Mining
This motherboard is specifically designed for mining, the revolutionary digital crypto-currency that may be used anywhere in the world. The abundant onboard PCIe slots guarantee fast Crypto mining, while the additional power connectors provide advanced system stability while mining.
2oz Copper
It comes with 2 ounces copper inner layers, using only carefully selected copper materials for PCB layers, delivering lower temperature and higher energy efficiency for better stability.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Power On / Reset Button
Power On & Off system with onboard button is a must for open frame mining.
Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
- ASRock Super Alloy
- Supports 7th and 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors
- Supports DDR4 2400/2133
- 1 PCIe 3.0 x16, 12 PCIe 2.0 x1
- Graphics Output: DVI-D
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
- 4 SATA3, 1 M.2 (SATA3)
- 4 USB 3.1 Gen1 (2 Front, 2 Rear)
- Intel® Gigabit LAN
- Onboard Power On / Reset Button
Crypto Mining
This motherboard is specifically designed for mining, the revolutionary digital crypto-currency that may be used anywhere in the world. The abundant onboard PCIe slots guarantee fast Crypto mining, while the additional power connectors provide advanced system stability while mining.
2oz Copper
It comes with 2 ounces copper inner layers, using only carefully selected copper materials for PCB layers, delivering lower temperature and higher energy efficiency for better stability.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Power On / Reset Button
Power On & Off system with onboard button is a must for open frame mining.
Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
H110 PRO BTC+
Data sheet
- .
- 1 x Front Audio
- PCI Express
- 1 x PCIe 3.0 x16 (PCIE2
1 x PCIe 3.0 x16 (PCIE2: x16 mode)12 x PCIe 2.0 x1 - Wireless
- -
- RAM Speeds
- 2400/2133 MHz
- Accessories
- Quick Installation Guide, Support CD, I/O Shield2 x SATA Data Cables1 x Screw for M.2 Socket
- USB Ports Supported
- 4 x USB 3.1 Gen1 ports (2 at back, 2 at mid-board)6 x USB 2.0 ports (4 at back, 2 at mid-board)
- Storage
- 4 x SATA III1 x M.2 Socket (2230/2242/2260/2280) - SATA*This board does not support PCIe M.2 drives, only SATA based M.2 drives
- RAID
- -
- Warranty
- 3 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- Intel 1151 - Sky/Kaby Lake
- Chipset
- Intel H110
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 32GB
- PCI
- -
- LAN
- GB LAN
- Audio
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- Back Panel I/O Ports
- 1 x PS/2 Mouse Port1 x PS/2 Keyboard Port1 x DVI-D Port4 x USB 2.0 Ports2 x USB 3.1 Gen1 Ports1 x RJ-45HD Audio Jacks
- Internal I/O Connectors
- 1 x USB 2.0 Connector1 x USB 3.1 Gen1 Connector1 x Print Port1 x COM Port1 x TPM1 x Chassis Intrusion and Speaker1 x CPU Fan2 x Chassis Fan1 x 24 pin ATX1 x 8 pin 12V2 x PCIe Power1 x SATA Power
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- 1.0900 kg
- Graphics Ports
- 1 x DVI-D
- Additional Features
- See Overview
- Graphics
- Supports Intel HD Graphics
- M.2 Slot(s)
- Yes (M.2)
- PCI/PCI Express
- 1 x PCIe 3.0 x16 (PCIE2: x16 mode)12 x PCIe 2.0 x1
