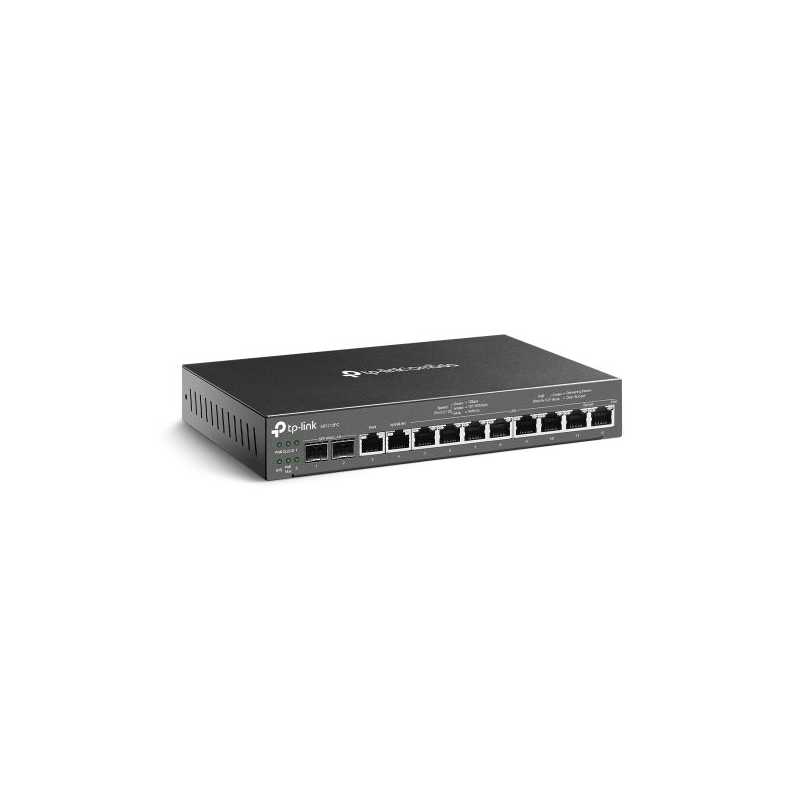

TP-LINK (ER7212PC) Omada 3-in-1 Gigabit VPN Router - Router + PoE Switch + Omada Controller, 12 Ports, Up to 4x WAN
search
  • TP-LINK (ER7212PC) Omada 3-in-1 Gigabit VPN Router - Router + PoE Switch + Omada Controller, 12 Ports, Up to 4x WAN

TP-LINK (ER7212PC) Omada 3-in-1 Gigabit VPN Router - Router + PoE Switch + Omada Controller, 12 Ports, Up to 4x WAN

£197.15
VAT included
Stock status: Very low
Last 13 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%




Omada 3-in-1 Gigabit VPN Router


  • 3-in-1 Router: Integrates router, PoE switch, and Omada controller altogether.
  • Professional Hardware: Dual-Core 1.2 GHz CPU with 1GB DDR3 memory provides stellar performance for up to 12x Gigabit ports.
  • Up to 4x WAN Ethernet Ports: Equipped with 2x Gigabit SFP WAN/LAN ports, 1x Gigabit RJ45 WAN port, and 1x Gigabit RJ45 WAN/LAN port.
  • 110W PoE Budget: 8x 802.3at/af-compliant PoE+ RJ45 LAN ports yield a total power supply of 110W*.
  • Centralized Management: Cloud access and the Omada app offer convenience and easy management.
  • Highly Secure VPN: Supports IPsec VPN, OpenVPN, and L2TP/PPTP VPN connections.
  • Easy Installation: Fanless and compact design for desktop and wall mounting.



*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

ER7212PC can work as a VPN client and can connect with up to 10 VPN servers



ER7212PC
13 Items

Data sheet

Warranty
Limited Lifetime
Package Type
Retail
Dimensions
(WxDxH) 226 x 131 x 35 mm
Type
VPN Router
Power Supply
53.5VDC/2.43A Adapter
Interface(s)
2 x Gigabit SFP WAN/LAN ports1 x Gigabit WAN port1 x Gigabit LAN/WAN port8 x Gigabit LAN ports
Package Contents
ER7212PCPower AdapterPower CordQuick Installation Guide
Button(s)
Reset Button
Connectivity
Wired
Max Wired Transfer Rate
10/100/1000 Mbps
Management
Omada AppCloud AccessService: Dynamic DNS (Dyndns, No-IP)Maintenance:Web Management InterfaceRemote ManagementExport & Import ConfigurationSNMP v1/v2c/v3Syslog SupportManagement Features:Automatic Device DiscoveryIntelligent Network MonitoringAbnormal Eve
Environment
Operating Temperature: 0–45°C (32–1113°F)Storage Temperature: -40–70°C (-40–158°F)Operating Humidity: 10–90% RH non-condensingStorage Humidity: 5–90% RH non-condensing
Security
Filtering:URL FilteringAttack Defense:TCP/UDP/ICMP Flood DefenseBlock TCP Scan (Stealth FIN/Xmas/Null)Block Ping from WANAccess Control:Source/Destination IP Based Access Control
Advanced Features
Advanced Routing:Static RoutingPolicy RoutingBandwidth Control:IP/Port-based Bandwidth ControlLoad Balance:Intelligent Load BalanceApplication Optimized RoutingLink BackupOnline DetectionNAT:Multi-Net NATVirtual ServerNAT-DMZFTP/H.323/SIP/IPSec/PPTP ALGUP
DHCP
DHCP ServerDHCP Address ReservationMulti-IP InterfacesMulti-Net DHCP
Dynamic DNS
Yes
VPN Support
IPsec VPN Throughput (AES256):168.5 MbpsOpenVPN:34 MbpsL2TP VPN Throughput:Unencrypted: 845.3 MbpsEncrypted: 333.2 MbpsPPTP VPN Throughput:Unencrypted: 1012.6 MbpsEncrypted: 401.4 Mbps
USB Application
-
IEEE Standards & Protocols
IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1qTCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP
