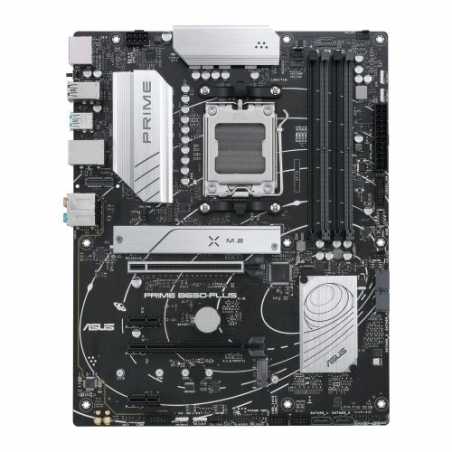

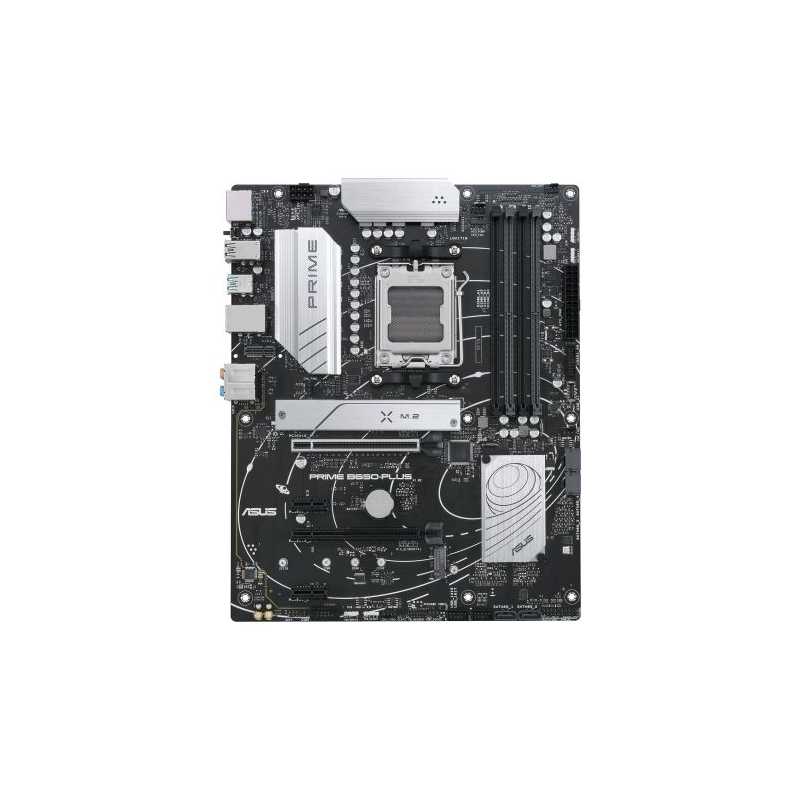

  • Asus PRIME B650-PLUS, AMD B650, AM5, ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe4, 2x M.2

Asus PRIME B650-PLUS, AMD B650, AM5, ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe4, 2x M.2

£181.36
VAT included
Stock status: Very high
293 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%




AMD B650 ATX motherboard with DDR5, PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, DisplayPort, HDMI®, SATA 6 Gbps, USB 3.2 Gen 2 Type-C®, front USB 3.2 Gen 1 Type-C®, BIOS FlashBack™, USB4® Support and Arua Sync support


  • AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors
  • Ultrafast Connectivity: M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 Type-C®, front USB 3.2 Gen 1 Type-C®, USB4® Support
  • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
  • Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware






Prime

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650-PLUS provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.







Flexibility

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.


CPU Performance Boost
AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.


All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.


Flexible Air- and Liquid-Cooling Controls
ASUS Fan Xpert 2+ software provides comprehensive control over fans and all-in-one (AiO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans, AiO coolers can also be controlled via the UEFI BIOS.


Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.







Cooling

Prime B650 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.


M.2 Heatsink
An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws.


VRM Heatsinks and Thermal Pads
VRM heatsinks and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.


Cooler by Design
Prime B650 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.
  • Multiple Temperature Sources - Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
  • AIO Pump Header - A dedicated PWM/DC header for self-contained water-cooling setups.
  • Smart Protection - A dedicated integrated circuit protects each fan header from overheating and overcurrent.
  • 4-Pin PWM/DC Fan - Each onboard header supports auto-detection of PWM or DC fans.






Performance

The PRIME B650 series is built to handle the high core counts and bandwidth demands of AMD processors. ASUS B650 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.


Robust Power Design
Stable power is essential to extract every last bit of performance out of AMD processors. The PRIME B650-PLUS is geared to cater to the demands of these high-core-count CPUs.


DDR5 Performance Enhancement
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME B650-PLUS, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

For those who want to fly past stock DDR5 speeds, the PRIME B650-PLUS is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.


ASUS OptiMem II
Revisions to the motherboard’s trace routing provide the latest processors with unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.


PCIe 5.0 M.2 Support
PRIME B650-PLUS offers a total of two M.2 slots, the first one supports data-transfer speeds of up to 128Gbps via PCIe 5.0, enabling quicker boot-up and app load times with OS or application drives.


PCIe 4.0 Slot
Prime B650 motherboards offer PCIe 4.0 Slot connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.







Customisation

The PRIME B650 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.


Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.
  • Audio Shielding - Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.
  • Dedicated Audio PCB Layers - Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.
  • Premium Audio Capacitors - Provides warm, natural, and immersive sound with exceptional clarity and fidelity.

Outshine the Competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.


Addressable Gen 2 Headers
Three addressable Gen 2 headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.


Armoury Crate
Within a single intuitive interface, Armoury Crate offers easily customized Aura Sync RGB settings for every compatible device in your arsenal , plus controls for an ever-growing family of ASUS products, including keyboard and mouse preferences. Armoury Crate also integrates product registration and a news feed so that you never miss updates of interest to the ASUS community.


Q-LED Core
The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.


BIOS FlashBack™
BIOS FlashBack™ is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS FlashBack™ port and press the button. Updates can even be performed without a memory or a CPU installed.


SafeSlot Core+
SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.



ASUS
90MB1BS0-M0EAY0
293 Items

Data sheet

.
1 x Aura RGB1 x Clear CMOS1 x COM Port1 x Front Panel Audio1 x SPI TPM (14-1pin)1 x 20-3 pin System Panel1 x Thunderbolt (USB4)
Wireless
-
RAM Speeds
Up to 6400+(OC)
Accessories
2 x SATA 6Gb/s cables 1 x I/O Shield 1 x M.2 Rubber Package1 x Screw package for M.2 SSD1 x User guide
USB Ports Supported
1 x USB 3.2 Gen2 Type-C (at back)3 x USB 3.2 Gen2 Type-A (at back)4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)1 x Front USB 3.2 Gen1 Type-C connector
Storage
4 x SATA III1 x M.2 (2242/2260/2280/22110) - PCIe1 x M.2 (2242/2260/2280/22110) - PCIe
RAID
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
Warranty
3 Years
Motherboard Type
Desktop
Form Factor
ATX
Socket
AMD AM5
Chipset
AMD B650
DDR Type
DDR5
RAM Technology
DDR5 (Dual Channel)
RAM Slots
4 x DIMM
Maximum Memory
128GB
LAN
2.5GB LAN
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Back Panel I/O Ports
4 x USB 3.2 Gen2 (3 Type-A, 1 Type-C)2 x USB 3.2 Gen1 Type-A2 x USB 2.01 x DisplayPort1 x HDMI1 x Vertical M.21 x Realtek 2.5Gb Ethernet5 x Audio jacks 1 x Optical S/PDIF out1 x BIOS FlashBack button
Internal I/O Connectors
1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan1 x 4-pin AIO Pump 3 x 4-pin Chassis Fan1 x 24-pin Main1 x 8-pin +12V2 x M.2 (Key M) 4 x SATA 6Gb/s1 x USB 3.2 Gen1 Type-C1 x USB 3.2 Gen12 x USB 2.03 x Addressable Gen2
CPU Support
Click here for CPU support
Package Type
Retail
Graphics Ports
1 x HDMI1 x DisplayPort
Additional Features
See Overview
Graphics
Integrated Graphics**Graphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
2.5GB LAN
PCI/PCI Express
1 x PCIe 4.0 x16 (supports x16 mode)1 x PCIe 4.0 x16 (supports x4 mode)2 x PCIe 4.0 x1
