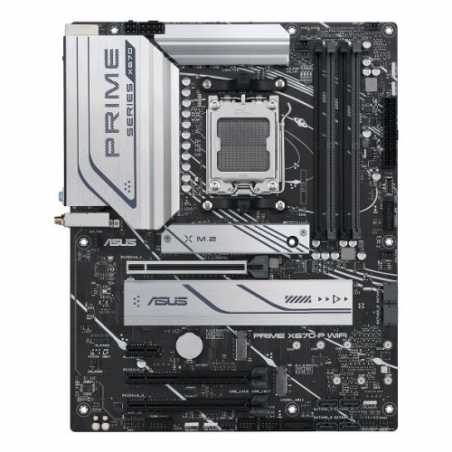

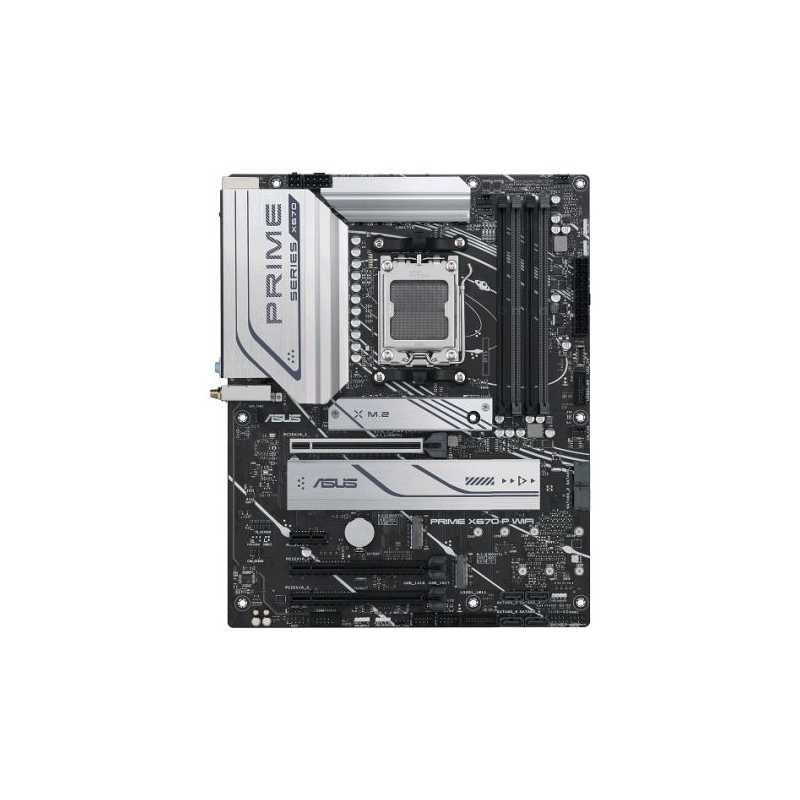

Asus PRIME X670-P WIFI, AMD X670, AM5, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6, 2.5G LAN, PCIe4, 3x M.2

Data sheet

.

3 x Addressable Gen22 x Aura RGB1 x Clear CMOS1 x COM Port1 x Front Panel Audio (AAFP) 1 x S/PDIF Out1 x SPI TPM (14-1pin) 1 x 20-5 pin System Panel1 x Thunderbolt

Wireless

Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2

RAM Speeds

Up to 6400+(OC)

Accessories

2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x Rubber Package for M.2 2 x Screw Packages for M.2 SSD 1 x User guide

USB Ports Supported

1 x USB 3.2 Gen2x2 Type-C (at back)3 x USB 3.2 Gen2 Type-A (at back)8 x USB 3.2 Gen1 Type-A (4 at back, 4 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)1 x Front USB 3.2 Gen1 Type-C connector

Storage

6 x SATA III1 x M.2 (2242/2260/2280) - PCIe1 x M.2 (2242/2260/2280/22110) - PCIe1 x M.2 (2242/2260/2280) - PCIe

RAID

AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10

Warranty

3 Years

Motherboard Type

Desktop

Form Factor

ATX

Socket

AMD AM5

Chipset

AMD X670

DDR Type

DDR5

RAM Technology

DDR5 (Dual Channel)

RAM Slots

4 x DIMM

Maximum Memory

128GB

LAN

2.5GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

Back Panel I/O Ports

1 x USB 3.2 Gen2x2 Type-C3 x USB 3.2 Gen2 Type-A4 x USB 3.2 Gen1 Type-A2 x USB 2.0 1 x DisplayPort 1 x HDMI1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet3 x Audio jacks  1 x BIOS FlashBack button  1 x PS/2 Keyboard/Mouse combo

Internal I/O Connectors

1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan1 x 4-pin AIO Pump3 x 4-pin Chassis Fan1 x 24-pin Main1 x 8-pin +12V1 x 4-pin +12V3 x M.2 (Key M) 6 x SATA 6Gb/s1 x USB 3.2 Gen1 Type-C2 x USB 3.2 Gen12 x USB 2.0

CPU Support

Click here for CPU support

Package Type

Retail

Graphics Ports

1 x HDMI1 x DisplayPort

Additional Features

See Overview

Graphics

Integrated Graphics**Graphics specifications may vary between CPU types

M.2 Slot(s)

Yes (M.2)

No. LAN Ports

1 x LAN

Max LAN Speed

2.5GB LAN

PCI/PCI Express

1 x PCIe 4.0 x16 (supports x16 mode) 2 x PCIe 4.0 x16 (support x4 mode) 1 x PCIe 3.0 x1

Wi-Fi

Yes (Wi-Fi)
