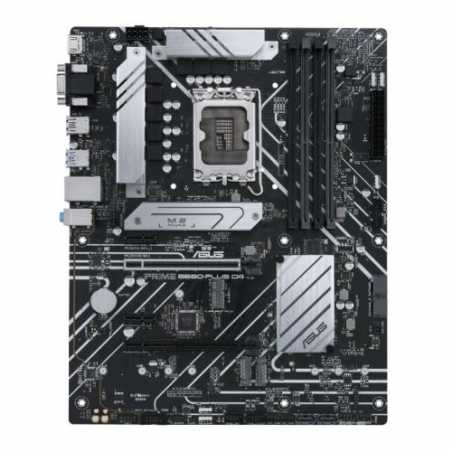

Asus PRIME B660-PLUS D4, Intel B660, 1700, ATX, 4 DDR4, VGA, HDMI, DP, 2.5GB LAN, PCIe4, 3x M.2
£138.99
VAT included
Delivered within 1-2 days.
Intel® B660 (LGA 1700) ATX motherboard with 8 power stages, PCIe 4.0 slots, three M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, HDMI®, D-Sub, rear USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Aura Sync
- Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
- Ultrafast connectivity: PCIe 4.0 slots, three M.2 slots, rear USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Realtek 2.5Gb Ethernet and Thunderbolt™ 4 support
- Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
Flexibility
Comprehensive controls form the foundation of the ASUS Prime series. The Prime B660 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Cooling
Prime B660 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Performance
Prime B660 series are built to handle the additional cores and increased bandwidth of 12th Generation Intel® processors. ASUS B660 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Customization
Prime B660 series add the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
Click here for full details
Click here for full details
90MB18X0-M1EAY0
35 Items
Data sheet
- .
- 1 x Clear CMOS1 x COM Port1 x Front Panel Audio1 x M.2 (Key E)1 x S/PDIF Out1 x SPI TPM (14-1pin)1 x 20-3 pin System Panel1 x Thunderbolt
- Wireless
- -
- RAM Speeds
- Up to 5000(OC)
- Accessories
- 2 x SATA 6Gb/s cables 1 x I/O Shield 1 x M.2 Rubber Package2 x M.2 SSD screw packages1 x M.2 Key E screw package1 x Support DVD1 x User guide
- USB Ports Supported
- 1 x USB 3.2 Gen2x2 Type-C (at back)2 x USB 3.2 Gen2 Type-A (at back)3 x USB 3.2 Gen1 Type-A (1 at back, 2 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)1 x USB 3.2 Gen1 Type-C front panel connector
- Storage
- 4 x SATA III1 x M.2 (2242/2260/2280) - PCIe1 x M.2 (2242/2260/2280/22110) - PCIe1 x M.2 (2242/2260/2280) - PCIe
- RAID
- Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- Intel 1700
- Chipset
- Intel B660
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 128GB
- LAN
- 2.5GB LAN
- Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- Back Panel I/O Ports
- 1 x USB 3.2 Gen2x2 Type-C2 x USB 3.2 Gen2 Type-A1 x USB 3.2 Gen1 Type-A2 x USB 2.01 x DisplayPort1 x D-Sub1 x HDMI1 x Realtek 2.5Gb Ethernet3 x Audio jacks
- Internal I/O Connectors
- 1 x 4-pin CPU Fan1 x 4-pin AIO Pump3 x 4-pin Chassis Fan1 x 24-pin Main1 x 8-pin +12V3 x M.2 (Key M) 4 x SATA 6Gb/s1 x USB 3.2 Gen1 Type-C 1 x USB 3.2 Gen12 x USB 2.03 x Addressable Gen22 x AURA RGB
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- 1.2000 kg
- Graphics Ports
- 1 x VGA1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated Graphics**Graphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 2.5GB LAN
- PCI/PCI Express
- 1 x PCIe 4.0 x161 x PCIe 3.0 x162 x PCIe 3.0 x1
