- Out of stock

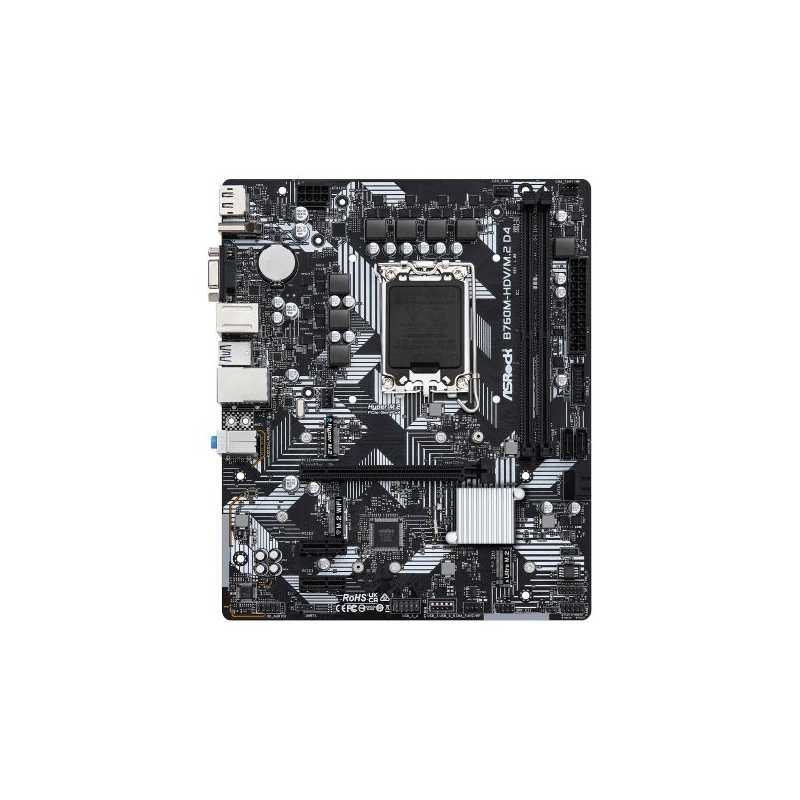

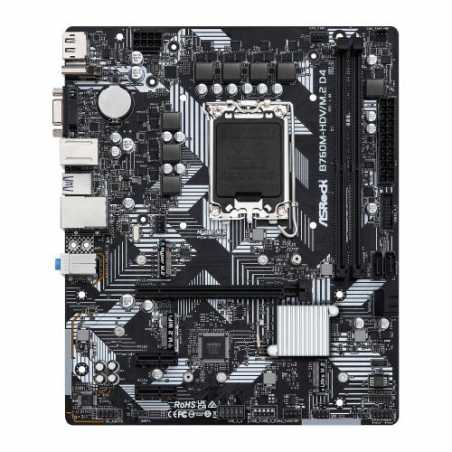

Asrock B760M-HDV/M.2 D4, Intel B760, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, GB LAN, PCIe4, 2x M.2
£98.31
VAT included
B760M-HDV/M.2 D4
- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 5+1+1 Power Phase
- Supports DDR4 5333MHz (OC)
- 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort, D-Sub
- Realtek ALC887/897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4),
- 1 Ultra M.2 (PCIe Gen3x4 & SATA)
- 1 USB 3.2 Gen1 Type-C (Rear),
- 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
- 5 USB 2.0 (2 Rear, 3 Front)
- Realtek 1G LAN
- Supports ASRock Auto Driver Installer
5+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
B760MHDV M.2 D4
Data sheet
- Wireless
- -
- RAM Speeds
- Up to 5333+(OC)
- Accessories
- 1 x User Manual1 x I/O Shield2 x SATA Data Cables3 x Screws for M.2 Sockets
- USB Ports Supported
- 1 x USB 3.2 Gen1 Type-C (at back)5 x USB 3.2 Gen1 Type-A (3 at back, 2 at mid-board)5 x USB 2.0 (2 at back, 3 at mid-board)
- Storage
- 4 x SATA III1 x M.2 (2260/2280) - PCIe1 x M.2 (2260/2280) - SATA & PCIe
- RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Warranty
- 2 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- Intel 1700
- Chipset
- Intel B760
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 64GB
- LAN
- GB LAN
- Audio
- 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
- Back Panel I/O Ports
- 2 x Antenna Mounting Points1 x PS/2 Mouse/Keyboard1 x D-Sub1 x HDMI1 x DisplayPort 1.41 x USB 3.2 Gen1 Type-C3 x USB 3.2 Gen1 Type-A2 x USB 2.01 x RJ-45 LANHD Audio Jacks
- Internal I/O Connectors
- 1 x SPI TPM1 x Chassis Intrusion and Speaker1 x CPU Fan1 x CPU/Water Pump Fan2 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x Front Panel Audio2 x USB 2.01 x USB 3.2 Gen1
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 1 x VGA1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated Graphics**Graphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- PCI/PCI Express
- 1 x PCIe 4.0 x16 (supports x16 mode)2 x PCIe 3.0 x1
