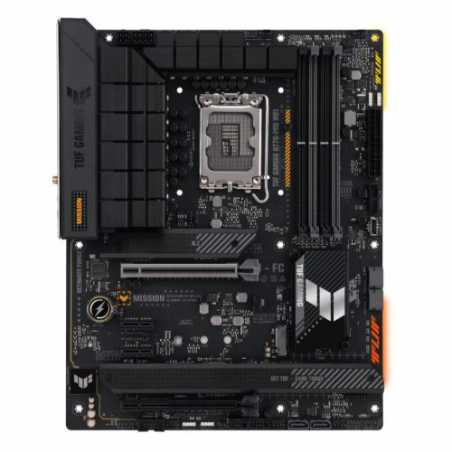

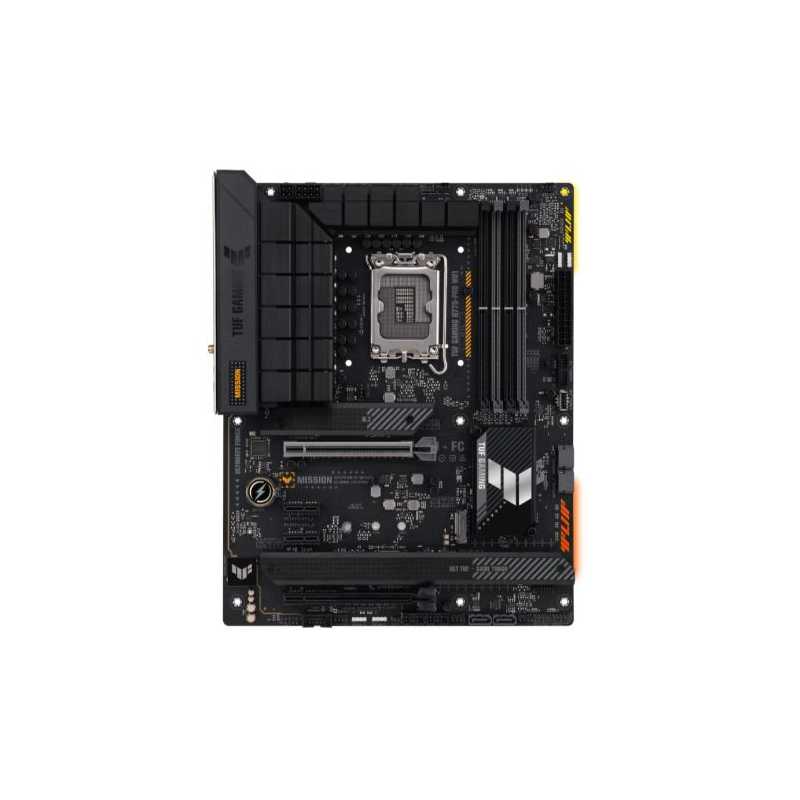

Asus TUF GAMING H770-PRO WIFI, Intel H770, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6, 2.5G LAN, PCIe5, 4x M.2, RGB
search
  • Asus TUF GAMING H770-PRO WIFI, Intel H770, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6, 2.5G LAN, PCIe5, 4x M.2, RGB

Asus TUF GAMING H770-PRO WIFI, Intel H770, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6, 2.5G LAN, PCIe5, 4x M.2, RGB

£246.54
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock




TUF GAMING H770-PRO WIFI takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability.



Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.



  • 14+1 DrMOS power stages with enlarged VRM heatsinks
  • PCIe® 5.0 for graphics cards
  • DDR5 memory module support
  • USB 3.2 Gen 2x2 Type-C® at rear I/O panel
  • Intel® 2.5 Gb Ethernet
  • WiFi 6
  • Two-Way AI Noise Cancelation




Intelligent Control

The TUF GAMING H770 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.




Rock-Solid Performance

With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR5 memory and PCIe 4.0 storage, the TUF GAMING H770-PRO WIFI is the perfect foundation for your next Intel battle rig.




Easy PC DIY

The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 4, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.




Immersive Gaming

TUF GAMING H770 motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.





                                             ** Click here for full product details **
ASUS
90MB1D50-M0EAY0

Data sheet

.
3 x Addressable Gen21 x Aura RGB1 x Clear CMOS1 x COM Port1 x Front Panel Audio1 x 20-3 pin System Panel1 x Thunderbolt (USB4)
Wireless
Wi-Fi 62x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)Supports 2.4/5GHz frequency bandBluetooth v5.2
RAM Speeds
Up to 7200(OC)
Accessories
2 x SATA 6Gb/s cables1 x ASUS Wi-Fi moving antenna1 x TUF GAMING sticker2 x M.2 Rubber Packages2 x Screw package for M.2 SSD1 x TUF Certification card1 x User guide
USB Ports Supported
1 x USB 3.2 Gen2x2 Type-C (at back)2 x USB 3.2 Gen2 Type-A (at back)6 x USB 3.2 Gen1 Type-A (4 at back, 2 at mid-board)4 x USB 2.0 (at mid-board)1 x Front Panel Type-C USB 3.2 Gen1 Header
Storage
4 x SATA III1 x M.2 (2242/2260/2280) - PCIe1 x M.2 (2242/2260/2280) - PCIe1 x M.2 (2242/2260/2280/22110) - PCIe1 x M.2 (2242/2260/2280) - SATA & PCIe
RAID
Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
Warranty
3 Years
Motherboard Type
Desktop
Form Factor
ATX
Socket
Intel 1700
Chipset
Intel H770
DDR Type
DDR5
RAM Technology
DDR5 (Dual Channel)
RAM Slots
4 x DIMM
Maximum Memory
128GB
LAN
2.5GB LAN
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Back Panel I/O Ports
1 x USB 3.2 Gen2x2 Type-C2 x USB 3.2 Gen2 Type-A4 x USB 3.2 Gen1 Type-A1 x DisplayPort1 x HDMI1 x Wi-Fi Module1 x Intel 2.5Gb Ethernet5 x Audio jacks1 x Optical S/PDIF out
Internal I/O Connectors
1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan1 x 4-pin AIO Pump4 x 4-pin Chassis Fan1 x 24-pin Main 1 x 8-pin +12V 1 x 4-pin +12V4 x M.2 (Key M)4 x SATA 6Gb/s1 x USB 3.2 Gen1 Type-C1 x USB 3.2 Gen12 x USB 2.0
CPU Support
Click here for CPU support
Package Type
Retail
Graphics Ports
1 x HDMI1 x DisplayPort
Additional Features
See Overview
Graphics
Integrated Graphics**Graphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
2.5GB LAN
RGB Lighting
Out of the box RGB lighting
PCI/PCI Express
1 x PCIe 5.0 x161 x PCIe 4.0 x16 (supports x4 mode)2 x PCIe 3.0 x1
Wi-Fi
Yes (Wi-Fi)
