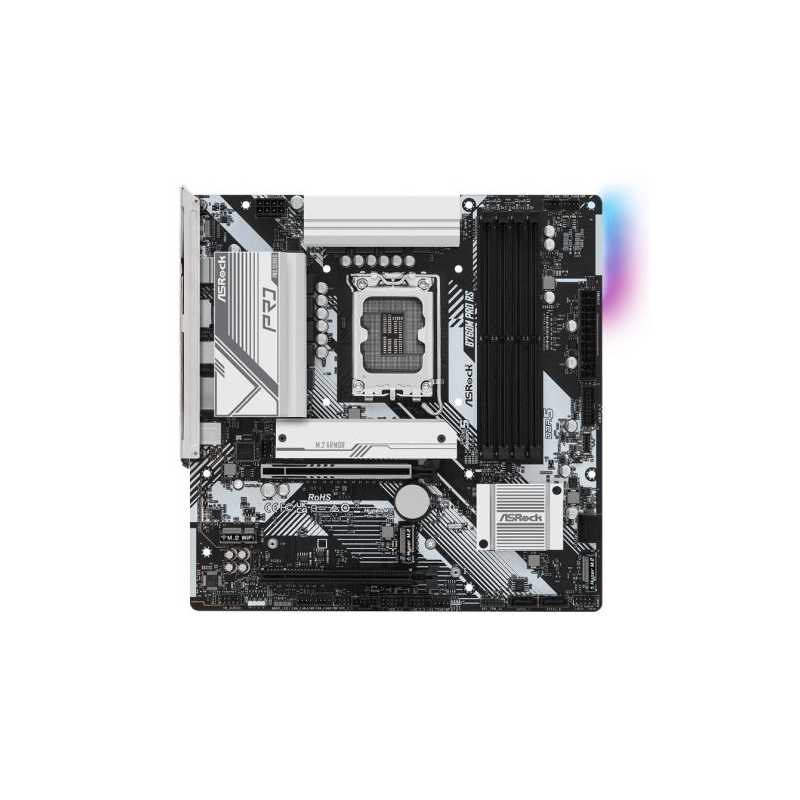

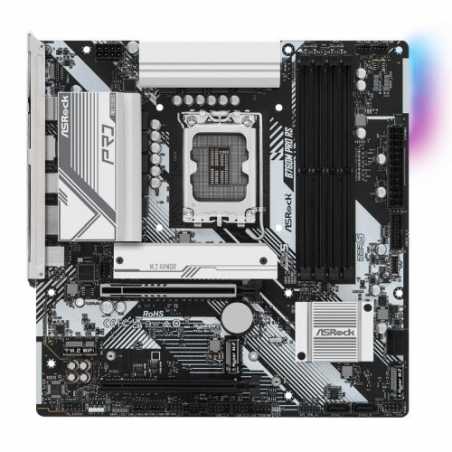

Asrock B760M PRO RS, Intel B760, 1700, Micro ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2, RGB
£132.21
VAT included
Delivered within 1-2 days.
Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.
- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 7+1+1 Power Phase, Dr.MOS for VCore+GT
- Supports DDR5 7200MHz (OC)
- 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
- 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front), 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)
- Dragon 2.5G LAN
- Supports ASRock Auto Driver Installer
Optimized VRM Design
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
7+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
6 Layer PCB
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
Nahimic Audio
High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Front USB 3.2 Gen1 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
Auto Driver Installer
Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
DDR5 Memory with Protection Circuit
Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.
PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
Reinforced Steel Slot [PCIe 5.0 Version]
The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
- Extra anchor points
- Stronger latch
- Ensure signal stability
- Make sure heavy graphics cards to be well-installed.
Nahimic Audio
Audio That Matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue. Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
Polychrome RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
Auto Driver Installer
Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
Pre-Installed IO Shield
ASRock strives offer only the cutting edge technology with the most user-friendly design. The pre-installed IO Shield design makes motherboard to be well-installed in the chassis precisely for preventing any interferences and speed up the set-up process.
ASRock strives offer only the cutting edge technology with the most user-friendly design. The pre-installed IO Shield design makes motherboard to be well-installed in the chassis precisely for preventing any interferences and speed up the set-up process.
B760 PRO RS
7 Items
Data sheet
- .
- 1 x USB 3.2 Gen11 x Front Panel Type C USB 3.2 Gen1
- Wireless
- -
- RAM Speeds
- Up to 7200+(OC)
- Accessories
- 1 x User Manual2 x SATA Data Cables4 x Screws for M.2 Sockets1 x Standoff for M.2 Socket
- USB Ports Supported
- 1 x USB 3.2 Gen1 Type-C (at back)5 x USB 3.2 Gen1 (3 at back, 2 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)1 x Front Panel Type-C USB 3.2 Gen1 Header
- Storage
- 4 x SATA III1 x M.2 (2242/2260/2280) - PCIe1 x M.2 (2280) - PCIe1 x M.2 (2280) - PCIe
- RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Warranty
- 2 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- Intel 1700
- Chipset
- Intel B760
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 128GB
- Multi-GPU Support
- Supports AMD CrossFire
- LAN
- 2.5GB LAN
- Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Back Panel I/O Ports
- 2 x Antenna Mounting Points1 x PS/2 Mouse/Keyboard Port1 x HDMI Port1 x DisplayPort 1.41 x USB 3.2 Gen1 Type-C Port3 x USB 3.2 Gen1 Type-A Ports2 x USB 2.0 Ports1 x RJ-45 LAN PortHD Audio Jacks
- Internal I/O Connectors
- 1 x SPI TPM1 x Chassis Intrusion and Speaker1 x RGB LED3 x Addressable LED1 x CPU Fan1 x CPU/Water Pump Fan4 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x Front Panel Audio1 x Thunderbolt AIC2 x USB 2.0
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated Graphics**Graphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 2.5GB LAN
- RGB Lighting
- Out of the box RGB lighting
- PCI/PCI Express
- 1 x PCIe 5.0 x16 (supports x16 mode)1 x PCIe 3.0 x16
