- Out of stock

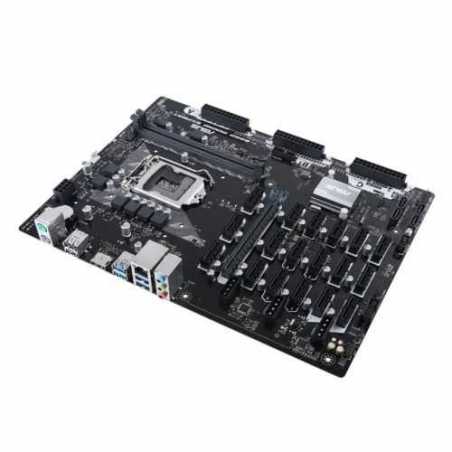

Asus B250 MINING EXPERT, Intel B250, 1151, ATX, DDR4, 19 PCIe, 3 x 24-pin ATX Power
£176.24
VAT included
World’s 1st mining board with 19x PCIe slots
Ready for ultimate mining support
Triple-ATX12V Power Delivery
Separating 19x PCIe slots into 3 groups with dedicated 24-pin, B250 MINING EXPERT can provide specific power supply with no damage of unstable power to every 6-7 GPU that plug in the board. Just turn on your PSUs and click the power button, it’s done!
PCIe Slot State Detection
Once miners fish the graphic cards installation and boot up the system, POST UI (power on in-screen image) will indicate the status of each GPU (Working / Error / None). Miners can easily discover and deal with problems
Voltage-stabilization Capacitors
Equipped with 19 capacitors, B250 MINING EXPERT can help make the voltage that comes from power supply units steadier. These capacitors protect your mining system from unsteady-voltage damage that comes from inferior power supply units.
Money Saving
Compare with current 12-slot & 6-slot mining board for multi-GPU mining system setup, B250 MINING EXPERT assists miners in saving lots of the cost of component purchasing
Higher Hash Rate
With 19 slots, B250 MINING EXPERT can provide 19 graphic cards for mining, which means miners can get higher hash rate* for mining.
Better ROI
The more it costs to get every one MH (Mega Hash), the more miners have to pay for mining. B250 MINING EXPERT helps to save up to $1.83 USD* (compared to 6-card motherboards) for miners to get every one MH.
Description
Specification
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: 1151 - Sky Lake / Kaby Lake
- Chipset: Intel B250
- #Hide#DDR Type: DDR4
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 2 x DIMM
- RAM Speeds: 2400/2133 MHz
- Maximum Memory: 32GB
- Graphics: Supports Intel HD Graphics
- Graphics Ports: 1 x HDMI
- Multi-GPU Support: -
- PCI Express: 1 x PCIe x16 slot (@ x16 mode)
18 x PCIe x1 slots - PCI: -
- Storage: 4 x SATA III
- Wireless: -
- LAN: GB LAN
- Audio: Realtek ALC887 8-channel high definition audio CODEC
- USB Ports Supported: "6 x USB 3.1 Gen 1 ports (2 at mid-board, 4 at back)
4 x USB 2.0 ports (2 at mid-board, 2 at back)" - Back Panel I/O Ports: 1 x PS/2 keyboard port
1 x PS/2 mouse port
4 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI port
1 x LAN (RJ-45) port
3 x Audio jacks support 8-channel audio output - Internal I/O Connectors: 1 x USB 2.0 connectors
1 x USB 3.1 Gen 1 connectors
4 x SATA 6.0Gb/s
1 x CPU Fan
1 x Chassis Fan
1 x COM
1 x Front audio
1 x S/PDIF Out
3 x 24-pin EATX
3 x 4-Pin AUXPWR
1 x 8-pin EATX 12V
1 x CLRTC
1 x System Panel - CPU Support: Click here for CPU support
- Accessories: 2 x Serial ATA 6.0Gb/s cables
1 x I/O shield
1 x Support DVD
1 x Users manual - Package Type: Retail
- Additional Features: See Overview
- Package Weight: 0.9990 kg
- Warranty: 3 Years
90MB0VY0-M0EAY0
Data sheet
- PCI Express
- 1 x PCIe x16 slot (@ x16 mode), 18 x PCIe x1 slots
- Wireless
- -
- RAM Speeds
- 2400/2133 MHz
- Accessories
- 2 x Serial ATA 6.0Gb/s cables, 1 x I/O shield, 1 x Support DVD, 1 x Users manual
- USB Ports Supported
- "6 x USB 3.1 Gen 1 ports (2 at mid-board, 4 at back), 4 x USB 2.0 ports (2 at mid-board, 2 at back)"
- Storage
- 4 x SATA III
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- 1151 - Sky Lake / Kaby Lake
- Chipset
- Intel B250
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 32GB
- Multi-GPU Support
- -
- PCI
- -
- LAN
- GB LAN
- Audio
- Realtek ALC887 8-channel high definition audio CODEC
- Back Panel I/O Ports
- 1 x PS/2 keyboard port, 1 x PS/2 mouse port, 4 x USB 3.1 Gen 1 ports, 2 x USB 2.0/1.1 ports, 1 x HDMI port, 1 x LAN (RJ-45) port, 3 x Audio jacks support 8-channel audio output
- Internal I/O Connectors
- 1 x USB 2.0 connectors, 1 x USB 3.1 Gen 1 connectors , 4 x SATA 6.0Gb/s, 1 x CPU Fan, 1 x Chassis Fan, 1 x COM, 1 x Front audio, 1 x S/PDIF Out, 3 x 24-pin EATX, 3 x 4-Pin AUXPWR, 1 x 8-pin EATX 12V, 1 x CLRTC, 1 x System Panel
- CPU Support
- See manufacturers link (next to product images)
- Package Type
- Retail
- Package Weight
- 0.9990 kg
- Graphics Ports
- 1 x HDMI
- Additional Features
- See Overview
- Graphics
- Supports Intel HD Graphics
