- Out of stock

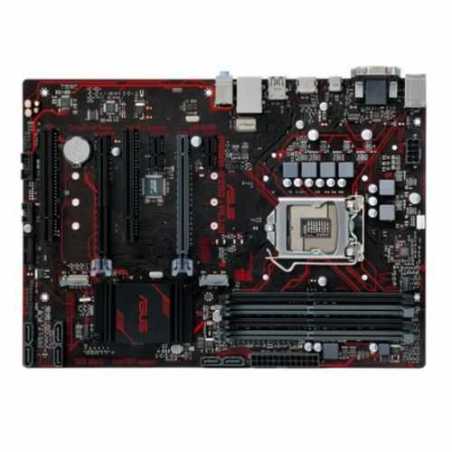

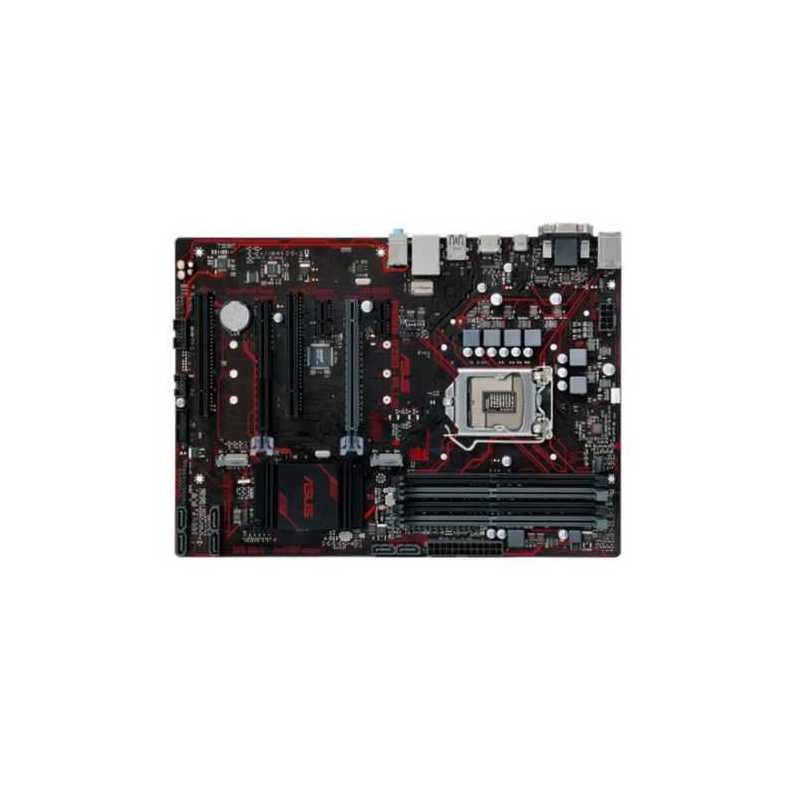

Asus PRIME B250-PLUS, Intel B250, 1151, ATX, DDR4, CrossFire, VGA, DVI, HDMI, M.2
£93.84
VAT included
Intel LGA-1151 ATX motherboard with LED lighting, DDR4 2400MHz, dual M.2, Intel Optane memory ready, HDMI, SATA 6Gb/s, USB 3.0
- 5X Protection III: Multiple hardware safeguards for all-round protection
- LED illumination: Lighting control for both PCIe slot and audio trace paths
- Dual native M.2: Lightning-fast storage speeds
- USB Type-C: Convenient reversible connectivity
- Intel® Optane™ memory ready: Exploit the latest high-speed storage technology
Prime
ASUS Prime is the next evolution of the ASUS motherboard, born of a pedigree that stretches back to 1989. Our team of world-class engineers are passionate about empowering everyone to enjoy the benefits of customization and tuning, and the driving force behind the development of Prime is to make advanced enthusiast controls easily accessible — maximizing performance, stability and compatibility for the very best DIY PC experiences. Simply stated: it's time for Prime.
Reliable Stability and Compatibility
______________________________________________________________
Built to Last
ASUS is the world's foremost motherboard manufacturer, renowned for our unique Design Thinking approach. Our exhaustive testing exceeds industry standards, supported by high-quality components for exceptional real-world protection. Our motherboards are proven to be compatible with more than 1,000 components and devices, and each new model undergoes a minimum of 8,000 hours of strict validation. ASUS gives you the peace of mind of knowing that your motherboard is fit for all environments and applications. By choosing ASUS, you also gain the freedom to select outstanding component options, for trouble-free DIY experiences.
5X
Protection III
Hardware safeguards to ensure long-term durability.
520+
DDR4 Compatibility
Industry-leading DDR4 memory compatibility for best flexibility and reassurance.
1000+
Compatible Devices
Compatibility with a range of CPUs, memory modules, graphics cards and more.
8000+
Validation Hours
Extensive testing with latest components for enhanced reliability, compatibility and safety.
5X Protection III
Prime 200 motherboards are engineered with industry-leading 5X Protection III, employing the finest components, excellent circuit design, and exacting standards to guarantee the quality and long-term durability of your motherboard. That means exceptional protection and stability for your build — thanks to decades of engineering experience from the world's leading motherboard brand.
SafeSlot Core
Fortified PCIe with solid soldering
SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safeslot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.
LANGuard
Pumped-up throughput. 2.5x higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.
Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
DIGI+ VRM
Precision control for stable power
ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.
DRAM Overcurrent Protection
Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
Stainless-Steel Back I/O
3x corrosion-resistance for greater durability
Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.
* Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.
ESD Guards
Electrostatic discharge protection
ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/- 6kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components.
Proven Compatibility
Tested to be compatible with 1,000+ CPUs, DDR4 memory modules, graphics cards and more
Having the freedom to pick and choose the parts that go into your machine is at the heart of PC DIY. Our extensive certification program focuses on providing the very best compatibility with the widest range of components and devices, giving you the freedom to build and upgrade without frustration. Compatible today and compatible far into the future – that's the ASUS way.
Extensive List of Supported Devices
View supported devices and Qualified Vendor List for compatible memory
The superior compatibility of Prime 200 series is evidenced by our extensive list of supported devices — which includes thousands of compatible components — and our Qualified Vendor List that identifies memory compatibility. That means more choices for worry-free PC-building experiences.
Great Compatibility with ASUS Products
ASUS offers a suite of proprietary components — graphics cards, sound cards, optical drives — that perfectly complement the Prime 200 series, so you can complete your custom motherboard build with confidence!
Top-to-bottom Reliability
ASUS motherboards have superb endurance. We verify this by subjecting every board to more than 8,000 hours of stringent tests. A barrage of burn-in, environmental, compatibility, software and safety tests confirm that our motherboards are exceptionally robust. It also shows that ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.
8000+ Validation Hours
Temperature and Humidity Test
Description
Specification
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: 1151 - Sky Lake / Kaby Lake
- Chipset: Intel B250
- #Hide#DDR Type: DDR4
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: 2400/2133 MHz
- Maximum Memory: 64GB
- Graphics: Supports Intel HD Graphics
- Graphics Ports: 1 x VGA
1 x DVI-D
1 x HDMI - Multi-GPU Support: Supports AMD CrossFireX Technology
- PCI Express: "1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
1 x PCIe 3.0/2.0 x16 (max at x4 mode, black)
2 x PCIe 3.0/2.0 x1 " - PCI: 2 x PCI
- Storage: 6 x SATA III
1 x M.2 Socket (2242/2260/2280) - SATA & PCIe
1 x M.2 Socket (2242/2260/2280) - PCIe - RAID: -
- Wireless: -
- LAN: GB LAN
- Audio: Realtek ALC887 8-Channel High Definition Audio CODEC
- USB Ports Supported: "1 x USB 3.0 Type-C port (at back)
4 x USB 3.0 ports (2 at back, 2 at mid-board)
6 x USB 2.0 ports (4 at back, 2 at mid-board)" - Back Panel I/O Ports: 1 x PS/2 keyboard/mouse
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45)
1 x USB 5Gb/s port Type-C
2 x USB 3.0
4 x USB 2.0
3 x Audio jacks - Internal I/O Connectors: 1 x USB 3.0 connector
1 x USB 2.0 connector
2 x M.2 Socket 3
1 x COM port
6 x SATA 6Gb/s
1 x CPU Fan
2 x Chassis Fan
1 x S/PDIF out
1 x 24-pin EATX
1 x 8-pin ATX 12V
1 x Front audio
1 x Clear CMOS jumpers - .: 1 x System panel
- CPU Support: Click here for CPU support
- Accessories: Users manual
I/O Shield
2 x SATA 6Gb/s cable(s)
2 x M.2 screws
1 x Supporting DVD - Package Type: Retail
- Additional Features: See Overview
- Package Weight: 1.0000 kg
- Warranty: 3 Years
90MB0SJ0-M0EAY0
Data sheet
- .
- 1 x System panel
- PCI Express
- "1 x PCIe 3.0/2.0 x16 (x16 mode, gray) , 1 x PCIe 3.0/2.0 x16 (max at x4 mode, black), 2 x PCIe 3.0/2.0 x1 "
- Wireless
- -
- RAM Speeds
- 2400/2133 MHz
- Accessories
- Users manual, I/O Shield, 2 x SATA 6Gb/s cable(s), 2 x M.2 screws, 1 x Supporting DVD
- USB Ports Supported
- "1 x USB 3.0 Type-C port (at back), 4 x USB 3.0 ports (2 at back, 2 at mid-board), 6 x USB 2.0 ports (4 at back, 2 at mid-board)"
- Storage
- 6 x SATA III, 1 x M.2 Socket (2242/2260/2280) - SATA & PCIe, 1 x M.2 Socket (2242/2260/2280) - PCIe
- RAID
- -
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- 1151 - Sky Lake / Kaby Lake
- Chipset
- Intel B250
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 64GB
- Multi-GPU Support
- Supports AMD CrossFireX Technology
- PCI
- 2 x PCI
- LAN
- GB LAN
- Audio
- Realtek ALC887 8-channel high definition audio CODEC
- Back Panel I/O Ports
- 1 x PS/2 keyboard/mouse, 1 x DVI-D, 1 x D-Sub, 1 x HDMI, 1 x LAN (RJ45), 1 x USB 5Gb/s port Type-C, 2 x USB 3.0, 4 x USB 2.0 , 3 x Audio jacks
- Internal I/O Connectors
- 1 x USB 3.0 connector, 1 x USB 2.0 connector, 2 x M.2 Socket 3 , 1 x COM port, 6 x SATA 6Gb/s, 1 x CPU Fan, 2 x Chassis Fan, 1 x S/PDIF out, 1 x 24-pin EATX, 1 x 8-pin ATX 12V, 1 x Front audio, 1 x Clear CMOS jumpers
- CPU Support
- See manufacturers link (next to product images)
- Package Type
- Retail
- Package Weight
- 1.0000 kg
- Graphics Ports
- 1 x VGA, 1 x DVI-D, 1 x HDMI
- Additional Features
- See Overview
- Graphics
- Supports Intel HD Graphics
