- Out of stock

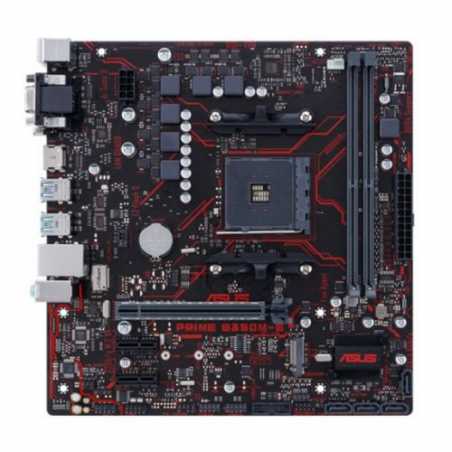

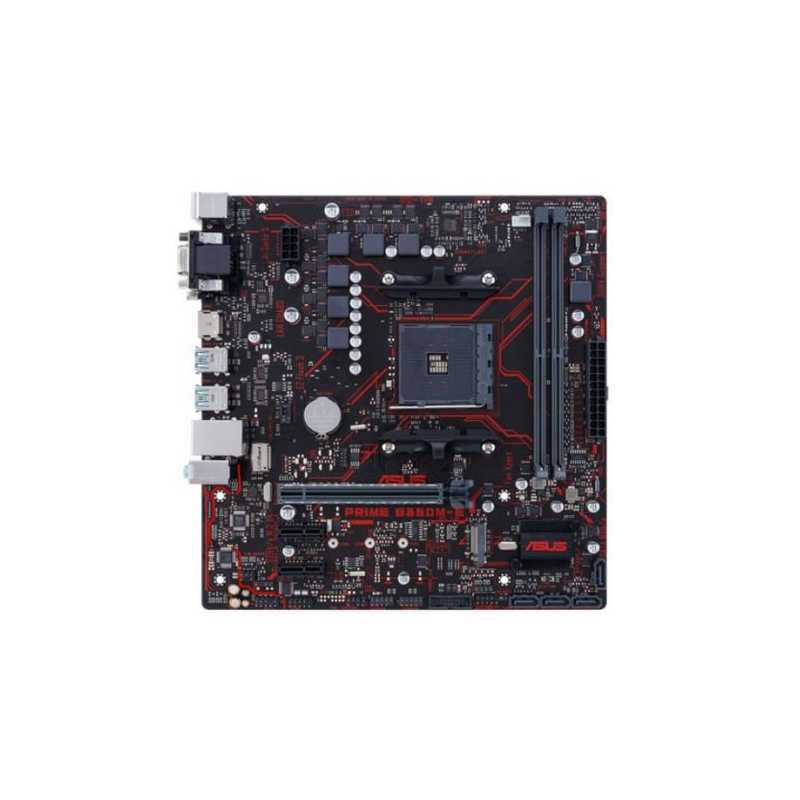

Asus PRIME B350M-E, AMD B350, AM4, Micro ATX, 2 DDR4, VGA, DVI, HDMI, LED Lighting
£76.38
VAT included
AMD AM4 uATX motherboard with LED lighting, DDR4 2666MHz, 32Gb/s M.2, HDMI, SATA 6Gb/s, USB 3.1
- 5X Protection III: Multiple hardware safeguards for all-round protection
- LED illumination: Lighting control for audio trace paths
- Native M.2: Lightning-fast storage speeds
- Onboard USB 3.1: Latest connectivity for ultrafast 10Gbps transfers
- One-stop controls: Media-acclaimed UEFI BIOS with EZ Flash 3
Prime
______________________________________________________________
______________________________________________________________
ASUS Prime is the next evolution of the ASUS motherboard, born of a pedigree that stretches back to 1989. Our team of world-class engineers are passionate about empowering everyone to enjoy the benefits of customisation and tuning, and the driving force behind the development of Prime is to make advanced enthusiast controls easily accessible - maximising performance, stability and compatibility for the very best DIY PC experiences. Simply stated: it's time for Prime.
Reliable Stability and Compatibility
______________________________________________________________
Built to Last
ASUS is the world's foremost motherboard manufacturer, renowned for our unique Design Thinking approach. Our exhaustive testing exceeds industry standards, supported by high-quality components for exceptional real-world protection. Our motherboards are proven to be compatible with more than 1,000 components and devices, and each new model undergoes a minimum of 8,000 hours of strict validation. ASUS gives you the peace of mind of knowing that your motherboard is fit for all environments and applications. By choosing ASUS, you also gain the freedom to select outstanding component options, for trouble-free DIY experiences.
- 5X Protection III
Hardware safeguards to ensure long-term durability.
- 350+ DDR4 Compatibility
Industry-leading DDR4 memory compatibility for best flexibility and reassurance.
- 1000+ Compatible Devices
Compatibility with a range of CPUs, memory modules, graphics cards and more.
- 8000+ Validation Hours
Extensive testing with latest components for enhanced reliability, compatibility and safety.
5x Protection III
PRIME B350 series motherboards are engineered with industry-leading 5X Protection III, employing the finest components, excellent circuit design, and exacting standards to guarantee the quality and long-term durability of your motherboard. That means exceptional protection and stability for your build - thanks to decades of engineering experience from the world's leading motherboard brand.
ASUS SafeSlot
Protect your graphics card investment
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process to integrate the slot with fortifying metal support for an inherently stronger design, SafeSlot is then firmly anchored to the motherboard through additional solder points.
LANGuard
Pumped-up throughput. 2.5x higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.
Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
DIGI+ VRM
Precision control for stable power
ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.
DRAM Overcurrent Protection
Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
Stainless-Steel Back I/O
3x corrosion-resistance for greater durability
Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.
ESD Guards
Electrostatic discharge protection
ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/- 6kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components.
Proven Compatibility
Tested to be compatible with 1,000+ CPUs, DDR4 memory modules, graphics cards and more
Having the freedom to pick and choose the parts that go into your machine is at the heart of PC DIY. Our extensive certification program focuses on providing the very best compatibility with the widest range of components and devices, giving you the freedom to build and upgrade without frustration. Compatible today and compatible far into the future - that's the ASUS way.
Extensive List of Supported Devices
View supported devices and Qualified Vendor List for compatible memory
The superior compatibility of Prime B350 series is evidenced by our extensive list of supported devices - which includes thousands of compatible components - and our Qualified Vendor List that identifies memory compatibility. That means more choices for worry-free PC-building experiences.
Great Compatibility
with ASUS Products
ASUS offers a suite of proprietary components - graphics cards, sound cards, optical drives - that perfectly complement Prime B350 series, so you can complete your custom motherboard build with confidence!
Top-to-bottom Reliability
ASUS motherboards have superb endurance. We verify this by subjecting every board to more than 8,000 hours of stringent tests. A barrage of burn-in, environmental, compatibility, software and safety tests confirm that our motherboards are exceptionally robust. It also shows that ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.
Superb Performance
______________________________________________________________
______________________________________________________________
Description
Specification
- Motherboard Type: Desktop
- Form Factor: Micro ATX
- Socket: AM4
- Chipset: AMD B350
- #Hide#DDR Type: DDR4
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 2 x DIMM
- RAM Speeds: Ryzen Processors: 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz
7th Gen A-series/Athlon Processors:
2400/2133 MHz - Maximum Memory: 32GB
- Graphics: Integrated AMD Radeon R Series Graphics in the 7th Generation A-Series APU
- Graphics Ports: 1 x VGA
1 x DVI-D
1 x HDMI - Multi-GPU Support: -
- PCI Express: AMD Ryzen CPUs
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD 7th Gen A-series/Athlon CPUs
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD B350 chipset
2 x PCIe 2.0 x1 - PCI: -
- Storage: 6 x SATA III
1 x M.2 Socket (2242/2260/2280) - SATA & PCIe - RAID: "RAID 0, 1, 10"
- Wireless: -
- LAN: GB LAN
- Audio: Realtek ALC887 8-Channel High Definition Audio CODEC
- USB Ports Supported: "4 x USB 3.1 ports (2 at back, 2 at mid-board)
6 x USB 3.0 ports (4 at back, 2 at mid-board)
4 x USB 2.0 ports (at mid-board)" - Back Panel I/O Ports: 1 x PS/2 keyboard
1 x PS/2 mouse
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45)
2 x USB 3.1 Type-A
4 x USB 3.0
3 x Audio jacks - Internal I/O Connectors: 1 x USB 3.1 Gen 1 connector
2 x USB 2.0 connectors
1 x M.2 Socket 3
1 x COM
4 x SATA 6Gb/s
1 x CPU Fan
1 x Chassis Fan
1 x S/PDIF out
1 x 24-pin EATX
1 x 4-pin ATX 12V
1 x Front audio
1 x System panel - .: 1 x Clear CMOS
1 x Speaker - CPU Support: See manufacturers link (next to product images)
- Accessories: Users manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD - Package Type: Retail
- Additional Features: See Overview
- Package Weight: 0.8600 kg
- Warranty: 3 Years
90MB0TW0-M0EAY0
Data sheet
- .
- 1 x Clear CMOS, 1 x Speaker
- PCI Express
- AMD Ryzen CPUs, 1 x PCIe 3.0/2.0 x16 (x16 mode) , , AMD 7th Gen A-series/Athlon CPUs, 1 x PCIe 3.0/2.0 x16 (x8 mode) , , AMD B350 chipset, 2 x PCIe 2.0 x1
- Wireless
- -
- RAM Speeds
- Ryzen Processors
- Accessories
- Users manual, I/O Shield, 2 x SATA 6Gb/s cable(s), 1 x M.2 Screw Package, 1 x Supporting DVD
- USB Ports Supported
- "4 x USB 3.1 ports (2 at back, 2 at mid-board), 6 x USB 3.0 ports (4 at back, 2 at mid-board), 4 x USB 2.0 ports (at mid-board)"
- Storage
- 6 x SATA III, 1 x M.2 Socket (2242/2260/2280) - SATA & PCIe
- RAID
- "RAID 0, 1, 10"
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- AM4
- Chipset
- AMD B350
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 32GB
- Multi-GPU Support
- -
- PCI
- -
- LAN
- GB LAN
- Audio
- Realtek ALC887 8-channel high definition audio CODEC
- Back Panel I/O Ports
- 1 x PS/2 keyboard, 1 x PS/2 mouse, 1 x DVI-D, 1 x D-Sub, 1 x HDMI, 1 x LAN (RJ45), 2 x USB 3.1 Type-A, 4 x USB 3.0, 3 x Audio jacks
- Internal I/O Connectors
- 1 x USB 3.1 Gen 1 connector, 2 x USB 2.0 connectors, 1 x M.2 Socket 3, 1 x COM, 4 x SATA 6Gb/s, 1 x CPU Fan, 1 x Chassis Fan, 1 x S/PDIF out, 1 x 24-pin EATX, 1 x 4-pin ATX 12V, 1 x Front audio, 1 x System panel
- CPU Support
- See manufacturers link (next to product images)
- Package Type
- Retail
- Package Weight
- 0.8600 kg
- Graphics Ports
- 1 x VGA, 1 x DVI-D, 1 x HDMI
- Additional Features
- See Overview
- Graphics
- Integrated AMD Radeon R Series Graphics in the 7th Generation A-Series APU
