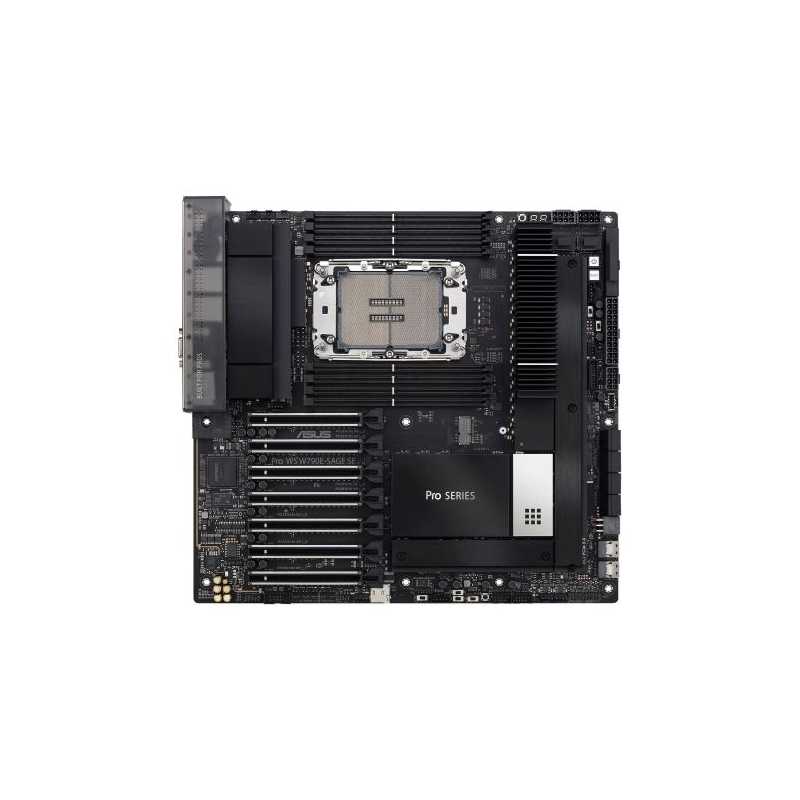

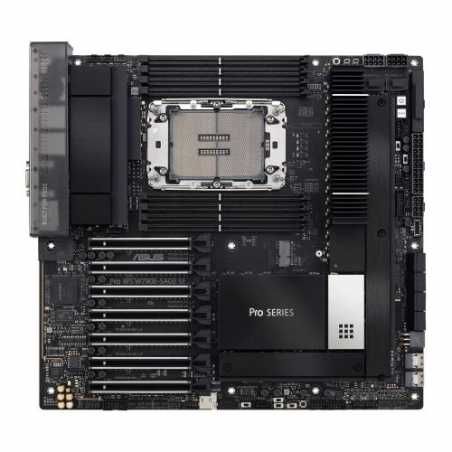

Asus PRO WS W790E-SAGE SE, Workstation, Intel W790, LGA4677, EEB, 8 DDR5, Dual 10G LAN, IPMI Remote Management, SlimSAS, PCIe5,
£1,107.82
VAT included
Delivered within 1-2 days.
Intel W790 (LGA 4677) EEB workstation motherboard, PCIe 5.0 x16, M.2, Dual 10G LAN, Server-grade Remote Management, 14+1+1 power stages, USB 3.2 Gen 2x2 Type-C
- Intel LGA 4677 socket: Ready for Intel Xeon W-3400 & W-2400 processors
- CPU and memory overclocking: Supports for up to 2TB of ECC R-DIMM DDR5 memory (1DPC)
- Ultrafast connectivity: 7 PCIe 5.0 x16 slots, Dual Intel X710-AT2 10G LAN, 3 M.2, USB 3.2 Gen 2x2 Type-C and 2 SlimSAS
- Server-grade IPMI remote management: Hardware and software-level with a dedicated LAN port link to AST2600 BMC controller, plus a real-time monitoring and management software - ASUS Control Center Express
- Robust power and thermal design: 14+1+1 power stages, 8-pin and 6-pin PCIe power connectors, Massive VRM, chipset, M.2 heatsinks and M.2 backplates
- Trusted stability: Highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility
Performance, Productivity, Proven
The Pro WS W790 series workstation motherboard is deftly tailored for creative professionals, developers and engineers, unleashing the dominate performance of the latest Intel Xeon processors, with CPU and memory overclocking capability. Featuring an optimized memory trace layout, advanced power stage design, server-grade IPMI remote management, and ultrafast PCIe 5.0 and networking connectivity, Pro WS W790 series melds no-compromise engineering with incredible aesthetics.
ASUS W790 motherboards go above and beyond the ordinary with a painstakingly cultivated collection of hardware validations to help ensure that your workstation build supports a wide variety of memory, cooler, chassis, PSU and other devices.
Low-profile professionalism
With metallic black aluminum extrusions, stainless steel black mesh with highlighted details, and a transparent smoky gray I/O cover, Pro WS W790 series presents a professional, low-profile look for content creators.
Multi-GPU support
Pro WS W790E-SAGE SE features seven PCIe 5.0 x16 slots for high-powered graphics cards, enabling enhanced performance for professional design, modeling and simulation, and rendering applications.
14+1+1 Power stages
Pro WS W790E-SAGE SE's VRM is comprised of 14+1+1 power stages, and delivers the power and efficiency that the latest Intel processors demand.
8-pin and 6-pin power connectors
Additional PCIe 8-pin and 6-pin power connectors can add power output stability when creators and developers use many graphic cards onboard.
Reliability with supreme memory overclocking
The Pro WS W790E-SAGE SE supports 8-channel 1DPC DDR5 RDIMM ECC memory, allowing automatically to detect and correct data corruption, reducing the chance of system crashes. Being infused with deliberate memory trace layout, this motherboard enables DDR5 memory overclocking with maxed-out speeds to provide better memory performance for a diverse range of workloads.
BMC remote management
An integrated BMC (Baseboard Management Controller) is a key feature for workstations. It uses a 1G Realtek controller, with one 1G port dedicated to the BMC to provide the intelligence for its IPMI architecture. The BMC manages the interface between system-management software and platform hardware. Administrators can remotely communicate with the BMC to take some corrective actions - such as resetting or power cycling a system.
ASUS Control Center Express
The Pro WS W790E-SAGE SE comes with ASUS Control Center Express - a real-time IT monitoring and management software designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks.
Solid compatibility validation
The ASUS Pro WS W790 series has been extensively tested and validated under various environments and applications and support for the latest technologies with solid QVL lists for compatibility and reliability.
Protect your graphics cards
SafeSlot is a PCIe slot reengineered by ASUS to provide optimized attachment and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot fortifies the slot with metal for enhanced strength and durability.
24/7 reliability
Optimized for around-the-clock operations, The ASUS Pro WS W790 series is tested under temperatures of up to 45°C and humidity of up to 80% in order to ensure it can thrive in different environments.
** Click here for full product details **
90MB1C20-M0EAY0
3 Items
Data sheet
- .
- 1 x SPI TPM (14-1pin)1 x Start button1 x 20-3 pin System Panel1 x Thermal Sensor1 x BMC switch1 x VGA switch1 x BMC LAN fixed IP1 x IPMI2 x Q_PSU2 x PSU SMBus1 x Front panel location LED1 x Location button1 x VPP_I2C1 x Micro SD card socket1 x BMC_T_SENSO
- Wireless
- -
- RAM Speeds
- Up to 6800(OC)
- Accessories
- 4 x SATA 6Gb/s cables1 x Thermistor cable pack1 x VRM Fan holder1 x Q-connector1 x M.2 Rubber Package1 x M.2 backplate Rubber Package1 x Screw package for M.2 Key E1 x CPU guard for LGA 4677 E1A1 x CPU guard for LGA 4677 E1B1 x ACC Express Activation Key
- USB Ports Supported
- 1 x USB 3.2 Gen2x2 Type-C (at back)1 x USB 3.2 Gen2 Type-C (at back)4 x USB 3.2 Gen2 Type-A (at back)2 x USB 3.2 Gen1 Type-A (at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)1 x USB 3.2 Gen2 Type-C front panel connector
- Storage
- Intel Xeon W-3400 Series Processors:1 x M.2 (2242/2260/2280/22110) - PCIe1 x M.2 (2242/2260/2280/22110) - PCIeIntel W790 Chipset:*1 x M.2 (2242/2260/2280/22110) - PCIeSlimSAS_1 port supports PCIe 4.0 x4 mode NVMe deviceSlimSAS_2 port supports PCIe 4.0 x4
- RAID
- Supports Intel Virtual RAID on CPU (Intel® VROC) and Intel Volume Management Device (IntelVMD)* Intel VROC Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. VROC_HW_Key is purchased separately
- Warranty
- 3 Years
- Motherboard Type
- Server / Workstation
- Form Factor
- EEB
- Socket
- Intel 4677
- Chipset
- Intel W790
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Eight Channel)
- RAM Slots
- 8 x DIMM
- Maximum Memory
- 2048GB
- LAN
- Dual 10GB LAN & GB LAN
- Audio
- Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
- Back Panel I/O Ports
- 1 x USB 3.2 Gen2x2 Type-C5 x USB 3.2 Gen2 (4 Type-A, 1 Type-C)2 x USB 2.01 x VGA2 x Intel dual 10Gb Ethernet1 x Realtek 1Gb Ethernet5 x Audio jacks1 x Optical S/PDIF out1 x BIOS FlashBack button1 x Clear CMOS button
- Internal I/O Connectors
- 1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan5 x 4-pin Chassis Fan1 x W_PUMP+2 x 24-pin Main4 x 8-pin +12V1 x 8-pin PCIe1 x 6-pin PCIe3 x M.2 (Key M)2 x SlimSAS8 x SATA 6Gb/s1 x VROC Key
- CPU Support
- For Xeon W-3400 and W-2400 Series ProcessorsSupports Intel Turbo Boost Max Technology 3.0Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 1 x VGA
- Additional Features
- See Overview
- Graphics
- 1 x VGA port from AST2600
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 3 x LAN
- Max LAN Speed
- 10GB LAN
- PCI/PCI Express
- 7 x PCIe 5.0 (Seven at x16/x16/x16/x16/x16/x8/x16)4 x PCIe 5.0 (Four at x16/x16/x16/x16)
