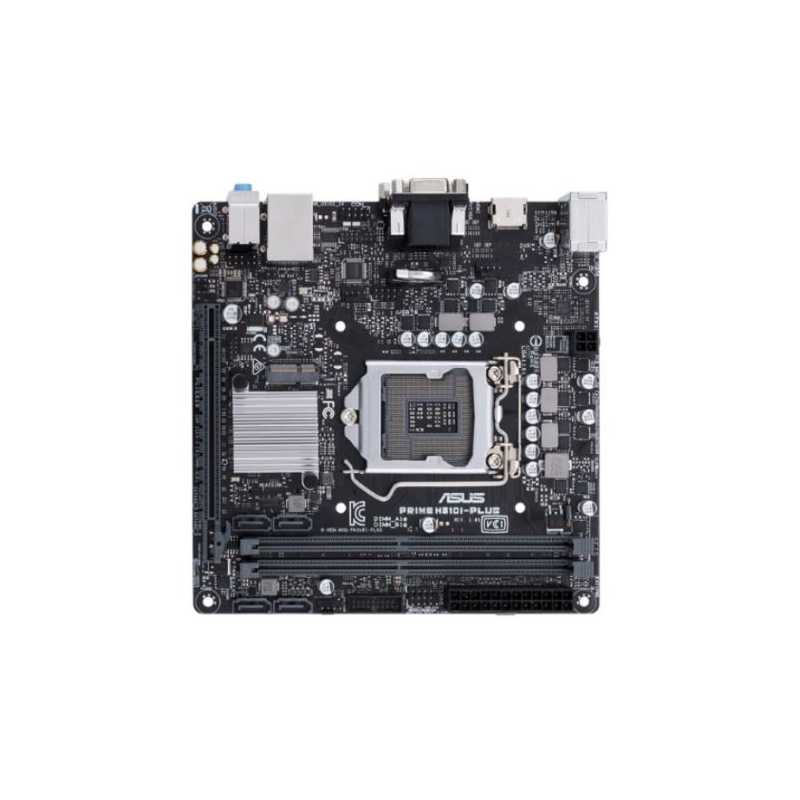

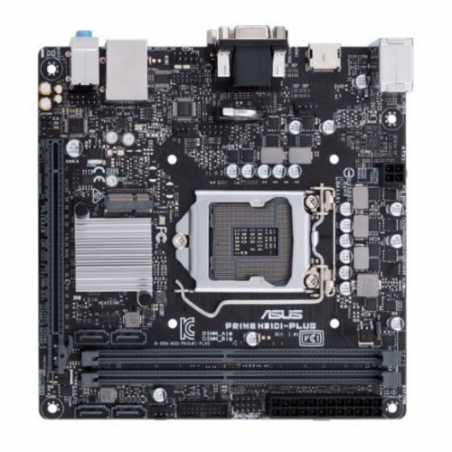

Asus PRIME H310I-PLUS, Intel H310, 1151, Mini ITX, DDR4, VGA, DVI, HDMI, M.2
£83.68
VAT included
Intel LGA-1151 mini-ITX motherboard with DDR4 2666MHz, M.2 M key & M.2 E key support, HDMI, SATA 6Gbps and USB 3.1 Gen1
- Fan Xpert 2+: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming
- 5X Protection III: Multiple hardware safeguards for all-round protection.
- Native M.2 (M key) support delivers lightning-fast storage speeds and native M.2 (E key) support enables faster wireless communication speeds.
Prime
______________________________________________________________
ASUS Prime 300 Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. We've melded all the good stuff that's packed into the latest 8th Generation Intel® Core™ processors with essential ASUS design and engineering, so you benefit from industry-leading technologies — including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime 300 Series motherboard, you build smart, easy and affordably.
Tune it your Way
______________________________________________________________
Cooler by design
Prime 300 Series features the most comprehensive cooling controls ever, configurable via ASUS Fan Xpert software or the UEFI BIOS.
Media-acclaimed UEFI BIOS
The UEFI BIOS is an early waypoint on any PC-building journey, and Prime 300 Series has one of the best in the business.
Ultrafast Connectivity
USB 3.1 Gen 1 front-panel connector
Future-proof connectivity
USB 3.1 Gen 1 is right where you need it, with two super-speed headers for the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, and avoid back-breaking contortions in the hunt for hard-to-reach rear ports.
M.2 (socket 3, M key)
Speed up with onboard M.2
With x4 PCI Express® 2.0 bandwidth, M.2 supports up to 20Gbps data-transfer speeds. It's the perfect choice for an operating system or application drive, providing fast access to data.
M.2 (socket 1, E key)
Go faster with the latest CNVi/Wi-Fi/Bluetooth 5
Integrated with Intel® wireless-AC technology, M.2 supports CNVi/PCIe/USB mode to build a faster and more cost-effective Wi-Fi and Bluetooth 5 solution.
Reliable stability and compatibility
______________________________________________________________
Built to Last
ASUS is the world's leading motherboard brand. Our motherboards are extensively tested for compatibility with more than 1,000 components and devices, and each new model undergoes a minimum of 8,000 hours of strict validation — offering the peace of mind of knowing that your ASUS motherboard is fit for all environments and applications. Choosing ASUS is an assurance of trouble-free DIY experiences.
5X Protection III
Hardware safeguards to ensure long-term durability.
520+ DDR4 compatibility
Industry-leading DDR4 memory compatibility for best flexibility and reassurance.
1000+ compatible devices
Compatibility with a range of CPUs, memory modules, graphics cards and more.
8000+ validation hours
Extensive testing with latest components for enhanced reliability, compatibility and safety.
5X Protection III
Prime 300 Series motherboards are engineered with industry-leading 5X Protection III, employing the finest components, excellent circuit design and exacting standards to guarantee the quality and long-term durability of your investment. That means exceptional protection and stability for your build — thanks to decades of engineering experience from the world's leading motherboard brand.
1000+ Compatible devices and components
The superior compatibility of Prime 300 Series is evidenced by our extensive list of supported devices — which includes thousands of compatible components — and our Qualified Vendor List (QVL) that identifies memory compatibility. It all adds up to more choices for worry-free PC-building experiences.
8000+ Validation Hours
ASUS motherboards offer superb endurance. We verify this by subjecting every board to more than 8,000 hours of stringent tests. A barrage of burn-in, environmental, compatibility, software and safety tests confirm that our motherboards are exceptionally robust. It also shows that ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.
Upgrade to Unrivalled Audio
______________________________________________________________
Outstanding audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced!
Audio shielding
Separates analogue/digital signal domains, significantly reducing multi-lateral interference.
Separate layer for left and right tracks
Ensures minimal crosstalk between audio paths.
Premium Japanese-made audio capacitors
Premium parts provide an immersive sound signature, with exceptional fidelity.
Visual Beauty, Virtual Worlds
______________________________________________________________
Beyond VR ready
Complete your immersion
Prime 300 series isn't just VR ready — it goes way beyond. The ASUS Beyond VR Ready marque means that Prime 300 series has been tested with loads of class-leading components to ensure that your productivity, gaming and entertainment need
Description
Specification
- Motherboard Type: Desktop
- Form Factor: Mini ITX
- Socket: 1151 - Coffee Lake
- Chipset: Intel H310
- #Hide#DDR Type: DDR4
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 2 x DIMM
- RAM Speeds: 2666/2400/2133 MHz
- Maximum Memory: 32GB
- Graphics: Supports Intel HD Graphics
- Graphics Ports: 1 x VGA
1 x DVI-D
1 x HDMI - Multi-GPU Support: -
- PCI Express: 1 x PCIe 3.0 x16 (x16 mode)
- PCI: -
- Storage: 4 x SATA III
1 x M.2 Socket 3 (2260/2280) - RAID: -
- Wireless: -
- LAN: GB LAN
- Audio: Realtek ALC887 8-Channel High Definition Audio CODEC
- USB Ports Supported: "4 x USB 3.1 Gen1 (2 at back, 2 at mid-board)
4 x USB 2.0 (2 at back, 2 at mid-board)" - Back Panel I/O Ports: 1 x PS/2 keyboard/mouse
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45)
2 x USB 3.1 Gen1
2 x USB 2.0
3 x Audio jacks - Internal I/O Connectors: 1 x USB 3.1 Gen1
1 x USB 2.0
1 x M.2 Socket 3
1 x COM port
4 x SATA 6Gb/s
1 x CPU Fan
2 x Chassis Fan
1 x S/PDIF out
1 x 24-pin EATX
1 x 4-pin ATX 12V
1 x Front audio
1 x Chassis Intrusion - .: 1 x Clear CMOS
1 x 14-1 pin TPM
1 x System panel
1 x Speaker
1x M.2 Socket 1 with E Key - CPU Support: See manufacturers link (next to product images)
- Accessories: Users manual
I/O Shield
2 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
1 x Supporting DVD - Package Type: Retail
- Additional Features: See Overview
- Package Weight: 0.6800 kg
- Warranty: 3 Years
90MB0W50-M0EAY0
Data sheet
- .
- 1 x Clear CMOS, 1 x 14-1 pin TPM, 1 x System panel, 1 x Speaker, 1x M.2 Socket 1 with E Key
- PCI Express
- 1 x PCIe 3.0 x16 (x16 mode)
- Wireless
- -
- RAM Speeds
- 2666/2400/2133 MHz
- Accessories
- Users manual, I/O Shield, 2 x SATA 6Gb/s cable(s), 2 x M.2 Screw Package, 1 x Supporting DVD
- USB Ports Supported
- "4 x USB 3.1 Gen1 (2 at back, 2 at mid-board), 4 x USB 2.0 (2 at back, 2 at mid-board)"
- Storage
- 4 x SATA III, 1 x M.2 Socket 3 (2260/2280)
- RAID
- -
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Mini ITX
- Socket
- 1151 - Coffee Lake
- Chipset
- Intel H310
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 32GB
- Multi-GPU Support
- -
- PCI
- -
- LAN
- GB LAN
- Audio
- Realtek ALC887 8-channel high definition audio CODEC
- Back Panel I/O Ports
- 1 x PS/2 keyboard/mouse, 1 x DVI-D, 1 x D-Sub, 1 x HDMI, 1 x LAN (RJ45), 2 x USB 3.1 Gen1, 2 x USB 2.0 , 3 x Audio jacks
- Internal I/O Connectors
- 1 x USB 3.1 Gen1, 1 x USB 2.0, 1 x M.2 Socket 3, 1 x COM port, 4 x SATA 6Gb/s, 1 x CPU Fan, 2 x Chassis Fan, 1 x S/PDIF out, 1 x 24-pin EATX, 1 x 4-pin ATX 12V, 1 x Front audio, 1 x Chassis Intrusion
- CPU Support
- See manufacturers link (next to product images)
- Package Type
- Retail
- Package Weight
- 0.6800 kg
- Graphics Ports
- 1 x VGA, 1 x DVI-D, 1 x HDMI
- Additional Features
- See Overview
- Graphics
- Supports Intel HD Graphics
