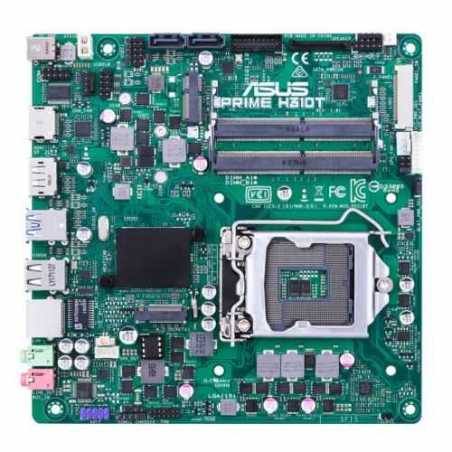

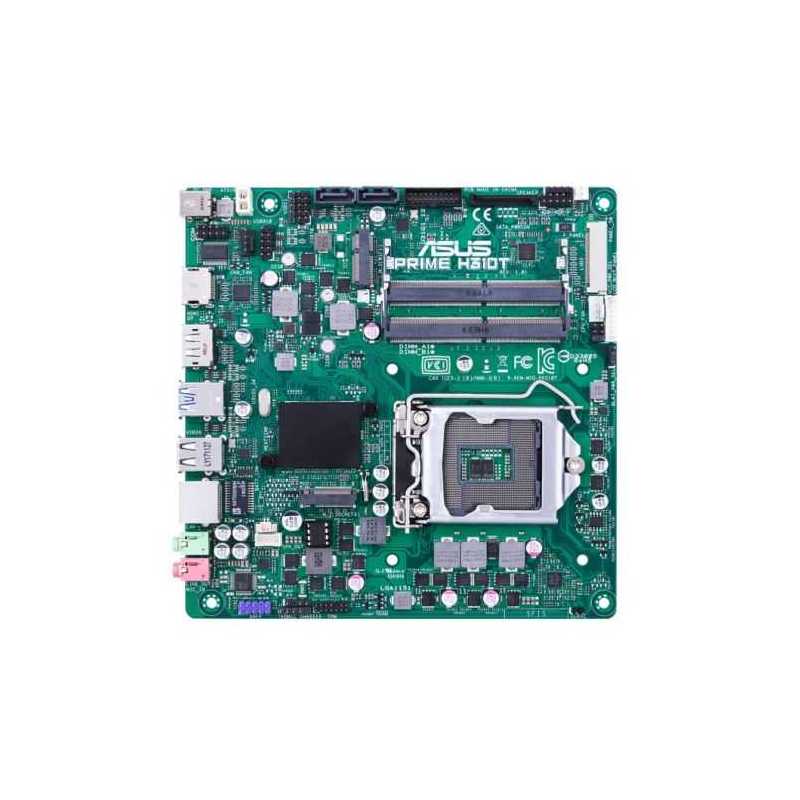

Asus PRIME H310T, Intel H310, 1151, Thin Mini ITX, DDR4 SO-DIMM, HDMI, DP, M.2, Business Features
£92.82
VAT included
Thin Mini ITX H310 business motherboard with enhanced security, reliability and manageability
- ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
- Dedicated LPC header and debug card with LCD display for faster troubleshooting
- Event log for capturing and managing detailed system information
- Innovative moisture-resistant coating to protect the motherboard from harsh environments
- Commercial BIOS kit to make customization faster and more efficient
Business Motherboard
ASUS is the world's biggest and best-known motherboard brand. Famous for user-focused Designed Thinking, we understand the importance of security, stability and easy manageability for your business. Our latest lineup of business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability, and an improved management suite for easier customization. Combined with our world-class after-sales service and guaranteed long-term availability to maximize your investment over the product lifecycle, ASUS business motherboards provide a high-quality, TCO-optimized solution for your business computing needs.
Internationally Certified Business Motherboard
ASUS business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organizations, including UL and Blue Angel, ASUS business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business.
Asus Shield
______________________________________________________________
Enhances System Security from Botton to Top
ASUS Self-recovering BIOS
ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.
ASUS Secure Boot
ASUS business motherboard is set to check the firmware and signature of each piece of boot software.
Trusted Platform Module (TPM)
Hardware-based security offers better data protection, enhances network security, protects digital identities and ensures platform integrity.
Certified NIST SP 800-147
ASUS business motherboard is certified by the national computer security standards.
ASUS Reliant
______________________________________________________________
Ensures Consistent Performance with the Finest Components and Rigorous Reliability Testing
ASUS Trouble Shooting Solution
PRIME H310T onboard a TPM header for connecting to debug cards for faster, more efficient motherboard troubleshooting. When connected to an ASUS Debug Card, administrators can view error and debugging codes on the integrated LCD display, and get better idea of initialization and recovery processes. ASUS business motherboards provide a complete troubleshooting solution, making mass production faster and more cost effective.
24/7 Reliability Test
Optimized for twenty-four seven operations, the motherboard is tested under temperature up to 45°C and relative humidity up to 80% to ensure it can handle diverse temperature and humidity range of different location.
Anti-moisture Coating
Protection against moisture and corrosion
An innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers and internet cafes. It also minimizes internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard.
Anti-sulfur Resistors
Consider long-term reliability of commercial product, ASUS business motherboard is equipped with anti-sulfur resistors. The resistors provide excellent resistance to sulfuration by constructed in a high grade ceramic body (aluminum oxide). With anti-sulfur resistors, ASUS business motherboard can be operated under the harsh environments.
LANGuard
Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.
Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
Stainless-Steel Back I/O
3X corrosion-resistance for greater durability
Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.
ESD Guards
Electrostatic discharge protection
ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/-15kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components.
ASUS Commercial BIOS Kit
ASUS understands how important a customized product impacts users' mind share, experience the brand new Commercial BIOS Kit for partial BIOS update solution!
BIOS Value Edit Tool: Customize the BIOS options
BIOS Boot Logo Tool: Brand your builds with a customized boot logo
OEM Activation (OA) Tools: Add or remove the OEM Activation key
Desktop Management Interface (DMI): Easily add customer information, such as company name, to the BIOS
Intel® Management Engine (Intel® ME): Driver Update the Management Engine without flashing the whole BIOS
Easy Assembly
______________________________________________________________
Box Headers
USB 3.1 Gen 1 header is box style, enabling fast connector installation and preventing pin damage.
Colour-
Description
Specification
- Motherboard Type: Desktop
- Form Factor: Thin Mini ITX
- Socket: 1151 - Coffee Lake
- Chipset: Intel H310
- #Hide#DDR Type: DDR4 SO-DIMM
- RAM Technology: DDR4 SO-DIMM (Dual Channel)
- RAM Slots: 2 x SODIMM
- RAM Speeds: 2666/2400/2133 MHz
- Maximum Memory: 32GB
- Graphics: Supports Intel HD Graphics
- Graphics Ports: 1 x HDMI
1 x DisplayPort - Multi-GPU Support: -
- PCI Express: -
- PCI: -
- Storage: 2 x SATA III
1 x M.2 Socket (2260/2280) - SATA & PCIe - RAID: -
- Wireless: -
- LAN: GB LAN
- Audio: Realtek ALC887 8-Channel High Definition Audio CODEC
- USB Ports Supported: "4 x USB 3.1 Gen1 (2 at back, 2 at mid-board)
7 x USB 2.0 (2 at back, 5 at mid-board)" - Back Panel I/O Ports: 1 x DisplayPort
1 x HDMI
1 x LAN (RJ45)
2 x USB 3.1 Gen1
2 x USB 2.0
2 x Audio jacks
1 x DC power - Internal I/O Connectors: 1 x USB 3.1 Gen1
1 x USB 2.0 1-port
2 x USB 2.0
1 x COM port
2 x SATA 6Gb/s
1 x SATA
1 x CPU Fan
1 x Chassis Fan
1 x Front audio
1 x Chassis Intrusion
1 x Clear CMOS
1 x 2-pin internal DC power - .: 1 x M.2 Socket 1 with E Key
1 x M.2 Socket 3 with M key
1 x Stereo speaker
1 x DMIC
1 x Backlight inverter voltage selection
1 x FPD brightness
1 x Panel voltage selection
1 x Panel off
1 x LVDS
1 x 14-1 pin TPM
1 x System panel - CPU Support: Click here for CPU support
- Accessories: Users manual
I/O Shield
Thin Mini ITX I/O Shield
1 x SATA power cable
2 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
1 x Supporting DVD - Package Type: Retail
- Additional Features: See Overview
- Package Weight: 0.6500 kg
- Warranty: 3 Years
90MB0XB0-M0EAYM
Data sheet
- .
- 1 x M.2 Socket 1 with E Key, 1 x M.2 Socket 3 with M key, 1 x Stereo speaker, 1 x DMIC, 1 x Backlight inverter voltage selection, 1 x FPD brightness, 1 x Panel voltage selection, 1 x Panel off, 1 x LVDS, 1 x 14-1 pin TPM, 1 x System panel
- PCI Express
- -
- Wireless
- -
- RAM Speeds
- 2666/2400/2133 MHz
- Accessories
- Users manual, I/O Shield, Thin Mini ITX I/O Shield, 1 x SATA power cable, 2 x SATA 6Gb/s cable(s), 2 x M.2 Screw Package, 1 x Supporting DVD
- USB Ports Supported
- "4 x USB 3.1 Gen1 (2 at back, 2 at mid-board), 7 x USB 2.0 (2 at back, 5 at mid-board)"
- Storage
- 2 x SATA III, 1 x M.2 Socket (2260/2280) - SATA & PCIe
- RAID
- -
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Thin Mini ITX
- Socket
- 1151 - Coffee Lake
- Chipset
- Intel H310
- DDR Type
- DDR4 SO-DIMM
- RAM Technology
- DDR4 SO-DIMM (Dual Channel)
- RAM Slots
- 2 x SODIMM
- Maximum Memory
- 32GB
- Multi-GPU Support
- -
- PCI
- -
- LAN
- GB LAN
- Audio
- Realtek ALC887 8-channel high definition audio CODEC
- Back Panel I/O Ports
- 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45), 2 x USB 3.1 Gen1, 2 x USB 2.0 , 2 x Audio jacks, 1 x DC power
- Internal I/O Connectors
- 1 x USB 3.1 Gen1, 1 x USB 2.0 1-port, 2 x USB 2.0, 1 x COM port, 2 x SATA 6Gb/s, 1 x SATA, 1 x CPU Fan, 1 x Chassis Fan, 1 x Front audio, 1 x Chassis Intrusion, 1 x Clear CMOS, 1 x 2-pin internal DC power
- CPU Support
- See manufacturers link (next to product images)
- Package Type
- Retail
- Package Weight
- 0.6500 kg
- Graphics Ports
- 1 x HDMI, 1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Supports Intel HD Graphics
