- Out of stock

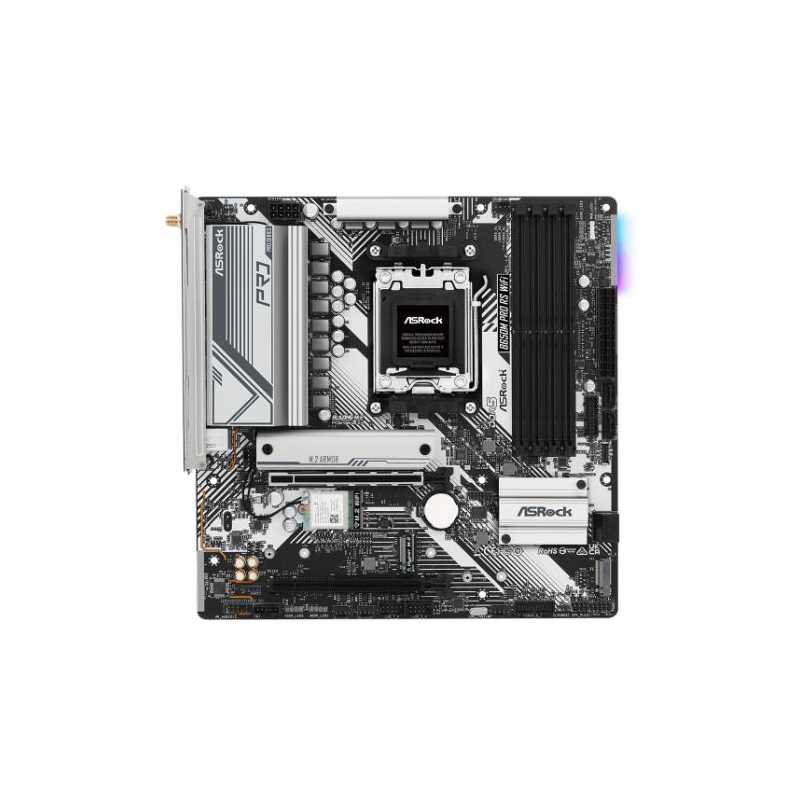

Asrock B650M PRO RS WIFI, AMD B650, AM5, Micro ATX, 4 DDR5, HDMI, DP, 2.5G LAN, Wi-Fi 6E, PCIe4, RGB, 3x M.2
£145.31
VAT included
Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.
- Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
- 8+2+1 Power Phase, Dr.MOS
- Supports DDR5 6000+ MHz (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4)
- 1 Hyper M.2 (PCIe Gen4 x4)
- 1 M.2 (PCIe Gen4 x2)
- 1 USB 3.2 Gen2 Type A+C (Rear)
- 1 USB 3.2 Gen1 Type-C (Front)
- 6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
- Dragon 2.5G LAN
- 802.11ax Wi-Fi 6E + Bluetooth
Extreme Overclocking Performance
DDR5 EXPO & XMP Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. All B650 motherboards are built with 6-Layer PCB design, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 6000MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO™/ Intel® XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
The Blazing OC Tuner allows AM5 CPU to switch between OC mode and PBO(Precision Boost Overdrive) mode when the CPU current hits threshold. Anything above current threshold will engage manual OC mode; if below current threshold then will engage Precision Boost Overdrive mode. This idea is to combine overclocking on all cores and automatic boost on a single core to get the best performance out of your CPU. There is no need to enter BIOS to setup up, you can modify all the settings on time under OS.
PBO(Precision Boost Overdrive) is an automatic performance-maximizing technology that is able to improve your PC’s performance by raising clock speeds based on the conditions inside your PC, AMD’s processors is equipped with intelligent thermal sensors designed to analyze conditions inside your PC and make the “go faster” decision as often as possible, please ensure system cooling is sufficient before enabling PBO.
Aluminum Heatsink Fan-Tastic Tuning PWM/DC Fan Support
Intelligent Cooling Design
Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.
ASRock A-Tuning Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system's cooling performance and noise reduction requirements.
ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.
Dr. MOS 8+2+1 Power Phase Design
Optimized VRM Design
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
6 Layer PCB 2oz Copper PCB 2 ounce copper inner-800 layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
High Speed M.2 Solution
PCIe Gen5 Blazing M.2 XXL M.2 Heatsink
Wireless Networking
Wi-Fi 6E 802.11ax M.2 Key-E Module Cap SMA cable is easy to loose, this is an unacceptable situation for every users. Now we fixed this issue with a little Key-E module cap.
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
Auto Driver Installer BIOS Flashback Pre-Installed IO Shield ASRock strives offer only the cutting edge technology with the most user-friendly design. The pre-installed IO Shield design makes motherboard to be well-installed in the chassis precisely for preventing any interferences and speed up the set-up process.
6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.
Nahimic Audio
- Audio That Matters - Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
- Enhance Communication Quality - The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
- Sound Tracker - The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
- Works on any devices - Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.
Polychrome RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
High Speed M.2 Solution
PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
The extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Wireless Networking
Wi-Fi 6E 802.11ax
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.
Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
EZ Setting
Auto Driver Installer
Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
B650M PRO RS WIFI
Data sheet
- .
- 2 x USB 3.2 Gen11 x Front Panel Type C USB 3.2 Gen1
- Wireless
- 802.11ax Wi-Fi 6E ModuleSupports IEEE 802.11a/b/g/n/ac/axSupports Dual-Band 2x2 with ext 6GHz band support2 antennas - (Transmit) x 2 (Receive) diversity techSupports Bluetooth 5.2 + High speed class IISupports MU-MIMO
- RAM Speeds
- Up to 6000+(OC)
- Accessories
- 1 x User Manual2 x SATA Data Cables2 x ASRock WiFi 2.4/5/6 GHz Antennas3 x Screws for M.2 Sockets1 x Standoff for M.2 Socket
- USB Ports Supported
- 1 x USB 3.2 Gen2 Type-C (at back)1 x USB 3.2 Gen2 Type-A (at back)6 x USB 3.2 Gen1 Type-A (2 at back, 4 at mid-board)8 x USB 2.0 (4 at back, 4 at mid-board)1 x Front USB 3.2 Gen1 Type-C connector
- Storage
- 4 x SATA III1 x M.2 (2260/2280) - PCIe1 x M.2 (2260/2280) - PCIe1 x M.2 (2260/2280) - PCIe
- RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
- Warranty
- 3 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- AMD AM5
- Chipset
- AMD B650
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 128GB
- Multi-GPU Support
- Supports AMD CrossFire
- LAN
- 2.5GB LAN
- Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Back Panel I/O Ports
- 2 x Antenna1 x HDMI1 x DisplayPort 1.41 x USB 3.2 Gen2 Type-A1 x USB 3.2 Gen2 Type-C2 x USB 3.2 Gen14 x USB 2.01 x RJ-45 LAN1 x BIOS Flashback ButtonHD Audio Jacks
- Internal I/O Connectors
- 1 x SPI TP1 x Power LED and Speaker1 x RGB LED3 x Addressable LED1 x CPU Fan1 x CPU/Water Pump Fan3 x Chassis/Water Pump Fan 1 x 24 pin ATX1 x 8 pin 12V1 x Front Panel Audio1 x Thunderbolt AIC2 x USB 2.0
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated Graphics**Graphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 2.5GB LAN
- RGB Lighting
- Out of the box RGB lighting
- PCI/PCI Express
- 1 x PCIe 4.0 x16 (supports x16 mode)1 x PCIe 3.0 x16 (supports x4 mode)
- Wi-Fi
- Yes (Wi-Fi)
