- Out of stock

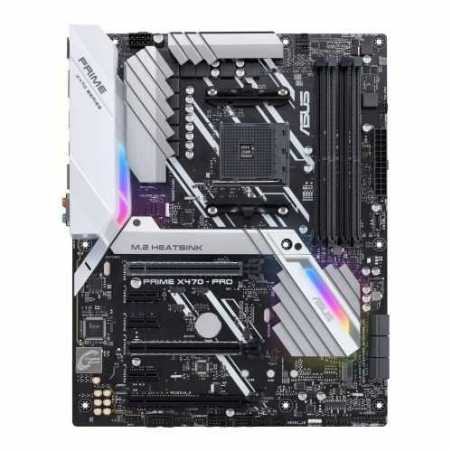

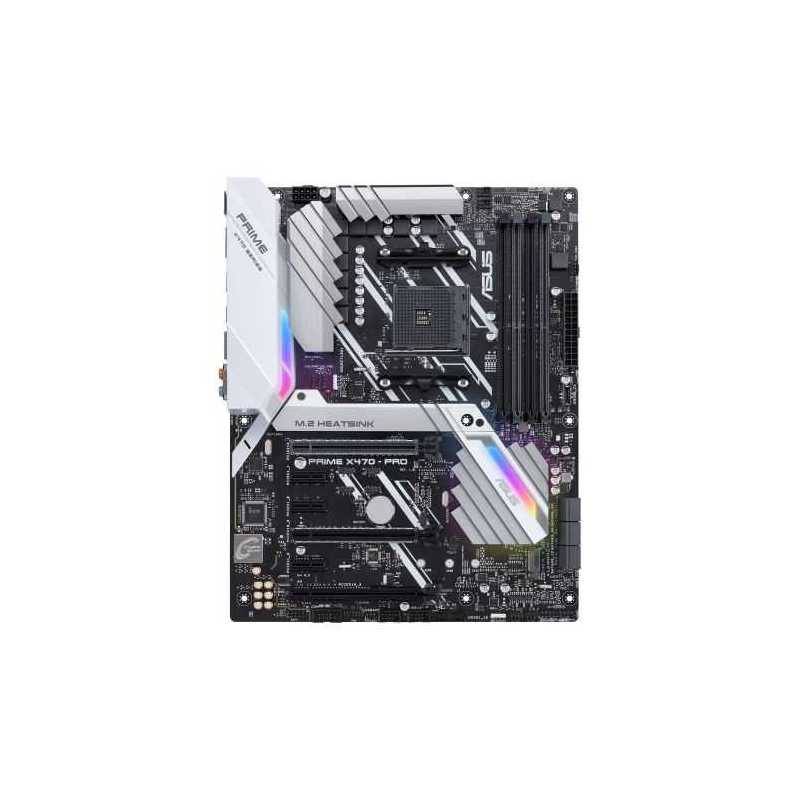

Asus PRIME X470-PRO, AMD X470, AM4, ATX, DDR4, HDMI, DP, SLI/XFire, RGB Lighting, M.2
£187.86
VAT included
AMD AM4 ATX motherboard with M.2 heatsink, DDR4 3466MHz, dual M.2, HDMI, SATA 6Gbps and USB 3.1 Gen 2 front-panel connector
- ASUS 5-Way Optimization: One-click, system-wide tuning for optimized overclocks and intelligent cooling for CPU- or GPU-intensive tasks
- Industry-leading cooling options: Comprehensive controls for fans and water pumps, via the Fan Xpert 4 software or the acclaimed ASUS UEFI
- M.2 heatsink: Ultra-efficient design reduces M.2 SSD temperature by up to 20°C for unthrottled transfer speeds and enhanced reliability
- Next-gen connectivity: Supreme flexibility with dual M.2 support, NVME RAID support, USB 3.1 Gen 2 ports and front-panel header
- ASUS Aura Sync: Industry-leading RGB ecosystem, with controllable onboard LEDs and wide range of Aura Sync-compatible components
Prime
ASUS Prime X470-Pro provides the solid foundation needed for your initial build, plus flexibility to grow with your ambitions. We've melded all the good stuff that's packed into the latest AMD Ryzen™ 2nd Generation processors with essential ASUS design and engineering, so you benefit from industry-leading technologies such as automated system tuning, comprehensive cooling controls, and immersive onboard audio. Build smart, easy and affordably, with ASUS Prime X470-Pro.
Awaken the True Potential
One-click overclock and cooling, done!
ASUS 5-Way Optimization makes your PC smart. One click takes care of complex tuning, dynamically optimizing essential aspects of the system to provide overclocking and cooling profiles that are tailored for your rig.
- An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.
- Fans stay whisper-quiet with everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.
- Stress test function helps optimize and overclock for CPU- or memory-centric workloads.
Make your memory faster
Featuring an array of trace layout tweaks that improve memory stability, Prime X470-Pro provides a potent foundation for your build. With comprehensive support for the full gamut of Ryzen memory configurations - from entry-level to performance-oriented - Prime X470-Pro is a versatile all-rounder that can work or play.
Reliable Cooling and Stability
Cooler by design
Prime X470-Pro features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.
Outshine the competition
Prime X470-Pro features ASUS Aura RGB for illumination that's aesthetic or informative. The choice is yours. ASUS Aura software offers control over hundreds of colors and dozens of effects. Use it to control built-in LEDs or LED strips and other Aura Sync-compatible gear connected to the onboard headers. Create a glow to match your environment, or have the LEDs react to changes in CPU temperature.
Keep your SSD cooler
Prime X470-Pro has an ultra-efficient heatsink to reduce M.2 SSD temperatures by up to 20C - and that means optimal storage performance and improved SSD longevity.
Protect your graphics card investment
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
One-stop Controls
Media-acclaimed UEFI BIOS
The smoothest, slickest mouse-controllable graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, EZ and Advanced modes will help you quickly find your way, quickly and easily.
Ultrafast Connectivity
Speed up with onboard M.2 - up to 32Gbps
With x4 PCI Express® 3.0/2.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It's the perfect choice for an operating system or application drive, providing fast access to data.
Native M.2/NVMe PCIe RAID
With X470-Pro you're free to join the storage fast lane and build a RAID 0 array using two PCIe drives to experience accelerated data transfers.
Future-proof connectivity
Prime X470-Pro's front panel USB 3.1 Gen 2 connector is ready for next-gen PC cases and devices.
Ultimate-speed 10Gbps with USB 3.1 Gen 2 onboard
With backward-compatible USB 3.1 Gen 2 Type-A™, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps - twice as fast as standard USB 3.1 Gen 1.
More throughput, less CPU usage and great gaming experiences
Prime X470-Pro features the very latest Intel Ethernet. Intel's LAN has the advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput for faster, smoother data transfer.
Immersive Audio
Realtek codec and unique design features for pristine, powerful audio
Prime X470-Pro utilizes a unique audio codec designed in close collaboration with Realtek - the Realtek S1220A. It also features an unprecedented 120dB signal-to-noise ratio for the stereo line-out and a 113dB SNR for the line-in, providing pristine audio quality. Additionally, a new impedance-sensing circuit automatically adjusts gain to ensure the optimal volume range for your headphones.
Crystal Sound 3
Flawless audio that immerses you in the game
Audio shielding
Separates analog/digital signal domains, significantly reducing multi-lateral interference.
Separate layer for left and right tracks
Ensures minimal crosstalk between audio paths.
Integrated amplifier
Capable of driving high-impedance headphones, without rolling-off high or low frequencies.
Premium Japanese-made audio capacitors
Premium parts provide an immersive sound signature, with exceptional fidelity.
AMD X470 chipset
The AMD X470 chipset delivers outstanding overclocking capabilities for the latest AMD® AM4-socket Ryzen™ processors, 7th Generation A S-series APUs and Athlon™ CPUs. It is optimized for multiple GPU configurations including NVDIA SLI™ and AMD CrossFireX™. It also provides two 10Gbps USB 3.1 Gen 2 ports and eight 6Gbps SATA ports for faster data retrieval.
AMD AM4 ATX motherboard with M.2 heatsink, DDR4 3466MHz, dual M.2, HDMI, SATA 6Gbps and USB 3.1 Gen 2 front-panel connector
- ASUS 5-Way Optimization: One-click, system-wide tuning for optimized overclocks and intelligent cooling for CPU- or GPU-intensive tasks
- Industry-leading cooling options: Comprehensive controls for fans and water pumps, via the Fan Xpert 4 software or the acclaimed ASUS UEFI
- M.2 heatsink: Ultra-efficient design reduces M.2 SSD temperature by up to 20°C for unthrottled transfer speeds and enhanced reliability
- Next-gen connectivity: Supreme flexibility with dual M.2 support, NVME RAID support, USB 3.1 Gen 2 ports and front-panel header
- ASUS Aura Sync: Industry-leading RGB ecosystem, with controllable onboard LEDs and wide range of Aura Sync-compatible components
Prime
ASUS Prime X470-Pro provides the solid foundation needed for your initial build, plus flexibility to grow with your ambitions. We've melded all the good stuff that's packed into the latest AMD Ryzen™ 2nd Generation processors with essential ASUS design and engineering, so you benefit from industry-leading technologies such as automated system tuning, comprehensive cooling controls, and immersive onboard audio. Build smart, easy and affordably, with ASUS Prime X470-Pro.
Awaken the True Potential
One-click overclock and cooling, done!
ASUS 5-Way Optimization makes your PC smart. One click takes care of complex tuning, dynamically optimizing essential aspects of the system to provide overclocking and cooling profiles that are tailored for your rig.
- An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.
- Fans stay whisper-quiet with everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.
- Stress test function helps optimize and overclock for CPU- or memory-centric workloads.
Make your memory faster
Featuring an array of trace layout tweaks that improve memory stability, Prime X470-Pro provides a potent foundation for your build. With comprehensive support for the full gamut of Ryzen memory configurations - from entry-level to performance-oriented - Prime X470-Pro is a versatile all-rounder that can work or play.
Reliable Cooling and Stability
Cooler by design
Prime X470-Pro features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.
Outshine the competition
Prime X470-Pro features ASUS Aura RGB for illumination that's aesthetic or informative. The choice is yours. ASUS Aura software offers control over hundreds of colors and dozens of effects. Use it to control built-in LEDs or LED strips and other Aura Sync-compatible gear connected to the onboard headers. Create a glow to match your environment, or have the LEDs react to changes in CPU temperature.
Keep your SSD cooler
Prime X470-Pro has an ultra-efficient heatsink to reduce M.2 SSD temperatures by up to 20C - and that means optimal storage performance and improved SSD longevity.
Protect your graphics card investment
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
One-stop Controls
Media-acclaimed UEFI BIOS
The smoothest, slickest mouse-controllable graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, EZ and Advanced modes will help you quickly find your way, quickly and easily.
Ultrafast Connectivity
Speed up with onboard M.2 - up to 32Gbps
With x4 PCI Express® 3.0/2.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It's the perfect choice for an operating system or application drive, providing fast access to data.
Native M.2/NVMe PCIe RAID
With X470-Pro you're free to join the storage fast lane and build a RAID 0 array using two PCIe drives to experience accelerated data transfers.
Future-proof connectivity
Prime X470-Pro's front panel USB 3.1 Gen 2 connector is ready for next-gen PC cases and devices.
Ultimate-speed 10Gbps with USB 3.1 Gen 2 onboard
With backward-compatible USB 3.1 Gen 2 Type-A™, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps - twice as fast as standard USB 3.1 Gen 1.
More throughput, less CPU usage and great gaming experiences
Prime X470-Pro features the very latest Intel Ethernet. Intel's LAN has the advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput for faster, smoother data transfer.
Immersive Audio
Realtek codec and unique design features for pristine, powerful audio
Prime X470-Pro utilizes a unique audio codec designed in close collaboration with Realtek - the Realtek S1220A. It also features an unprecedented 120dB signal-to-noise ratio for the stereo line-out and a 113dB SNR for the line-in, providing pristine audio quality. Additionally, a new impedance-sensing circuit automatically adjusts gain to ensure the optimal volume range for your headphones.
Crystal Sound 3
Flawless audio that immerses you in the game
Audio shielding
Separates analog/digital signal domains, significantly reducing multi-lateral interference.
Separate layer for left and right tracks
Ensures minimal crosstalk between audio paths.
Integrated amplifier
Capable of driving high-impedance headphones, without rolling-off high or low frequencies.
Premium Japanese-made audio capacitors
Premium parts provide an immersive sound signature, with exceptional fidelity.
AMD X470 chipset
The AMD X470 chipset delivers outstanding overclocking capabilities for the latest AMD® AM4-socket Ryzen™ processors, 7th Generation A S-series APUs and Athlon™ CPUs. It is optimized for multiple GPU configurations including NVDIA SLI™ and AMD CrossFireX™. It also provides two 10Gbps USB 3.1 Gen 2 ports and eight 6Gbps SATA ports for faster data retrieval.
AM4 socket for AMD Ryzen™ 2nd Generation / Ryzen™ with Radeon™ VEGA Graphics / Ryzen™ 1st Generation / 7th Generation A- Series / Athlon X4 Processors
The high-performance Ryzen™ processor supports up to eight cores, and is based on the innovative Zen core architecture. Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU. AMD AM4-socket processors feature dual-channel DDR4 memory, native 5Gbps USB 3.1 Gen 1 and 16 PCI Express® 3.0/2.0 lanes for superb performance.
90MB0XG0-M0EAY0
Data sheet
- .
- 1 x Front audio, 1 x System panel, 1 x Clear CMOS, 1 x 14-1 pin TPM, 1 x COM port, 1 x T_Sensor, 1 x USB 3.1 Gen 2 front panel
1 x Front audio1 x System panel1 x Clear CMOS1 x 14-1 pin TPM1 x COM port1 x T_Sensor1 x USB 3.1 Gen 2 front panel - PCI Express
- Ryzen 2nd/1st Gen CPUs
Ryzen 2nd/1st Gen CPUs:2 x PCIe 3.0 x16 (x16 or dual x8) Ryzen with Vega Graphics/7th Gen CPUs:1 x PCIe 3.0 x16 (x8 mode) AMD X470 chipset:1 x PCIe 2.0 x16 (max at x4 mode)3 x PCIe 2.0 x1 - Wireless
- -
- RAM Speeds
- Ryzen 2nd Gen CPUs
Ryzen 2nd Gen CPUs:3466(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHzRyzen w Vega Graphics 1st Gen CPUs:3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz7th Gen A-series/Athlon Processors:2400/2133 MHz - Accessories
- Users manual, ASUS Q-Shield, 2 x SATA 6Gb/s cables, 1 x M.2 Screw Package, 1 x Supporting DVD, 1 x SLI HB BRIDGE(2-WAY-M), 1 x Q-connector (1 in 1)
Users manualASUS Q-Shield2 x SATA 6Gb/s cables1 x M.2 Screw Package1 x Supporting DVD1 x SLI HB BRIDGE(2-WAY-M)1 x Q-connector (1 in 1) - USB Ports Supported
- "2 x USB 3.1 Gen2 Type-A (at back), 1 x USB 3.1 Gen1 Type-C (at back), 7 x USB 3.1 Gen1 (5 at back, 2 at mid-board), 4 x USB 2.0 (at mid-board), 1 x USB 3.1 Gen 2 front panel connector"
2 x USB 3.1 Gen2 Type-A (at back)1 x USB 3.1 Gen1 Type-C (at back)7 x USB 3.1 Gen1 (5 at back, 2 at mid-board)4 x USB 2.0 (at mid-board)1 x USB 3.1 Gen 2 front panel connector - Storage
- 6 x SATA III, 1 x M.2 Socket (2242/2260/2280/22110) - SATA & PCIe, 1 x M.2 Socket (2242/2260/2280) - SATA & PCIe
6 x SATA III1 x M.2 Socket (2242/2260/2280/22110) - SATA & PCIe1 x M.2 Socket (2242/2260/2280) - SATA & PCIe - RAID
- "RAID 0, 1, 10"
RAID 0, 1, 10 - Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- AM4
AMD AM4 - Chipset
- AMD X470
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 64GB
- Multi-GPU Support
- Supports NVIDIA 2-Way SLI, Supports AMD CrossFireX
Supports NVIDIA 2-Way SLISupports AMD CrossFireX - PCI
- -
- LAN
- GB LAN
- Audio
- Realtek S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
- Back Panel I/O Ports
- "1 x PS/2 keyboard/mouse, 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45), 2 x USB 3.1 Gen2 Type-A, , 1 x USB 3.1 Gen1 Type-C, 5 x USB 3.1 Gen1 , 1 x Optical S/PDIF out, 5 x Audio jacks"
1 x PS/2 keyboard/mouse1 x DisplayPort1 x HDMI1 x LAN (RJ45)2 x USB 3.1 Gen2 Type-A, 1 x USB 3.1 Gen1 Type-C5 x USB 3.1 Gen1 1 x Optical S/PDIF out5 x Audio jacks - Internal I/O Connectors
- 2 x Aura RGB Strip, 1 x USB 3.1 Gen1, 2 x USB 2.0, 2 x M.2 Socket 3, 6 x SATA 6Gb/s, 1 x CPU Fan, 1 x CPU OPT Fan, 3 x Chassis Fan, 1 x AIO_PUMP, 1 x W_PUMP+, 1 x 24-pin EATX, 1 x 8-pin ATX 12V
2 x Aura RGB Strip1 x USB 3.1 Gen12 x USB 2.02 x M.2 Socket 36 x SATA 6Gb/s1 x CPU Fan1 x CPU OPT Fan3 x Chassis Fan1 x AIO_PUMP1 x W_PUMP+1 x 24-pin EATX1 x 8-pin ATX 12V - CPU Support
- Click here for CPU support
See manufacturers link (next to product images) - Package Type
- Retail
- Package Weight
- 1.4700 kg
- Graphics Ports
- 1 x HDMI, 1 x DisplayPort
1 x HDMI1 x DisplayPort - Additional Features
- See Overview
- Graphics
- Integrated Graphics in the AMD Ryzen with Radeon Vega Graphics/ 7th Generation A-Series APU
- M.2 Slot(s)
- Yes
Yes (M.2) - No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- RGB Lighting
- Yes
Yes (RGB)
