- Out of stock

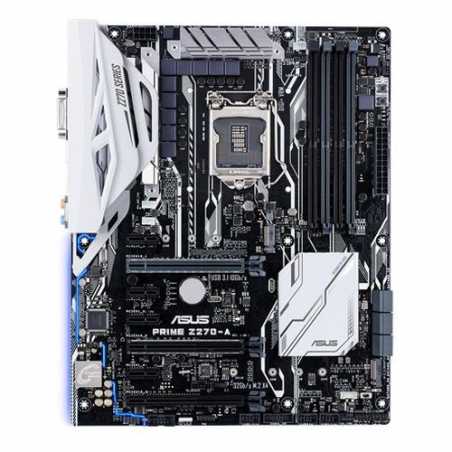

Asus PRIME Z270-A, Intel Z270, 1151, ATX, DDR4, XFire/SLI, DVI, HDMI, DP, RGB Lighting
£166.82
VAT included
Intel LGA-1151 ATX motherboard with Aura Sync, DDR4 3866MHz, dual M.2, Intel Optane memory ready, HDMI, SATA 6Gb/s, USB 3.1 Type-C
- 5-Way Optimization – One-click system-wide tuning that now also senses GPU temperatures to ensure cooler gaming
- ASUS Aura Sync – World’s 1st synced RGB lighting with easy controls to orchestrate Aura Sync-capable hardware
- 3D Printing Friendly – 1st motherboard brand to support 3D-printed parts, with dedicated 3D mounts for easy installation
- Refined Audio – Realtek S1220A codec provides pristine and powerful audio quality
- 5X Protection III: Multiple hardware safeguards to protect components from damage by power or electrical surges
Prime
______________________________________________________________
ASUS Prime is the next evolution of the ASUS motherboard, born of a pedigree that stretches back to 1989. Our team of world-class engineers are passionate about empowering everyone to enjoy the benefits of customization and tuning, and the driving force behind the development of Prime is to make advanced enthusiast controls easily accessible — maximizing performance, stability and compatibility for the very best DIY PC experiences. Simply stated: it's time for Prime.
Power At Your Fingertips
______________________________________________________________
One-click Overclock and Cooling
Get performance, efficiency, digital power, fan control and even networking and audio tuning tailored for you
One click takes care of all that complex tuning. ASUS 5-Way Optimization makes your PC smart. It dynamically optimizes essential aspects of your system based on real-time usage — so you get superb CPU performance, everyday energy savings, ultra-stable digital power, cool and quiet fans, and now networking and audio settings that are tailored to your apps. In short, 5-Way ASUS Optimization ensures that your PC is perfect for gaming, entertainment and productivity!
- Games run swiftly and smoothly with high performance, prioritized bandwidth and vivid sound.
- Fans stay whisper-quiet for everyday computing, and ensure extreme cooling efficiency when gaming.
- Stutter is eliminated for smooth-running apps, even under heavy loading.
- Energy waste is reduced so you'll save money.
Fan Xpert 4
ASUS Prime Z270-A features the most comprehensive fan controls ever, configurable via Fan Xpert 4 and UEFI BIOS.
Multiple temperature sources
Each header monitors and reacts to three thermal sensors that can now also sense temperature on ASUS graphics cards*
All-in-one water-cooling set
Full control of PWM or DC water pumps, perfect for both custom and self-contained cooling setups.
4-pin PWM/DC fan
Every onboard header supports auto-detection of PWM or DC fans.
High-amp fan support
A dedicated fan header that can supply up to 3 Amps, for high-speed high-current fans.
Smart protection
A dedicated integrated circuit protects each fan header from over-temperature and overcurrent.
Fan Extension Header
OC Design – ASUS PRO Clock Technology
A dedicated base-clock generator designed for 7th Generation Intel® processors allows overclocked base clock frequencies up to or beyond 425MHz*. This custom solution works in tandem with the ASUS TurboV processing unit to enhance voltage and base-clock overclocking control — providing an exciting new way to boost performance to extreme heights.
Advantages of Pro Clock
- Reduced boot time
- Lower jitter under extreme conditions for overclocks
- Increased stability under heavy overclocking
*BCLK overclocking range will vary according to CPU capabilities, cooling, motherboard support and tuning options. Ranges up to 650MHz are possible under select conditions.
DDR4 Overclocking Strength in Numbers
Third-generation ASUS T-Topology allows memory frequencies that are higher than ever — to 3866MHz and beyond. Refined manufacturing ensures ultra-consistent quality and minimal crosstalk between custom trace paths, so you'll enjoy the thrill of overclocking DDR4 with time-aligned signaling for superior stability and compatibility.
Hardware Upgrade Zone
SLI HB bridge (2-WAY-M)
The new ASUS SLI HB bridge doubles the available transfer bandwidth to provide silky-smooth surround gaming. Compatible with NVIDIA® Titan X, GeForce GTX 1080 and GeForce GTX 1070 graphics cards, SLI HB bridge is your fast track to gaming greatness.
Native M.2/NVMe PCIe RAID Support for
Lightning Fast Storage Speed
Not satisfied with single-storage device read/write speeds? Then join the fast lane and build a RAID 0 array using two PCIe storage drives to enjoy data transfers at lightning speeds!
Connect with Unparalleled Speeds
Intel Optane Memory Ready
Intel® Optane™ Memory* is a revolutionary (non-volatile memory) technology supported by Prime 200-series motherboards. Intel Optane Memory modules accelerate attached storage to reduce boot and load times, so everything feels faster and more responsive.
*Supports 7th Generation Intel® processors. Requires driver and BIOS update.
Speed Up with Onboard M.2 Up to 32Gb/s
With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gb/s data-transfer speeds. It is the perfect choice for an operating system or application drive, making your whole PC or professional apps work as fast as possible.
10Gb/s USB 3.1 Onboard
With backward-compatible USB 3.1 Type-A and reversible USB 3.1 Type-C ports, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gb/s (twice as fast as standard USB 3.0).
ThunderboltEX 3 for Blistering Speeds and USB-C Connectivity
Prime Z270-A supports the ThunderboltEX 3 card for breathtaking bi-directional Thunderbolt™ 3 transfer speeds of up to 40Gbps, 4x USB speeds, 2x video bandwidth; and for reversible USB 3.1 Type-C compatibility as well as high-powered 36W charging!
Media-acclaimed UEFI BIOS
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, EZ and Advanced modes help you find your way, quickly and easily.
Aura Sync and Audio Enhancement
______________________________________________________________
Outshine The
Description
Specification
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: 1151 - Sky Lake / Kaby Lake
- Chipset: Intel Z270
- #Hide#DDR Type: DDR4
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: 3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz
- Maximum Memory: 64GB
- Graphics: Supports Intel HD Graphics
- Graphics Ports: 1 x DVI-D
1 x HDMI
1 x DisplayPort - Multi-GPU Support: Supports NVIDIA 2-Way SLI
Supports AMD 3-Way CrossFireX - PCI Express: 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
4 x PCIe 3.0/2.0 x1 - PCI: -
- Storage: 6 x SATA III
1 x M.2 Socket (2242/2260/2280) - SATA & PCIe
1 x M.2 Socket (2242/2260/2280) - PCIe - RAID: "RAID 0, 1, 5, 10"
- Wireless: -
- LAN: GB LAN
- Audio: Realtek ALC S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
- USB Ports Supported: "2 x USB 3.1 portS (Type-A & C at back)
6 x USB 3.0 ports (4 at back, 2 at mid-board)
6 x USB 2.0 ports (at mid-board)" - Back Panel I/O Ports: 1 x PS/2 keyboard/mouse
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45)
1 x USB 3.1 Type-A
1 x USB 3.1 Type-C
4 x USB 3.0
1 x Optical S/PDIF out
5 x Audio jacks - Internal I/O Connectors: 1 x USB 3.0 connector
3 x USB 2.0 connectors
2 x M.2 Socket 3
6 x SATA 6Gb/s
1 x CPU Fan
1 x CPU OPT Fan
2 x Chassis Fan
1 x Thunderbolt
1 x 24-pin EATX
1 x 8-pin ATX 12V
1 x EZ XMP switch
1 x Front audio - .: 1 x System panel
1 x 5-pin EXT_FAN
1 x MemOK! button
1 x CPU OV
1 x Power-on button
1 x Clear CMOS jumper
1 x 14-1 pin TPM
1 x COM port
1 x High AMP Fan
1 x T_Sensor
1 x AIO PUMP
2 x 3D Mount screw ports - CPU Support: See manufacturers link (next to product images)
- Accessories: Users manual
ASUS Q-Shield
3 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD
1 x SLI HB BRIDGE(2-WAY-M)
1 x Q-connector(s) (1 in 1) - Package Type: Retail
- Additional Features: See Overview
- Package Weight: 1.3900 kg
- Warranty: 3 Years
90MB0RU0-M0EAY0
Data sheet
- .
- 1 x System panel, 1 x 5-pin EXT_FAN, 1 x MemOK! button, 1 x CPU OV, 1 x Power-on button, 1 x Clear CMOS jumper, 1 x 14-1 pin TPM, 1 x COM port, 1 x High AMP Fan, 1 x T_Sensor, 1 x AIO PUMP, 2 x 3D Mount screw ports
- PCI Express
- 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) , 1 x PCIe 3.0/2.0 x16 (max at x4 mode) , 4 x PCIe 3.0/2.0 x1
- Wireless
- -
- RAM Speeds
- 3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz
- Accessories
- Users manual, ASUS Q-Shield, 3 x SATA 6Gb/s cable(s), 1 x M.2 Screw Package, 1 x CPU installation tool, 1 x Supporting DVD, 1 x SLI HB BRIDGE(2-WAY-M), 1 x Q-connector(s) (1 in 1)
- USB Ports Supported
- "2 x USB 3.1 portS (Type-A & C at back), 6 x USB 3.0 ports (4 at back, 2 at mid-board), 6 x USB 2.0 ports (at mid-board)"
- Storage
- 6 x SATA III, 1 x M.2 Socket (2242/2260/2280) - SATA & PCIe, 1 x M.2 Socket (2242/2260/2280) - PCIe
- RAID
- "RAID 0, 1, 5, 10"
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- 1151 - Sky Lake / Kaby Lake
- Chipset
- Intel Z270
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 64GB
- Multi-GPU Support
- Supports NVIDIA 2-Way SLI, Supports AMD 3-Way CrossFireX
- PCI
- -
- LAN
- GB LAN
- Audio
- Realtek ALC S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
- Back Panel I/O Ports
- 1 x PS/2 keyboard/mouse, 1 x DVI-D, 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45), 1 x USB 3.1 Type-A, 1 x USB 3.1 Type-C, 4 x USB 3.0 , 1 x Optical S/PDIF out, 5 x Audio jacks
- Internal I/O Connectors
- 1 x USB 3.0 connector, 3 x USB 2.0 connectors, 2 x M.2 Socket 3, 6 x SATA 6Gb/s, 1 x CPU Fan, 1 x CPU OPT Fan, 2 x Chassis Fan, 1 x Thunderbolt, 1 x 24-pin EATX, 1 x 8-pin ATX 12V, 1 x EZ XMP switch, 1 x Front audio
- CPU Support
- See manufacturers link (next to product images)
- Package Type
- Retail
- Package Weight
- 1.3900 kg
- Graphics Ports
- 1 x DVI-D, 1 x HDMI, 1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Supports Intel HD Graphics
