- Out of stock

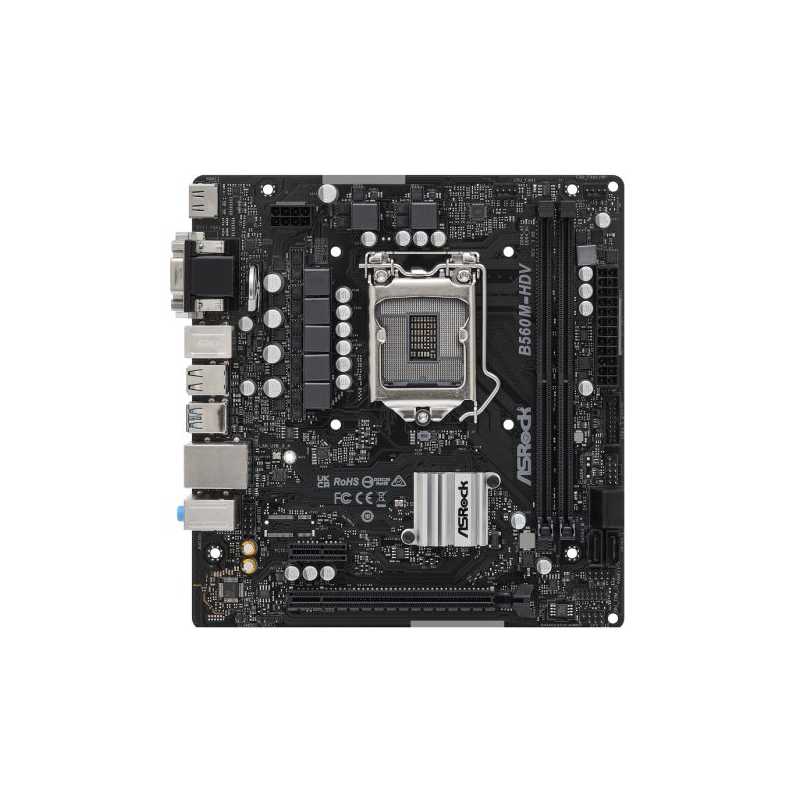

Asrock B560M-HDV R3.0, Intel B560, 1200, Micro ATX, 2 DDR4, VGA, DVI, HDMI
£69.33
VAT included
B560M-HDV R3.0
- Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
- Supports DDR4 4000+ MHz (OC)
- 1 x PCIe 4.0 x16*, 1 x PCIe 3.0 x1
- Graphics Output Options: HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
- 4 SATA3
- 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
- Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer
Premium 50A Power Choke
ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Clever Access Memory
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.
Base Frequency Boost (BFB) Technology
Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Base Frequency Boost) Technology, users may install their non K series CPUs to ASRock’s selected 500 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately.
While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
B560M-HDV R3.0
Data sheet
- Wireless
- -
- RAM Speeds
- 11th Gen CPUs: up to 4000+(OC)10th Gen CPUs: up to 3600+(OC)
- Accessories
- User Manual, Support CD, I/O Shield2 x SATA Data Cables
- USB Ports Supported
- Rear:2 x USB 3.2 Gen1 Type-A4 x USB 2.0Front:2 x USB 3.2 Gen1 Type-A2 x USB 2.0
- Storage
- 4 x SATA IIINo M.2 Slots
- Warranty
- 2 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- Intel 1200 - Rocket Lake
- Chipset
- Intel B560
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 64GB
- LAN
- GB LAN
- Audio
- 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
- Back Panel I/O Ports
- 1 x PS/2 Keyboard1 x PS/2 Mouse1 x D-Sub1 x DVI-D1 x HDMI2 x USB 3.2 Gen14 x USB 2.01 x RJ-45 LANHD Audio Jacks
- Internal I/O Connectors
- 1 x SPI TPM1 x Chassis Intrusion and Speaker1 x CPU Fan1 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x Front Panel Audio1 x USB 2.01 x USB 3.2 Gen1
- CPU Support
- Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200)
- Package Type
- Retail
- Graphics Ports
- 1 x VGA1 x DVI-D1 x HDMI
- Additional Features
- See Overview
- Graphics
- Integrated Graphics**Graphics specifications may vary between CPU types
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- PCI/PCI Express
- 1 x PCIe 4.0 x161 x PCIe 3.0 x1
