- Out of stock

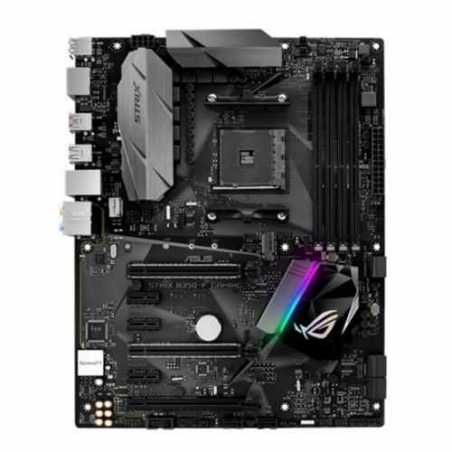

Asus ROG STRIX B350-F GAMING, AMD B350, AM4, ATX, 4 DDR4, XFire, HDMI, DP, RGB Lighting
£127.53
VAT included
AMD AM4 B350 ATX gaming motherboard with Aura Sync RGB LED, DDR4 3200MHz, M.2, SATA 6Gbps and USB 3.1
- The successor to Pro Gaming motherboards
- Aura Sync RGB LED: Stunning synchronized effects and two Aura 4-pin RGB-strip headers
- SupremeFX audio: Renowned audio performance with intuitive Sonic Studio III and Sonic Radar III
- 5-Way Optimization: One-click system-wide overclocking
- Gaming connectivity: M.2 and USB 3.1 Type-A connectors
- Gaming networking: Intel® Gigabit Ethernet, LANGuard and GameFirst technologies
- Gaming durability: ASUS SafeSlot and premium components for maximum durability
ROG Strix B350-F Gaming continues the proud legacy of the Pro Gaming series and features advanced ROG innovations. ROG Strix B350-F Gaming motherboards combine bold aesthetics with premier performance and incredible audio to deliver unrivaled gaming experiences and style. Support for the latest AMD processors and technologies, plus exclusive ROG innovations, take performance to the next level to give you the edge against opponents. ROG Strix B350-F Gaming charges every movement of every game with thrilling energy and equips you with epic speed and agility. Join the Republic with ROG Strix B350-F Gaming and dominate your game!
Lighting
Aura Lighting Control
Create your own custom LED lighting effects with the intuitive Aura software. Cast a stunning multi-color glow across your build with the powerful RGB LEDs built in to ROG Strix B350-F Gaming, or attach separate RGB strips using the two onboard 4-pin headers. You can even use both at the same time and enjoy perfect lighting synchronization. Fire up Aura and enjoy the creative freedom of twelve different lighting themes.
Outshine the Competition
ASUS Aura Sync RGB LED technology makes ROG Strix B350-F Gaming the control hub for your illumination ambitions - so it's easy to synchronize incredible lighting effects between compatible components, including RGB LED strips, graphics cards, keyboards and even mice! Change all LEDs in unison or employ dynamic modes to flow the illumination effects smoothly across all synchronized devices.
Audio
______________________________________________________________
______________________________________________________________
SupremeFX
Shielded Audio, Superior Sound
ROG's awesome SupremeFX audio technology has levelled up, delivering an exceptional 113dB signal-to-noise ratio on the line-in connection for best-ever ROG recording quality! We've also added a low-dropout regulator for cleaner power delivery to the SupremeFX S1220A codec, plus Texas Instruments® RC4580 and OPA1688 op-amps for high gain with low distortion. It all adds up to audio that envelops you as never before!
Sonic Studio III
ROG Sonic Studio III audio-effects station has an intelligent routing feature made for streaming. The new routing feature ports streams to different outputs, giving you full control over who hears what. With Sonic Studio, you now can share your exciting in-game moments without worrying about frivolous DCMA takedown requests. In addition to that, Sonic Studio III also comes with app-level preferences for instant audio profiles, and improved noise filtering for conversations with total clarity!
App-Specific Profiles
Apply customized audio settings to different applications, so everything you do is perfectly tuned to the way you want to listen.
Noise Filter
Automatically detects and eliminates unwanted background noises, ensuring that your communications are loud and clear.
Scan and Detect to Dominate
Sonic Radar III
We've given Sonic Radar III an overhaul, evolving the audio engine to process sounds more accurately than ever, ensuring you're always aware of what's going on around you - and we've even added an onscreen arrow to help you pinpoint the enemy's position instantly! See the origin of key in-game sounds and hone your enemy-pinpointing skills. Plus the new audio boost feature provides filters that let you hear even the faintest sounds, so you can become the hunter, not the hunted!
Improved Audio Algorithm
The new Sonic Radar III audio algorithm is now even more accurate to allow enemies to be pinpointed with even more accuracy.
3D Engine
Sonic Radar III is built around it's all new HUD with an in-game 3 dimensional arrow for a more intuitive experience.
Audio Boost
The new audio boost feature now allows the boosted audio to be heard directly.
Audio Radar
Sonic Radar III is effective regardless of surrounding noise and chaos.
Performance
______________________________________________________________
Third-Generation Asus T-Topology
DDR4 Overclocking. Strength in Numbers
With support for DDR4 memory, ROG Strix B350-F Gaming lets you drive memory frequencies to 3200MHz and beyond when overclocked! ASUS-exclusive T-Topology circuit design provides superb memory-overclocking capability to unleash the full power of DDR4 by minimizing coupling noise and signal reflection. With innovative equidistant memory channels, T-Topology delivers balanced control and powerful overclocking compatibility.
5-way Optimization
Get Performance, Efficiency, Digital Power, Fan Control and Even Networking and Audio Tuning Tailored for You - and the Way You Play!
You don't need to be an expert to max out gaming performance on your ROG Strix B350-F Gaming build - because 5-Way Optimization sorts all the complex settings with a click, for instant, highly-controllable performance boosts! Our exclusive technology dynamically optimizes essential aspects of your system based on real-time use, so you get superb CPU performance, everyday energy savings, ultra-stable digital power, cool and quiet fans and even networking and audio settings that are tailored for the apps that you are using. In short, 5-Way Optimization ensures that your PC is perfect for gaming, entertainment, productivity or just about anything else!
Games run swiftly and smoothly with high performance, prioritized bandwidth, and vivid sound.
Fans stay whisper-quiet for everyday computing and ensure extreme cooling efficiency when gaming.
Stutter is eliminated, ensuring smooth-running apps -- even under heavy loading.
Energy efficiency is improved, so you'll save money.
Cooler by Design
Play quieter and cooler with advanced fan and water-pump controls for the ultimate in undisturbed gaming. With onboard thermal sensors and hardware-level 4-pin/3-pin PWM/DC mode detection, Fan Xpert 4 makes sure every fan achieves the best balance of high cooling performance and low noise -- so you enjoy all the performance you demand with none of the racket!
RAMCACHE II
Speed Your Game Loads
Uniquely intelligent technology that effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds, getting to work the moment it'
Description
Specification
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: AM4
- Chipset: AMD B350
- #Hide#DDR Type: DDR4
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: Ryzen Processors:
3200(O.C.)/2933(O.C.)/2666/2400/2133 M
7th Gen A-series/Athlon Processors:
2400/2133 MHz - Maximum Memory: 64GB
- Graphics: Integrated AMD Radeon R Series Graphics in the 7th Generation A-Series APU
- Graphics Ports: 1 x HDMI
1 x DisplayPort - Multi-GPU Support: Supports AMD 3-Way CrossFireX Technology
- PCI Express: AMD Ryzen CPUs
2 x PCIe 3.0/2.0 x16 (x16 or x8/x4)
AMD 7th Gen A-series/Athlon CPUs
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD A320 chipset
1 x PCIe 2.0 x16 (max at x4 mode)
3 x PCIe 2.0 x1 - PCI: -
- Storage: 6 x SATA III
1 x M.2 Socket (2242/2260/2280/22110) - SATA & PCIe - RAID: "RAID 0, 1, 10"
- Wireless: -
- LAN: GB LAN
- Audio: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- USB Ports Supported: "AMD Ryzen/7th Gene A-series/Athlon CPUs:
4 x USB 3.1 Gen 1 (at back)
AMD B350 chipset:
2 x USB 3.1 Gen 2 (at back)
AMD B350 chipset:
2 x USB 3.1 Gen 1 (at mid-board)
AMD B350 chipset :
6 x USB 2.0 (2 at back, 4 at mid-board)" - Back Panel I/O Ports: 1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) ports
2 x USB 3.1 Gen 2 Type-A
4 x USB 3.1 Gen 1
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jacks - Internal I/O Connectors: 2 x RGB Headers
1 x USB 3.1 Gen 1 connector
2 x USB 2.0 connector
1 x M.2 Socket 3
1 x TPM
1 x COM port
6 x SATA 6Gb/s
1 x CPU Fan
1 x CPU OPT Fan
3 x Chassis Fan
1 x AIO_PUMP
1 x 24-pin EATX - .: 1 x 8-pin ATX 12V
1 x Front audio
1 x Thermal sensor
1 x Clear CMOS
1 x System panel - CPU Support: See manufacturers link (next to product images)
- Accessories: I/O Shield
4 x SATA cables
1 x M.2 Screw Pack
1 x ROG Strix stickers
1 x 10-in-1 ROG cable label
1 x Cable ties pack
1 x ExtCable for RGB strips
1 x ROG coaster - Package Type: Retail
- Additional Features: See Overview
- Package Weight: 1.4600 kg
- Warranty: 3 Years
90MB0UJ0-M0EAY0
Data sheet
- .
- 1 x 8-pin ATX 12V, 1 x Front audio, 1 x Thermal sensor, 1 x Clear CMOS, 1 x System panel
- PCI Express
- AMD Ryzen CPUs, 2 x PCIe 3.0/2.0 x16 (x16 or x8/x4) , , AMD 7th Gen A-series/Athlon CPUs, 1 x PCIe 3.0/2.0 x16 (x8 mode) , , AMD A320 chipset, 1 x PCIe 2.0 x16 (max at x4 mode), 3 x PCIe 2.0 x1
- Wireless
- -
- RAM Speeds
- Ryzen Processors
- Accessories
- I/O Shield, 4 x SATA cables, 1 x M.2 Screw Pack, 1 x ROG Strix stickers, 1 x 10-in-1 ROG cable label, 1 x Cable ties pack, 1 x ExtCable for RGB strips, 1 x ROG coaster
- USB Ports Supported
- "AMD Ryzen/7th Gene A-series/Athlon CPUs
- Storage
- 6 x SATA III, 1 x M.2 Socket (2242/2260/2280/22110) - SATA & PCIe
- RAID
- "RAID 0, 1, 10"
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- AM4
- Chipset
- AMD B350
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 64GB
- Multi-GPU Support
- Supports AMD 3-Way CrossFireX Technology
- PCI
- -
- LAN
- GB LAN
- Audio
- ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Back Panel I/O Ports
- 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45) ports, 2 x USB 3.1 Gen 2 Type-A, 4 x USB 3.1 Gen 1 , 2 x USB 2.0 , 1 x Optical S/PDIF out, 5 x Audio jacks
- Internal I/O Connectors
- 2 x RGB Headers, 1 x USB 3.1 Gen 1 connector, 2 x USB 2.0 connector, 1 x M.2 Socket 3, 1 x TPM, 1 x COM port, 6 x SATA 6Gb/s, 1 x CPU Fan, 1 x CPU OPT Fan, 3 x Chassis Fan, 1 x AIO_PUMP, 1 x 24-pin EATX
- CPU Support
- See manufacturers link (next to product images)
- Package Type
- Retail
- Package Weight
- 1.4600 kg
- Graphics Ports
- 1 x HDMI, 1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated AMD Radeon R Series Graphics in the 7th Generation A-Series APU
