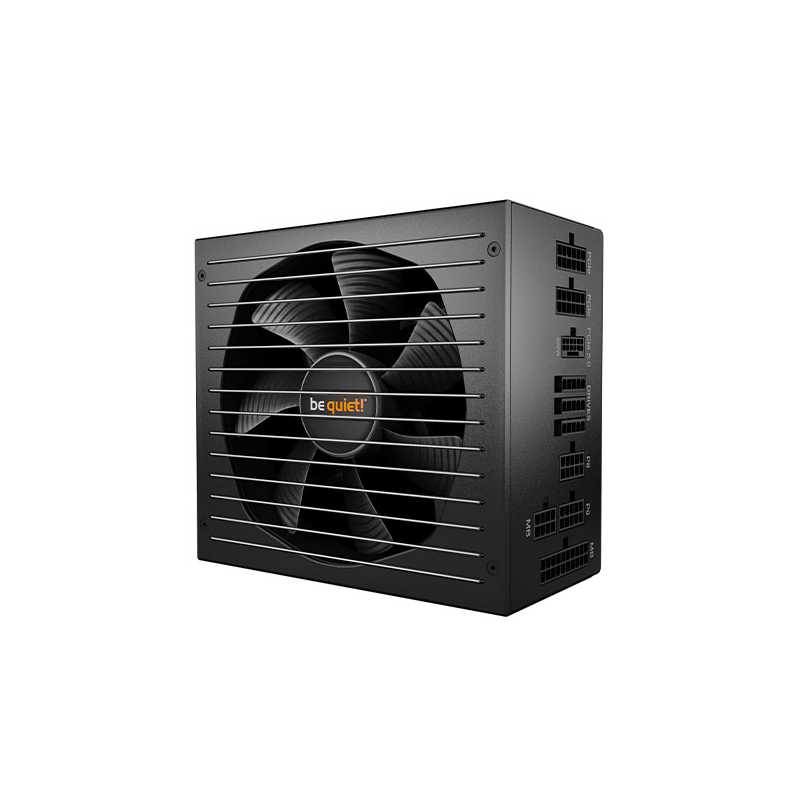

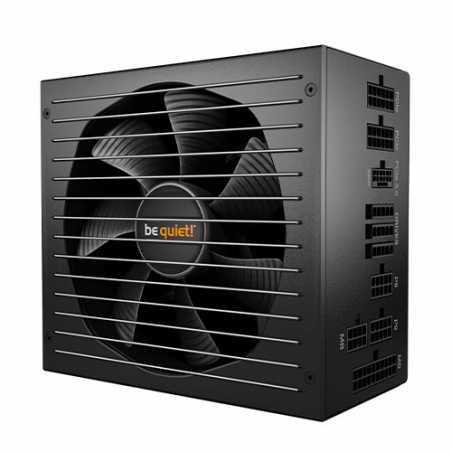

Be Quiet! 1000W Straight Power 12 PSU, Fully Modular, 80+ Platinum, Silent Wings Fan, ATX 3.0, PCIe 5.0
£169.17
VAT included
Delivered within 1-2 days.
World Class Quiet And Efficiency
Straight Power 12 is a future-proof ATX 3.0 power supply with 80 PLUS Platinum certification and virtually inaudible operation.
- 80 PLUS Platinum efficiency (up to 93,9%)
- ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
- Handles massive power excursions
- Virtually inaudible Silent Wings 135mm fan
- Funnel-shaped fan opening on PSU case for high airflow intake
- Full bridge LLC technology for unmatched signal stability
- One massive high-performance 12V-rail
- Japanese 105C capacitors ensure highest stability and reliability
- Modular cable management for maximum convenience
- 10-year manufacturer's warranty
80 PLUS Platinum Certified
Highly efficient operation
Straight Power 12 1000W is certified with 80 PLUS Platinum and an energy efficiency rating of up to 93.9%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation.
Futureproof Your Systsem
Fulfills all ATX 3.0 specifications
Straight Power 12 1000W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.
The New Standard Of Power
For massive transient loads
Straight Power 12 offers 1000W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Straight Power 12 1000W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
Silent Wings Fan
Provides virtually inaudible operation
The high-end Silent Wings fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal
power consumption.
Flawless Cooling Concept
For a longer lifespan
The funnel-shaped fan inlet of the Straight Power 12 1000W increases airflow while reducing unwanted turbulence for a higher cooling performance. The wire-free design inside allows the cool air to reach all components which ultimately leads to a longer lifespan.
State-Of-The-Art Technologies
Rock-steady signal stability and efficiency
With full bridge LLC Straight Power 12 1000W offers advanced technologies, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.
Japanese 105 Capacitors
A testament to high quality
Only premium components are used in Straight Power 12 1000W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105C for stability, reliability, and a long operating life.
Convinience and Conectivity
Maximum utility
Modular, sleeved cables of up to 100cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling - even in the largest PC cases.
BN338
11 Items
Data sheet
- Warranty
- 10 Years
- Form Factor
- ATX
- Additional Features
- See Overview / Videos
- Series
- Be Quiet! Straight Power 12
- Weight/Dimensions
- 1.85 kg(LxWxH) 180 x 150 x 86 mm
- Package Contents
- PSUScrewsCable tiesUser manual
- Connectors
- 1 x ATX-Motherboard (20+4-pin)1 x P4+4 (CPU)1 x P8 (CPU)2 x 12VHPWR cables4 x PCI-e 6+2-pin (GPU)9 x SATA2 x PATA
- Wattage
- 1000 W
- Compatability
- ATX 3.0EPS 12V v2.92PCIe 5.0
- Efficiency
- 230V, 2% load: 64.0%230V, 10% load: 88.1%230V, 20% load: 92.2%230V, 50% load: 93.9%230V, 100% load: 91.8%
- Modular
- Fully Modular
- Rail Design
- One massive high-performance 12V-rail
- AC Input
- AC 100-240 V
- Fan Type
- 135mm Silent Wings fan
- Noise
- dB(A) at 10% load: 7.7dB(A) at 20% load: 7.7dB(A) at 50% load: 8dB(A) at 100% load: 328.9
- Fan Bearing
- Fluid / Hydraulic Bearing
- Protection
- OTP (over temperature protection)OCP (over current protection)OPP (over power protection)SCP (short circuit protection)OVP (over Voltage protection)UVP (under Voltage protection)SIP (Surge & Inrush Protection)
- 80+ Certification
- 80+ Platinum
- Wattage Range
- 1000 - 1200W
