- Out of stock

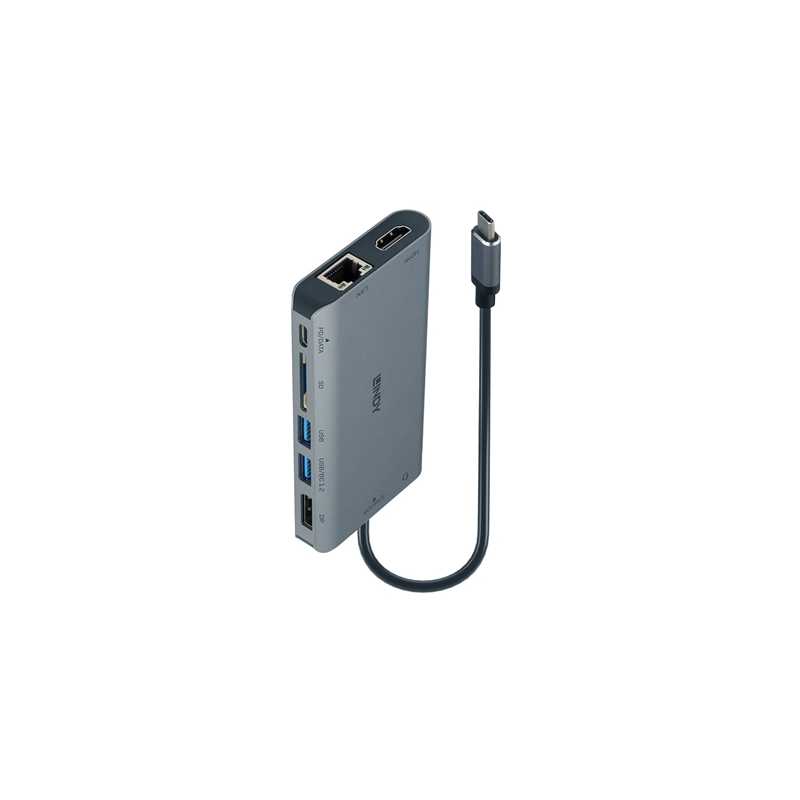

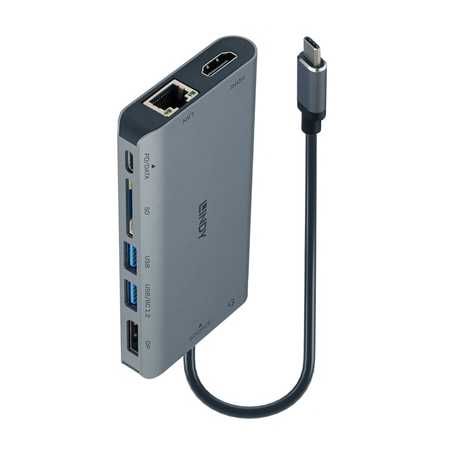

LINDY 43323 DST-Mini XT, USB-C Laptop Mini Docking Station with Single Display (4K) or Dual Display (Full HD) & 100W Pass-Throug
£84.34
VAT included
Extended Displays
The DST-Mini XT can support a single extended display at 4K@30Hz through the HDMI or DisplayPort connections. Dual display setups are also possible with crisp Full HD 1080p. This makes this dock the perfect solution for any creative, data analyst or intense spreadsheet worker.
Added Connectivity
This docking station can unlock a world of connectivity for your device. Delivering DisplayPort, HDMI, Gigabit Ethernet, SD Card Slot, USB-C, SuperSpeed USB Type A ports (5Gbps) and a combined 3.5mm headphone jack. To deliver as much added functionality as possible, the right USB Type A port has both SuperSpeed data transfer and Battery Charging 1.2, meaning you can charge connected mobile devices.
Pass-through Charging
Thanks to the USB-C PD 3.0, by connecting a USB-C charger to the DST-Mini XT you can expect up to 100W charging of the connected laptop. With Battery Charging 1.2, one of USB Type A port delivers 5V and up to 1.5A for faster charging. Simply connect one USB-C cable and be confident that your laptop and connected devices will be fully charged and ready to go.
Plug-and-Play
This docking station does not require any driver installation. This allows for seamless large-scale implementation and a hassle-free experience.
Specifications
Interface: USB Type C to 1x HDMI / 1x DP / 1x RJ45 / 2x USB Type A / 1x USB Type C / 1x SD / 1x Audio
Interface Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0, HDMI 1.4, DP 1.2, Gigabit LAN, Audio (combo)
Supported Bandwidth: 5 Gbps, 10/100/1000 Mbps
Maximum Input Resolution: 3840x2160@30Hz
Maximum Output Resolution: 3840x2160@30Hz (HDMI), 3840x2160@30Hz (DP), simultaneous connection: 1920x1080
Chipset: VL102-Q4, VMM3332, RTL8153B, VL817, FE1.1S, GL823K, HS-100B, VL163, MP28167
Compatibility: USB Type C or Thunderbolt 3/4 equipped computers with DisplayPort Alternate Mode support. Windows, macOS, Linux, Android, ChromeOS
Power Delivery: PD 3.0 up to 100W (20V 5A)
HDCP Support: HDCP 1.4
Supported Audio: Supports 48/44.1kHz Audio sampling rate
Separate Audio Ports: 1x Audio combo port 3.5mm
Special Features: DisplayPort Alternate Mode, USB Type C Female port supports power and data, 1x Battery Charging 1.2 port
Connectors
Inputs: 1 x USB Type C (Male)
Outputs: 1x HDMI (Female), 1x DisplayPort (Female), 1x RJ45 (Female), 2x USB Type A (Female), 1x USB Type C (Female) / 1x SD slot, 1x 3.5mm Audio (Female)
Power: 1 x USB Type C (Female) PD port
Physical Properties
Dimensions WxDxH: 116.5x61x16mm (4.59x2.4x0.63in)
(Fixed) cable length: 250mm (9.84in)
Housing Material: Aluminium
Net Weight: 0.115kg (0.25lb)
Operating Temperature: 0° - 55°C (32°F - 131°F)
Storage Temperature: -10°C - 70°C (-14°F - 158°F)
Humidity: 0 - 85% RH (non-condensing)
Power Requirements: 15W
Colour: Grey
Miscellaneous
Packaging Type: Carton Box
Packaging Dimensions: 150x137x120mm (5.91x5.39x0.79in)
Gross Weight: 0.15kg (0.33lb)
Warranty (Years): 2
Certificated: CE, UKCA, FCC, REACH & RoHS, California Proposition 65
Package Contents
USB 3.2 Type C Laptop Mini Dock
Lindy Manual
The DST-Mini XT can support a single extended display at 4K@30Hz through the HDMI or DisplayPort connections. Dual display setups are also possible with crisp Full HD 1080p. This makes this dock the perfect solution for any creative, data analyst or intense spreadsheet worker.
Added Connectivity
This docking station can unlock a world of connectivity for your device. Delivering DisplayPort, HDMI, Gigabit Ethernet, SD Card Slot, USB-C, SuperSpeed USB Type A ports (5Gbps) and a combined 3.5mm headphone jack. To deliver as much added functionality as possible, the right USB Type A port has both SuperSpeed data transfer and Battery Charging 1.2, meaning you can charge connected mobile devices.
Pass-through Charging
Thanks to the USB-C PD 3.0, by connecting a USB-C charger to the DST-Mini XT you can expect up to 100W charging of the connected laptop. With Battery Charging 1.2, one of USB Type A port delivers 5V and up to 1.5A for faster charging. Simply connect one USB-C cable and be confident that your laptop and connected devices will be fully charged and ready to go.
Plug-and-Play
This docking station does not require any driver installation. This allows for seamless large-scale implementation and a hassle-free experience.
Specifications
Interface: USB Type C to 1x HDMI / 1x DP / 1x RJ45 / 2x USB Type A / 1x USB Type C / 1x SD / 1x Audio
Interface Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0, HDMI 1.4, DP 1.2, Gigabit LAN, Audio (combo)
Supported Bandwidth: 5 Gbps, 10/100/1000 Mbps
Maximum Input Resolution: 3840x2160@30Hz
Maximum Output Resolution: 3840x2160@30Hz (HDMI), 3840x2160@30Hz (DP), simultaneous connection: 1920x1080
Chipset: VL102-Q4, VMM3332, RTL8153B, VL817, FE1.1S, GL823K, HS-100B, VL163, MP28167
Compatibility: USB Type C or Thunderbolt 3/4 equipped computers with DisplayPort Alternate Mode support. Windows, macOS, Linux, Android, ChromeOS
Power Delivery: PD 3.0 up to 100W (20V 5A)
HDCP Support: HDCP 1.4
Supported Audio: Supports 48/44.1kHz Audio sampling rate
Separate Audio Ports: 1x Audio combo port 3.5mm
Special Features: DisplayPort Alternate Mode, USB Type C Female port supports power and data, 1x Battery Charging 1.2 port
Connectors
Inputs: 1 x USB Type C (Male)
Outputs: 1x HDMI (Female), 1x DisplayPort (Female), 1x RJ45 (Female), 2x USB Type A (Female), 1x USB Type C (Female) / 1x SD slot, 1x 3.5mm Audio (Female)
Power: 1 x USB Type C (Female) PD port
Physical Properties
Dimensions WxDxH: 116.5x61x16mm (4.59x2.4x0.63in)
(Fixed) cable length: 250mm (9.84in)
Housing Material: Aluminium
Net Weight: 0.115kg (0.25lb)
Operating Temperature: 0° - 55°C (32°F - 131°F)
Storage Temperature: -10°C - 70°C (-14°F - 158°F)
Humidity: 0 - 85% RH (non-condensing)
Power Requirements: 15W
Colour: Grey
Miscellaneous
Packaging Type: Carton Box
Packaging Dimensions: 150x137x120mm (5.91x5.39x0.79in)
Gross Weight: 0.15kg (0.33lb)
Warranty (Years): 2
Certificated: CE, UKCA, FCC, REACH & RoHS, California Proposition 65
Package Contents
USB 3.2 Type C Laptop Mini Dock
Lindy Manual
