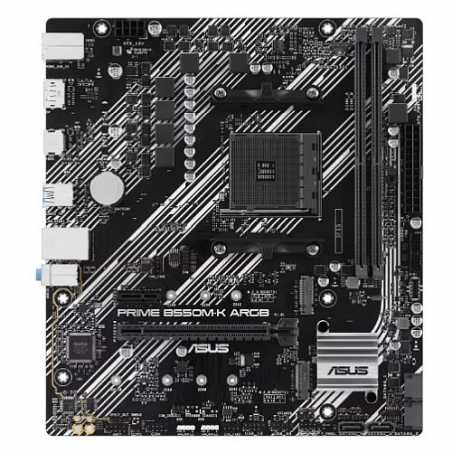

Asus PRIME B550M-K ARGB, AMD B550, AM4, Micro ATX, 2 DDR4, HDMI, DP, PCIe4, 2x M.2
£104.72
VAT included
Delivered within 1-2 days.
AMD B550 (Ryzen™ AM4) mATX motherboard with dual M.2 slots, PCIe 4.0, Realtek 1Gb Ethernet, DisplayPort/HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 1 ports, front USB 3.2 Gen 1 Type-C® and Aura Sync
- AMD AM4 Socket: Ready for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Ultrafast Connectivity: PCIe 4.0, dual M.2 slots, Realtek 1Gb Ethernet, rear USB 3.2 Gen 1 ports and front USB 3.2 Gen 1 Type-C®
- Comprehensive Cooling: PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
Prime
ASUS PRIME series is expertly engineered to unleash the full potential of 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
ASUS PRIME series is expertly engineered to unleash the full potential of 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Flexibility
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B550 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Cooling
PRIME B550 series are engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Performance
PRIME B550 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
Customisation
The PRIME B550 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
Outstanding Audio
90MB1GC0-M0EAY0
16 Items
Data sheet
- .
- 1 x Front Panel Audio1 x S/PDIF Out1 x Speaker1 x SPI TPM (14-1 pin)1 x 10-1 pin System Panel
- Wireless
- -
- RAM Speeds
- Up to 5100(OC)
- Accessories
- 2 x SATA 6Gb/s cables1 x I/O Shield1 x Screw Package for M.2 SSD1 x User guide
- USB Ports Supported
- Rear:4 x USB 3.2 Gen1 Type-A2 x USB 2.0Front:1 x USB 3.2 Gen1 Type-C2 x USB 3.2 Gen14 x USB 2.0
- Storage
- 4 x SATA III1 x M.2 (242/2260/2280) - SATA & PCIe 4.0 x4 1 x M.2 (2242/2260/2280/22110) - SATA & PCIe 3.0 x4
- RAID
- AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- AMD AM4
- Chipset
- AMD B550
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 64GB
- LAN
- GB LAN
- Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- Back Panel I/O Ports
- 4 x USB 3.2 Gen1 Type-A2 x USB 2.01 x DisplayPort1 x HDMI1 x Realtek 1Gb Ethernet3 x Audio jacks1 x PS/2 Keyboard/Mouse combo
- Internal I/O Connectors
- 1 x 4-pin CPU Fan2 x 4-pin Chassis Fan1 x 24-pin Main1 x 8-pin +12V2 x M.2 (Key M)4 x SATA 6Gb/s1 x USB 3.2 Gen1 USB Type-C1 x USB 3.2 Gen12 x USB 2.03 x Addressable Gen21 x Clear CMOS1 x COM Port
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated Graphics Processor*Graphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- PCI/PCI Express
- 1 x PCIe 4.0 x16 (supports x16 mode)1 x PCIe 3.0 x16 (supports x16 mode)1 x PCIe 3.0 x1
