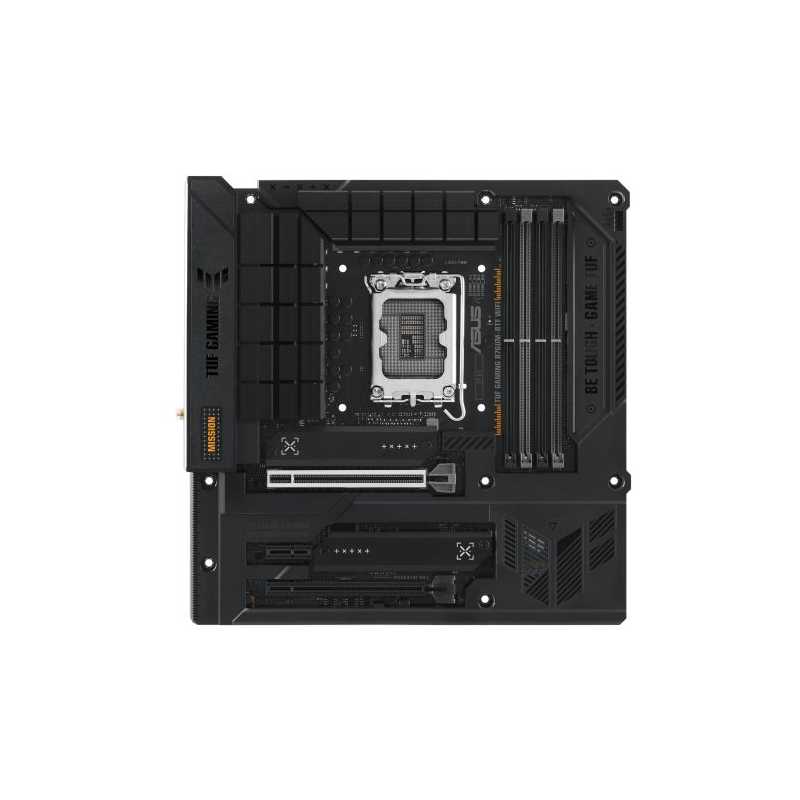

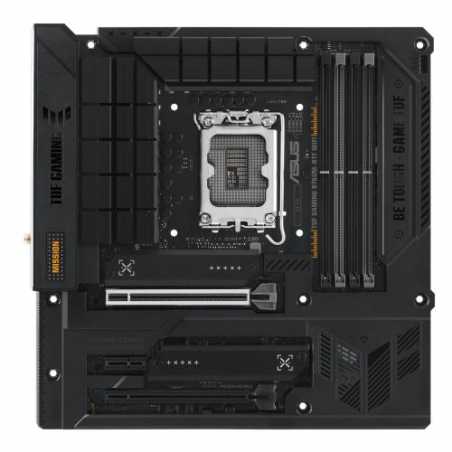

Asus TUF GAMING B760M-BTF WIFI, Intel B760, 1700, Micro ATX, 4 DDR5, HDMI, DP, Wi-Fi 6, 2.5G LAN, PCIe5, 3x M.2
£216.15
VAT included
Delivered within 1-2 days.
The TUF GAMING B760M-BTF WIFI takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability.
“BTF” means “Back To (the) Future” for a new era for all PC DIY gamers; the BTF series hides its connectors on the underside of the motherboard for clean cable management and a minimalist build appearance.
This motherboard is engineered with military-grade components, an upgraded power solution and a comprehensive cooling system so that it can go beyond expectations with rock-solid performance and marathon gaming.
- 12+1 DrMOS power stages with enlarged VRM heatsinks
- PCIe® 5.0 for graphics cards
- DDR5 memory module support
- USB 3.2 Gen 2x2 Type-C®
- 2.5 Gb Ethernet
- WiFi 6
- Hidden-connector design for clean cable management
- Two-Way AI Noise Cancelation
Intelligent Control
The TUF GAMING B760M motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.
Rock-Solid Performance
With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR5 memory and PCIe 4.0 storage, the TUF GAMING B760M-BTF WIFI is the perfect foundation for your next Intel battle rig.
Easy PC DIY
The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 2+, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.
Immersive Gaming
TUF GAMING B760M motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.
** Click here for full product details **
90MB1G50-M0EAY0
3 Items
Data sheet
- .
- 3 x Addressable Gen21 x Aura RGB1 x COM Port1 x Front Panel Audio1 x 10-1 pin System Panel1 x Thunderbolt (USB4)
- Wireless
- Wi-Fi 62x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)Supports 2.4/5GHz frequency bandBluetooth v5.2
- RAM Speeds
- Up to 7200(OC)
- Accessories
- 2 x SATA 6Gb/s cables1 x ASUS Wi-Fi moving antenna1 x TUF Gaming sticker1 x M.2 Rubber Package1 x Screw package for M.2 SSD1 x User guide
- USB Ports Supported
- Rear:1 x USB 3.2 Gen2x2 Type-C2 x USB 3.2 Gen2 (1 Type-A, 1 Type-C)3 x USB 3.2 Gen1 (2 Type-A, 1 Type-C)4 x USB 2.0Front:1 x USB 3.2 Gen2 Type-C2 x USB 3.2 Gen14 x USB 2.0
- Storage
- 4 x SATA III1 x M.2 (2242/2260/2280) - PCIe 4.0 x41 x M.2 (2242/2260/2280) - PCIe 4.0 x41 x M.2 (2280) - PCIe 4.0 x4
- RAID
- Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- Intel 1700
- Chipset
- Intel B760
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)Supports Intel Extreme Memory Profile (XMP)OptiMem II
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 192GB
- LAN
- 2.5GB LAN
- Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- Back Panel I/O Ports
- 1 x USB 3.2 Gen2x2 Type-C2 x USB 3.2 Gen2 (1 Type-A, 1 Type-C)3 x USB 3.2 Gen1 (2 Type-A, 1 USB Type-C)4 x USB 2.01 x DisplayPort1 x HDMI1 x Wi-Fi Module1 x Realtek 2.5Gb Ethernet3 x Audio jacks1 x Clear CMOS button
- Internal I/O Connectors
- 1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan1 x 4-pin AIO Pump3 x 4-pin Chassis Fan1 x 24-pin Main1 x 8-pin +12V1 x 4-pin +12V3 x M.2 (Key M)4 x SATA 6Gb/s1 x USB 3.2 Gen2 Type-C1 x USB 3.2 Gen12 x USB 2.0
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated Graphics**Graphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 2.5GB LAN
- PCI/PCI Express
- 1 x PCIe 5.0 x161 x PCIe 4.0 x16 (supports x4 mode)1 x PCIe 4.0 x1
- Wi-Fi
- Yes (Wi-Fi)
