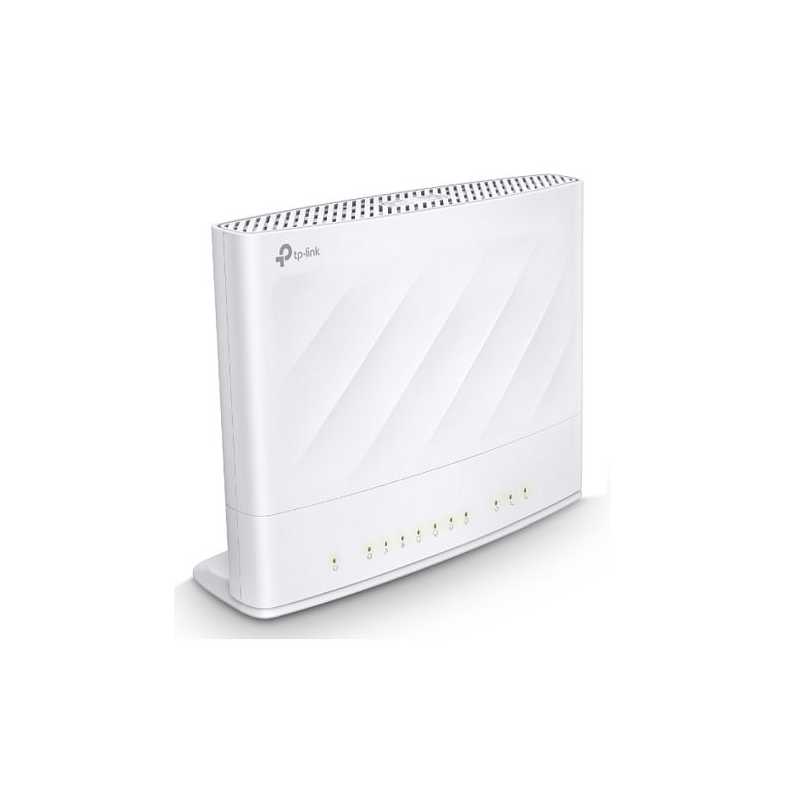

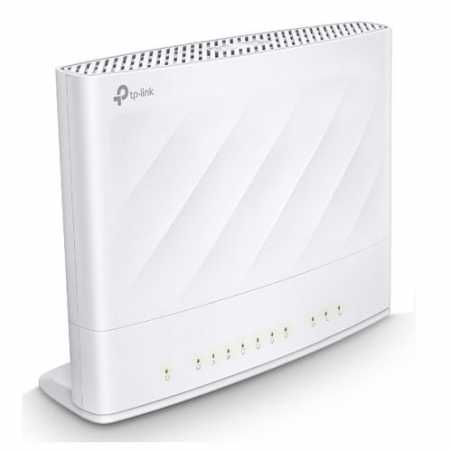

TP-LINK Aginet (EX230v) AX1800 Dual Band Wi-Fi 6 Gigabit VoIP Router, Telephony, EasyMesh, Remote Management, 1 WAN, 3 LAN, USB
search
  • TP-LINK Aginet (EX230v) AX1800 Dual Band Wi-Fi 6 Gigabit VoIP Router, Telephony, EasyMesh, Remote Management, 1 WAN, 3 LAN, USB

TP-LINK Aginet (EX230v) AX1800 Dual Band Wi-Fi 6 Gigabit VoIP Router, Telephony, EasyMesh, Remote Management, 1 WAN, 3 LAN, USB

£57.15
VAT included
Stock status: Moderate
58 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%






AX1800 Dual-Band Wi-Fi 6 Gigabit VoIP Router


  • AX1800 Dual-Band Wi-Fi 6: 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz).*
  • 802.11ax Technology: Create a seamless Wi-Fi network in your home with the revolutionary combination of OFDMA, MU-MIMO, and Beamforming technologies.**
  • Ultra Connectivity: 1x Gigabit WAN + 3 x Gigabit LAN Ethernet ports and USB 2.0 port provide warp speeds and flexible internet access.
  • EasyMesh: Provides whole-home Wi-Fi coverage with standard mesh technology.
  • Telephony: Make or receive phone calls over the internet simply.
  • Easy Setup: Set up your router in minutes with the powerful TP-Link Aginet App.
  • TR-069 & TR-369 Remote Management: TR-098, TR-181, TR-111, and TR-143 are supported.



*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

**Use of Wi-Fi 6 (802.11ax), and its features including OFDMA, and 1024-QAM require clients to also support the corresponding features.

EX230V
58 Items

Data sheet

Warranty
3 Years
Package Type
Retail
Package Weight
0.8700 kg
Dimensions
199.7 x 148.6 x 67.5 mm
Type
VoIP Router
Power Supply
External Power Supply: 12V/1.5A
Interface(s)
3 x 10/100/1000 Mbps RJ45 LAN1 x 10/100/1000 Mbps RJ45 WAN1 x FXS Port1 x USB 2.0
Package Contents
Dual-Band Wi-Fi 6 Gigabit VoIP Router EX230vPower AdapterRJ45 Ethernet CableQuick Installation Guide
Wireless Functions
Enable/Disable Wireless Radio, WMM, Wireless Statistics
Button(s)
Power On/Off Button, Reset Button, Wi-Fi Button, WPS Button
Connectivity
Wireless
Max Wireless Transfer Rate
1201 Mbps
Max Wired Transfer Rate
10/100/1000 Mbps
Signal Rate
5 GHz: 1201 Mbps2.4 GHz: 574 Mbps
Bands
Dual Band
Management
Access Control, Local Management, Remote Management, TR-069(TR-098/TR-181), TR-111, TR-143Aginet App
Frequency
2.4 GHz and 5 GHz
Environment
Operating Temperature: 0°C–40°C (32°F –104°F)Storage Temperature: -40°C–60°C (-40°F –140°F)Operating Humidity: 10%–90% non-condensingStorage Humidity: 5%–90% non-condensing
Security
Wireless Security:WPA/WPA2/WPA3 encryptionsAccess Control:Parental Control, Local Management, Host List, White List, Black ListFirewall Security:DoS, SPI Firewall, IP and MAC Address Binding
Advanced Features
Muti-SSID, TX Beamforming, MU-MIMO, DL/UL OFDMA, Airtime Fairness
DHCP
Server, DHCP Client List, Address Reservation
Antenna(s)
Internal Antennas
Dynamic DNS
DynDns, NO-IP
VPN Support
VPN Pass-Through: IPSec, PPTP, L2TPVPN Server: PPTP, OpenVPN, IPSec
Wireless Standard
802.11ax (Wi-Fi 6/6E)
USB Application
Samba, FTP, Media Server, 3G/4G Backup
Standards
IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/g/b 2.4 GHz
Port/NAT Forwarding
Virtual Server, Port Triggering, UPnP, DMZ
Mesh Wi-Fi Support
Yes (Mesh Wi-Fi)
