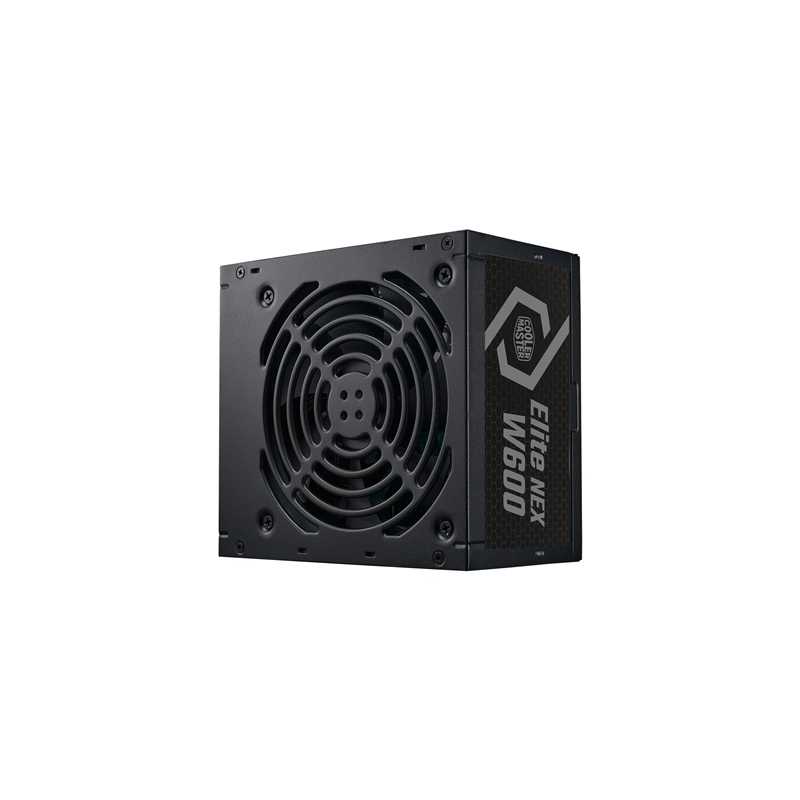

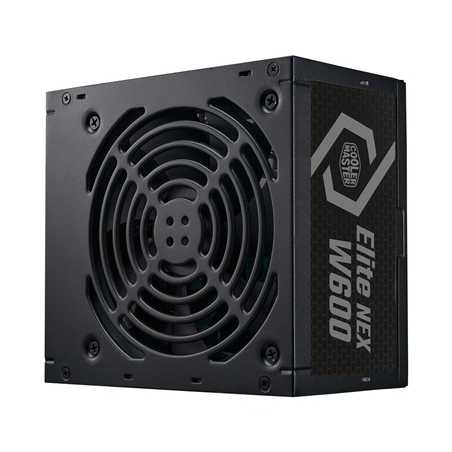

Cooler Master Elite Nex White, 600W, 80 Plus Standard Certified Efficiency, High Peak Power Tolerance, 3 Year Warranty

ELITE NEX WHITE W600 230V NEX LEVEL POWER

Features
Active PFC and a dual forward topology design
Excellent temperature resistance
High peak power tolerance
Durability, reliability, and safety
80 Plus standard certified efficiency
3-year warranty

ACTIVE POWER FACTOR CORRECTION AND A DUAL FORWARD TOPOLOGY DESIGN
Constructed with protective measures normally only found in high-end power supplies that improve overall safety and current stability.

EXCELLENT TEMPERATURE RESISTANCE
Capable of comfortably operating at 40°C under full loads, allowing for a longer lifespan even in warmer environments.

HIGH PEAK POWER TOLERANCE
Can reliably push an additional 100W at peak power loads for up to 20 seconds.

DURABILITY, RELIABILITY, AND SAFETY
Will perform consistently in any environment, whether you live at high altitudes or in high humidity.

80 PLUS STANDARD CERTIFIED EFFICIENCY
Maintains an efficiency of 85% at typical loads.

Specifications

Model
MPW-6001-ACBW-B

ATX Version
ATX 12V Ver. 2.41

PFC
Active PFC

Input Voltage
200-240V

Input Current
4.5A

Input Frequency
50-60Hz

Dimensions (L x W x H)
140 x 150 x 86 mm

Fan Size
120mm

Fan Bearing
Sleeve Fan

Efficiency
= 85% @ Typical Load

ErP 2014 Lot 3
Yes

Operating Temperature
0-40°C

Power Good Signal
100 - 500 ms

Hold Up Time
=10ms at 100% load

MTBF
>100,000 Hours

Protections
OVP, OPP, SCP, UVP, OTP, Inrush Protection

Regulatory
TUV, cTUVus, CE, FCC, CCC, EAC, UKCA

ATX 24 Pin Connectors
1

EPS 4+4 Pin Connectors
1

SATA Connectors
5

Peripheral 4 Pin Connectors
3

PCI-e 6+2 Pin Connectors
2

Series
Elite Series

80 Plus
Standard

Modular
Non Modular

Wattage
600W
