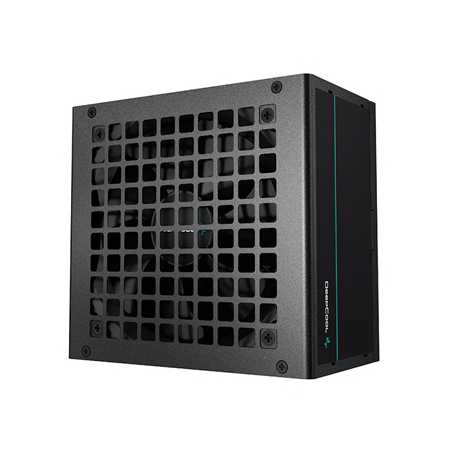

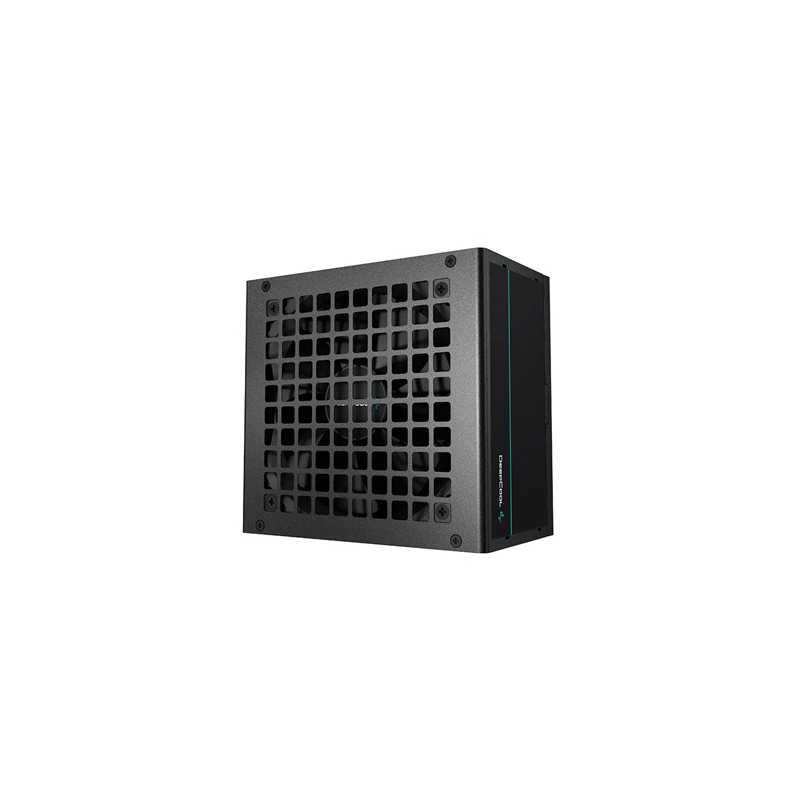

DeepCool PF500 500W PSU, 120mm Silent Hydraulic Bearing Fan, 80 PLUS White, Non Modular, UK Plug, Flat Black Cables, Efficient &

PF500
80 PLUS Standard Power Supply

The DeepCool PF Series Power Supply Unit offers safe and stable power performance with reliable 80 PLUS Standard efficiency and affordable pricing.

TO HIGHER STANDARDS
Certified for 80 PLUS 230V EU Standard efficiency that ensures 85% efficiency under typical loading of 50%. Better efficiency translates into lower energy waste and lower temperatures for more cost savings.

SILENT HYDRAULIC BEARING FAN
Optimally balanced for low-noise performance, the 120mm fluid bearing fan improves overall life expectancy and reduces friction and vibration.

FLAT BLACK CABLES
Stealthy and flexible, the fixed flat black cables are easy to maneuver for cable management while also taking up less space in your system.

RELIABLE PROTECTION
Shield against potential risk and damage with overpower, over voltage, and short circuit power protection.
OPP - Over Power Protection
OVP - Over Voltage Protection
SCP - Short Circuit Protection
UVP - Under Voltage Protection

Type
ATX 12V V2.4

80 PLUS Certifications
WHITE

Fan Size
120mm

Fan Bearing
Hydro Bearing

Topology
Active PFC + Double tube forward

Capacitors
Taiwan bulk capacitor

Power Good Signal
100-500ms

Hold Up Time
=16ms (75% Load)

Efficiency
=85% Under Typical Load (50% Loading)

Protection
OPP/OVP/SCP/UVP

Operation Temperature
0-40°C

Regulatory
CB/CCC/CE/UKCA/EAC/RCM/BIS

Regulation
ErP(2010)

MTBF
100,000 Hours

Connections
1 x Main Power Connector 24-Pin (20+4)
1 x EPS 12V Connector 8-Pin (4+4)
2 x PCIE 6+2 Pin (x1)
6 x SATA (x2)
2 x 4-Pin Peripheral (x2)

Product Dimension ( W x L x H )
150 x 140 x 86mm

Master Carton Quantity
5
