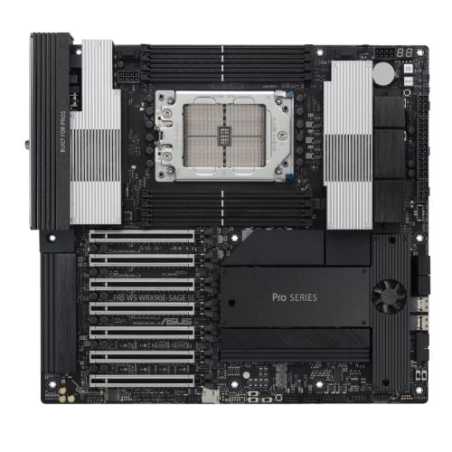

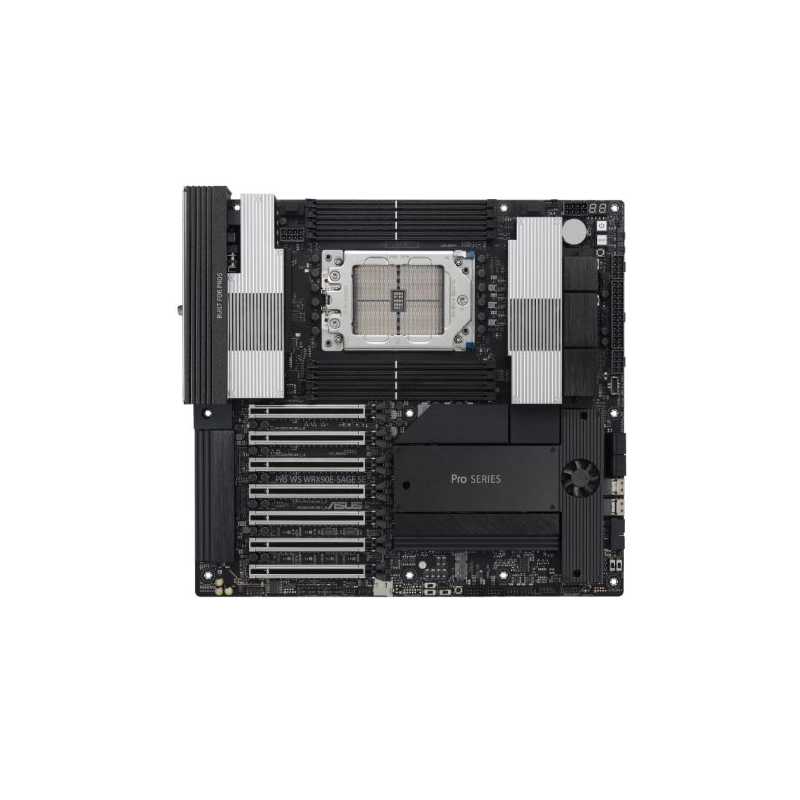

AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors.
Ultrafast connectivity: Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C® and SlimSAS NVMe support.
CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).
Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.
PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.
Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.
Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.
7 x ProbeIt measurement points1 x ReTry button1 x RSVD switch1 x Slow mode switch1 x Safe boot button1 x SPI TPM (14-1 pin)1 x Start button1 x 10-1 pin system panel1 x Thermal sensor
RAM Speeds
Varies depending on CPU and memory configuration
USB Ports Supported
Rear:2 x USB4 40Gbps Type-C w/ ASMedia ASM4242 controller6 x USB 10Gbps Type-A1 x USB 2.0Front:1 x USB 20Gbps Type-C2 x USB 5Gbps 4 x USB 2.0
Storage
4 x SATA III1 x M.2 (2242/2260/2280/22110) - PCIe 5.0 x41 x M.2 (2242/2260/2280/22110) - PCIe 5.0 x41 x M.2 (2242/2260/2280) - PCIe 5.0 x41 x M.2 (2242/2260/2280) - PCIe 5.0 x42 x SlimSAS slots support PCIe 4.0 x4 mode NVMe device
RAID
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10
Warranty
3 Years
Motherboard Type
Server / Workstation
Form Factor
CEB
Socket
AMD sTR5
Chipset
AMD WRX90
DDR Type
DDR5
RAM Technology
DDR5, ECC Registered Memory8 Channel
RAM Slots
8 x DIMM
Maximum Memory
2048GB
LAN
Dual 10G LAN & Mgmt LAN Port
Audio
Realtek ALC1220P Surround Sound High Definition Audio CODEC
Back Panel I/O Ports
2 x USB4 40Gbps Type-C w/ ASMedia ASM4242 controller6 x USB 10Gbps Type-A1 x USB 2.01 x VGA2 x mini DisplayPort IN1 x Intel dual 10Gb Ethernet1 x Realtek 1Gb Ethernet2 x Audio jacks1 x BIOS FlashBack button1 x Clear CMOS button
Internal I/O Connectors
1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan1 x W_PUMP+5 x 4-pin Chassis Fan2 x 4-pin VRM Fan (VRM FAN onboard)1 x 4-pin M.2 Fan (M.2 FAN onboard)1 x 24-pin Main2 x 8-pin +12V2 x 8-pin PCIe to CPU2 x 8-pin PCIe4 x M.2 (Key M)4 x SATA 6Gb/s
CPU Support
Click here for CPU support
Package Type
Retail
Graphics Ports
1 x VGA port from AST26002 x USB 40Gbps (USB4) support USB Type-C display outputs
Additional Features
See Overview
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
3 x LAN
Max LAN Speed
10GB LAN
PCI/PCI Express
6 x PCIe 5.0 x16 slots1 x PCIe 5.0 x16 slot (x8 mode)
