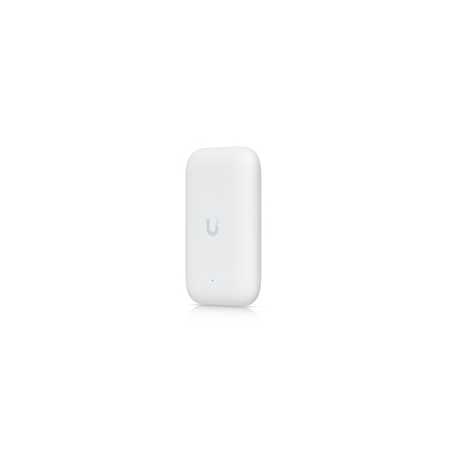

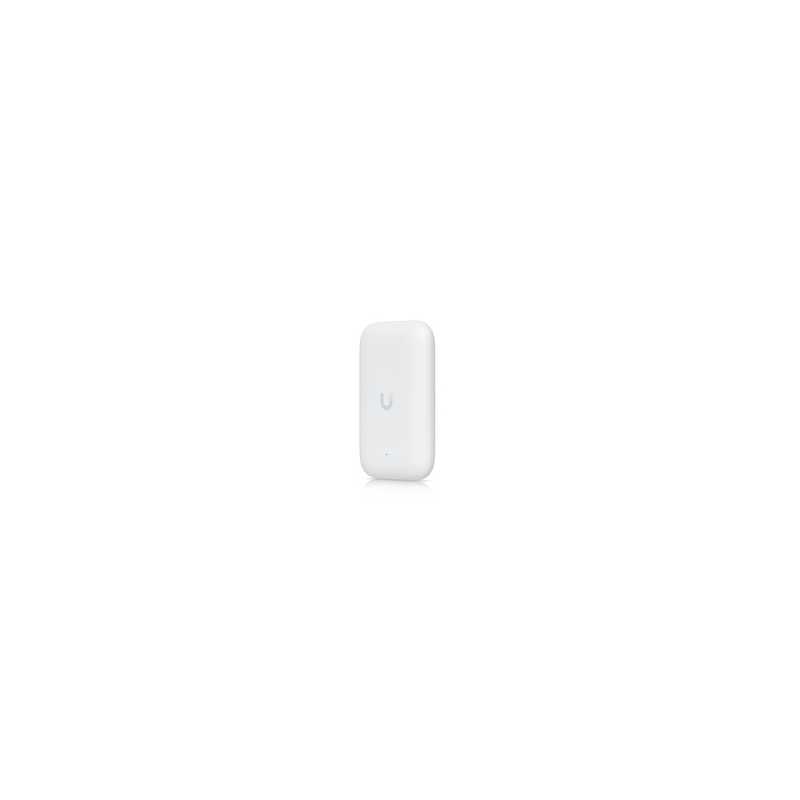

Ubiquiti UniFi Ultra "Swiss Army Knife" Access Point - UK-Ultra

Ubiquiti UniFi UK-Ultra "Swiss Army Knife" Access Point

UniFi UK-Ultra supports wireless standards 8021.11a/b/g/n/ac in a 2x2 MIMO configuration for both frequency bands and can handle 200+ connected clients.

UniFi UK-Ultra fearures a pair of RSMA connectors, where an omnidirectional or sectoral external antenna can be connected to increase the transmitter's range.

The UniFi UK-Ultra Access Point offers a wide range of mounting options on walls, ceilings, or poles, with mounting accessories included in the package.

Specifications

Mechanical

Weight &Dimensions
137 x 84 x 34 mm (5.4 x 3.3 x 1.3")
173 g (6.1 oz)

Enclosure materials
UV-stabilized polycarbonate

Mount materials
Polycarbonate, SGCC steel, plastic

Pole mount diameter
1~2" on pipe outer diameter

Wind survivability
33.2 N at 200 km/h (7.5 lbf at 125 mph)

Weatherproofing
IPX6

Hardware

Networking interface
(1) GbE RJ45 port

Management interface
Ethernet

Power method
PoE

Power supply
UniFi PoE Switch

Supported voltage range
44—57V DC

Max. power consumption
8W

Max. TX power
2.4 GHz - 20 dBm
5 GHz - 20 dBm

MIMO
2.4 GHz - 2 x 2
5 GHz - 2 x 2

Throughput rate
2.4 GHz - 300 Mbps
5 GHz - 866.7 Mbps

Antenna gain
2.4 GHz - 6 dBi
5 GHz - 6 dBi

Antenna
(1) Internal antenna
(2) RP-SMA connectors for optional external antennas

LEDs
(1) Power: white/blue
(4) Mesh signal: blue

Button
Factory reset

Mounting
Wall, ceiling, pole mount (Included)

Operating temperature
-40 to 60° C (-40 to 140° F)

Operating humidity
5 to 95% noncondensing

Certifications
CE, FCC, IC

Software

WiFi standards
802.11a/b/g/n/ac

Wireless security
WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

BSSID
8 per radio

VLAN
802.1Q

Advanced QoS
Per-user rate limiting

Guest traffic isolation
Supported

Concurrent clients
200+

Supported Data Rates

802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b
1, 2, 5.5, 11 Mbps

802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (WiFi 4)
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac (WiFi 5)
6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)

Application Requirements

UniFi Network
Web: Version 8.0.7 and later
iOS: Version 10.11.1 and later
Android: Version 10.10.1 and later
