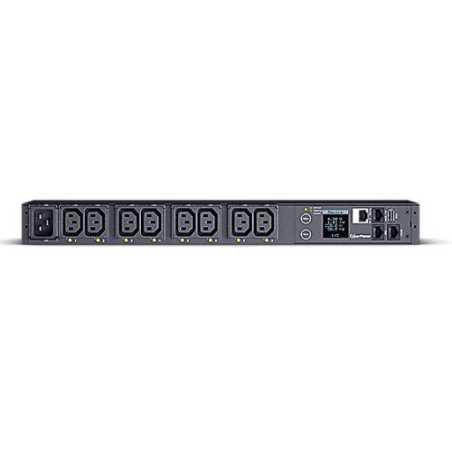

CyberPower PDU81005 Switched Metered-by-Outlet Power Distribution Unit

  • Real-time Local/Remote Monitoring and Switching of Individual Outlet
  • Work under High Temperature
  • +/-1% Measurement Accuracy
  • Digital Real-time Load Display
  • Hot-swappable LCD Design
  • LED Status Indicator
  • Support ENVIROSENSOR
  • PowerPanel Management Software
  • Cord Retention Tray
  • Controllable Receptacles with Power Sequencing
  • Ultra Low Power Consumption
  • Industrial-grade Metal Housing
  • User Configurable Color LCD
  • Rotatable LCD for Proper Display Orientation
  • Firmware Upgrade via USB
  • User-upgradeable Firmware
  • Adjustable Mounting Brackets
  • IEC Receptacle Locking




CyberPower PDU81005 is a network-grade power distribution unit ideal for data center and enterprise applications, providing real-time local/remote monitoring and on/off control of individual outlet for remote reboots, scheduled on/off and more. The Daisy Chain function also allows the PDUs connected together to be monitored and controlled under one IP address.

The digital LCD display is color configurable and rotatable, allowing users to easily maintain and monitor the PDU. Users can change LCD’s colors to easily categorize devices.

The product is built-in with hot-swappable Ethernet module, which can work with PowerPanel Power Management Software and power management web interface for real-time remote monitoring and configuration. Event logging via a web browser or network connection allows users to review a history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The USB port supports easy firmware upgrade. Moreover, the featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.









CYBERPOWER
PDU81005
4 Items

Data sheet

Warranty
2 Years
Form Factor
1U Vertical Rackmount1U Horizontal Rackmount
Additional Features
See Overview
Type
Switched Metered-by-Outlet
Weight/Dimensions
2.1 kg(WxHxD) 433 x 44 x 112 mm
Package Contents
PDU81005Users ManualCord Retention TrayMounting BracketsCable TiesScrew KitPower CordSerial Cable
Input
Nominal Input Voltage: 100 ~ 240 VacInput Frequency: 50 / 60 HzMaximum Input Current: 16AInput Connector Type: IEC C20 x 1Power Cord Length: 10 ftPower Cord Length: 3.05 m
Additional Ports
USB Type-ARJ45RJ45 (for Serial)RJ45 (for ENVIROSENSOR/Daisy Chain (In))RJ45 (for Daisy Chain (Out))
LED Indicators
PDU Status, Tx/Rx, Link, Outlet
Phase
Single Phase
LCD Information Display
Input Voltage (Volts)Input Frequency (Hz)Current Level (Amps)Power Consumption (Kilowatts)Network InformationSerial NumberEnvironment StatusHardware VersionFirmware Version
Colour LCD
Yes
Hot-swappable LCD Module
Yes
LCD Setting & Control
Outlet ControlLCD SettingsReset / Reboot
Enclosure Construction
Steel
Cord Retention Tray
Yes
IEC Receptacle Locking
Yes
External Site Ground Pin
Yes
Adjustable Mounting Brackets
2 Set (L-short, L-long)
Certifications
CE, FCC Class A, UL60950, UL62368, EN 55032 Class ARoHS
