Ubiquiti UniFi Security Gateway Lite - UXG-Lite, Requires An Additional UK USB-C Power Adaptor (Suggested Part CLPRE-QC72USBC)

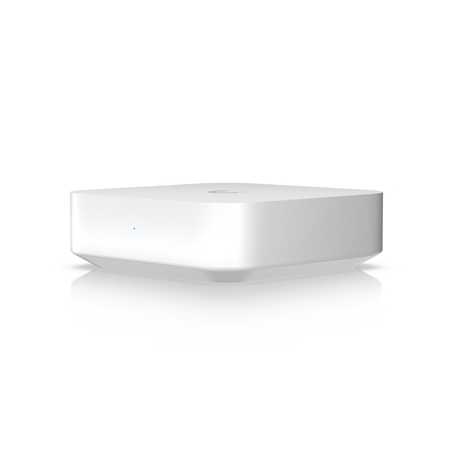

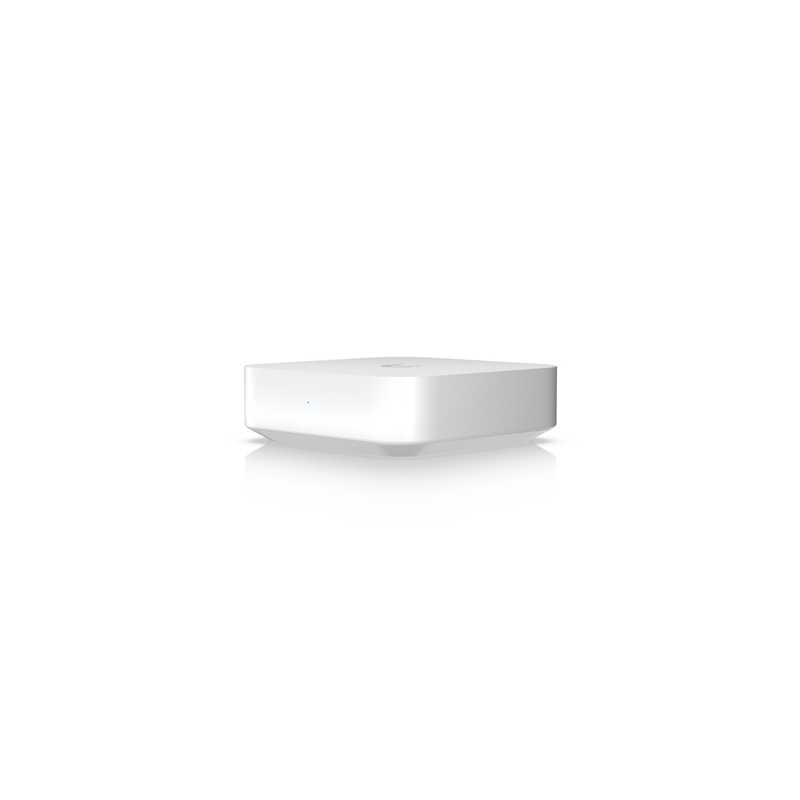

Ubiquiti UniFi UXG-Lite Security Gateway Lite
Requires UK USB-C Power Adaptor (suggested part: CLPRE-QC72USBC)

Key Features
Up to 10x routing performance increase over UniFi USG
Managed with a Cloud Key, Official UniFi Hosting, or UniFi Network Server
1 x GbE WAN port
1 x GbE LAN port
Compact footprint

The Ubiquiti UniFi UXG-Lite is a compact yet powerful gateway, equipped with a comprehensive suite of advanced routing and security features. It significantly boosts routing performance, offering up to 10 times the capability of its predecessor, the UniFi USG, especially when tested with IPS/IDS, QoS, and Smart Queues. The device can be managed using a Cloud Key, Official UniFi Hosting, or a UniFi Network Server.

The UXG-Lite's hardware consists of a dual-core ARM Cortex-A53 processor at 1 GHz and 1 GB DDR3L memory. For connectivity, it includes one Gigabit Ethernet (GbE) WAN port and one GbE LAN port. It also supports Bluetooth 5.1, and is USB-C powered (with an adapter included), supporting a voltage range of 100–240V.

UXG-Lite offers performance WiFi QoS with UniFi APs, application, domain, and country-based QoS, and application and device type identification. It also provides additional internet failover with LTE Backup, internet quality and outage reporting, and next-generation security with application-aware firewall rules and signature-based IPS/IDS threat detection.

The UXG-Lite also supports VLAN/subnet-based traffic segmentation, a full stateful firewall, and advanced networking options including license-free SD-WAN, WireGuard, L2TP and OpenVPN server, and more?.

Specification

Mechanical

Weight & Dimensions
98 x 98 x 30 mm (3.9 x 3.9 x 1.2")
320 g (11.3 oz)

Enclosure materials
Polycarbonate

Hardware

Processor
Dual-core ARM Cortex-A53 at 1 GHz

Memory information
1 GB DDR3L

Management interface
Ethernet
Bluetooth 5.1

Networking interface
1 x GbE RJ45 WAN port
1 x GbE RJ45 LAN port

Power method
USB type C (5V/3A)

Supported voltage range
100–240V

Max. power consumption
3.83W

Operating temperature
-10 to 40° C (14 to 104° F)

Operating humidity
5 to 95% noncondensing

Certifications
CE, FCC, IC

Gateway Features

Performance
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting

Next-generation security
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall

Advanced networking
License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity Enterprise VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support

Application Requirements

UniFi Network
Version 8.0.7 and later

Box Contents
1 x UXG-Lite
1 x USB-C power adapter EU
