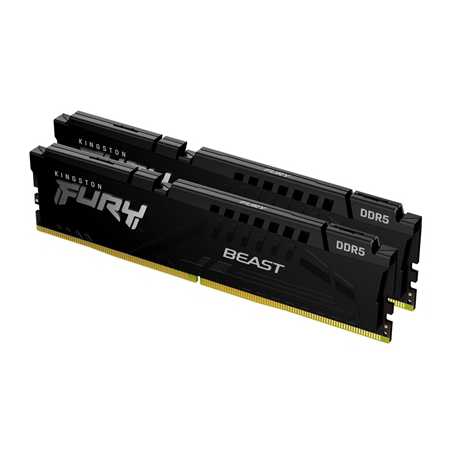

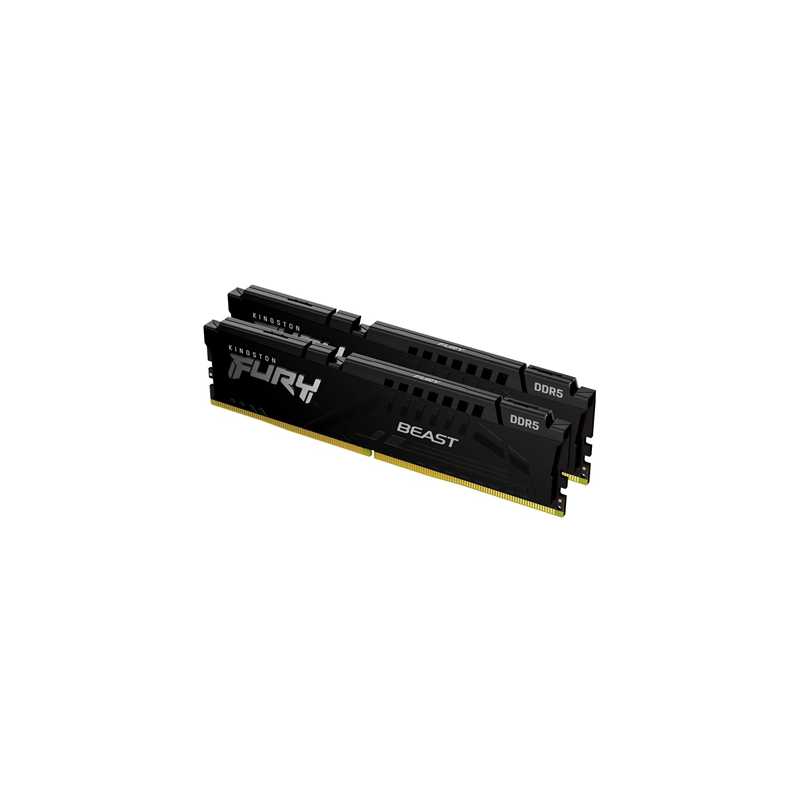

Kingston 32GB 6800MT/s DDR5 CL34 DIMM (Kit of 2) FURY Beast Black XMP

Kingston FURY KF568C34BBK2-32 is a kit of two 2G x 64-bit
(16GB) DDR5-6800 CL34 SDRAM (Synchronous DRAM) 1Rx8,
memory module, based on eight 2G x 8-bit FBGA components per
module. Each module kit supports Intel® Extreme Memory
Profiles (Intel® XMP) 3.0. Total kit capacity is 32GB. Each
module has been tested to run at DDR5-6800 at a low latency timing
of 34-45-45 at 1.4V. The SPDs are programmed to JEDEC
standard latency DDR5-4800 timing of 40-39-39 at 1.1V.
Each 288-pin DIMM uses gold contact fingers. The JEDEC
standard electrical and mechanical specifications are as
follows;

FACTORY TIMING PARAMETERS

Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
XMP Profile #1: DDR5-6800 CL34-45-45 @1.4V
XMP Profile #2: DDR5-6400 CL32-39-39 @1.4V
XMP Profile #3: DDR5-6000 CL30-36-36 @1.4V

SPECIFICATIONS

CL(IDD)
40 Cycles

Row Cycle Time (tRCmin)
48ns(min)

Refresh to Active/Refresh
Command Time (tRFCmin)
295ns(min)

Row Active Time (tRASmin)
32ns(min)

UL Rating
94 V-O

Operating Temperature
0-85

Storage Temperature
-55 - 100
