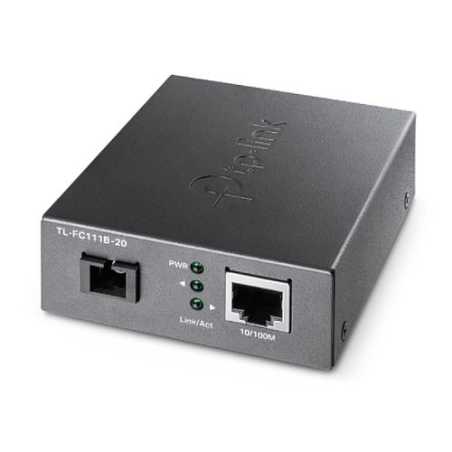

TP-LINK (TL-FC111B-20) 10/100 Mbps WDM Media Converter, up to 20km, 802.3u 10/100Base-TX, 100Base-FX, Single-Mode, Half-Duplex/F
search
  • TP-LINK (TL-FC111B-20) 10/100 Mbps WDM Media Converter, up to 20km, 802.3u 10/100Base-TX, 100Base-FX, Single-Mode, Half-Duplex/F

TP-LINK (TL-FC111B-20) 10/100 Mbps WDM Media Converter, up to 20km, 802.3u 10/100Base-TX, 100Base-FX, Single-Mode, Half-Duplex/F

£19.16
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock




10/100 Mbps WDM Media Converter



  • Complies with 802.3u 10/100Base-TX, 100Base-FX standards
  • Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
  • Adopts WDM technology, transmitting and receiving data on one single fiber
  • Extends fiber distance up to 20km




What This Product Does

TL-FC111B-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.




How This Product Works

TL-FC111B-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC111B-20 transmits data at 1310nm wavelength and receives data at 1550nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC111B-20 should send data at a wavelength of 1550nm and receive data at a wavelength of 1310nm. TP-Link another media converter TL-FC111A-20 is one of the products that can cooperate with TL-FC111B-20.




Other Features

Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.



FC111B-20

Data sheet

Warranty
2 Years
Package Type
Retail
Package Weight
0.3500 kg
Type
WDM Media Converter
Power Supply
External Power Adapter: 5 V/0.6 A
Ports
1 x SC fiber optic1 x RJ45 jack
Enclosure Type
External
Basic Functions
Complies with 802.3u 10/100Base-TX, 100Base-FX standardsAuto-negotiation of Half-Duplex/Full-Duplex transfer modeAdopts WDM technology, transmitting and receiving data on one single fiberExtends fiber distance up to 20km
Dimensions (WxDxH)
94.5 x 73 x 27 mm
Standards and Protocols
IEEE802.3, IEEE802.3i, IEEE802.3u
Environment
Operating Temperature: 0C~50C (32F~122F)Storage Temperature: -40C~70C (-40F~158F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
LED Indicators
PWR, Link/Act
Wave Length
1310nm Tx/1550nm Rx
Transmission Distance
20km
Network Media 100BASE-TX
2-pair UTP/STP of Cat. 5 or above (
