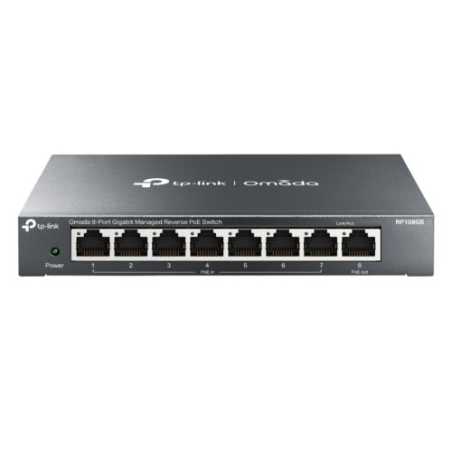

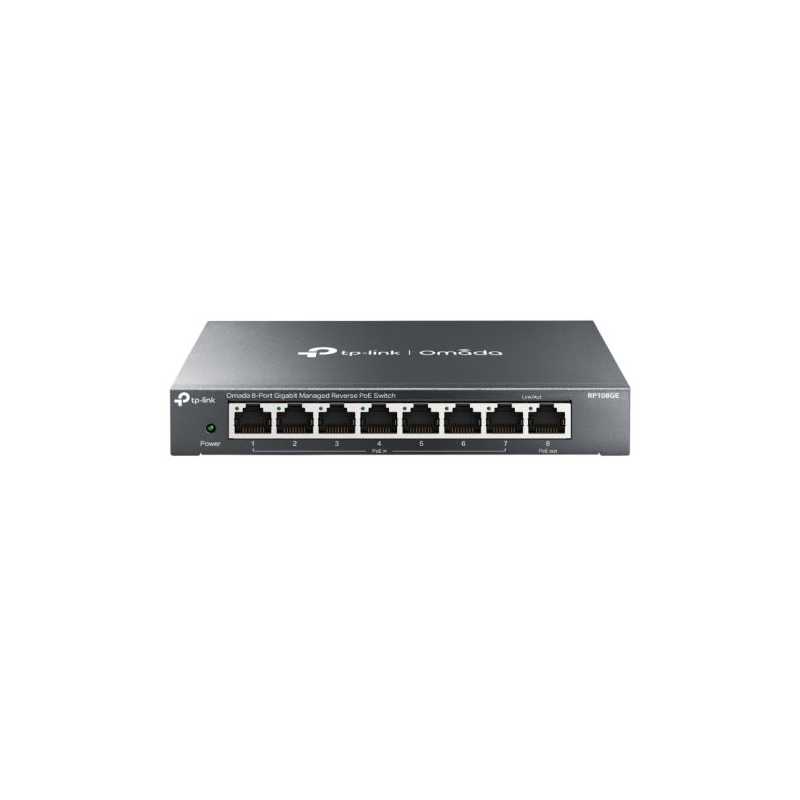

TP-LINK (TL-RP108GE) 8-Port Gigabit Managed Reverse PoE Switch, 7 PoE Input & 1 PoE Output, DC Output, Metal Casing
search
  • TP-LINK (TL-RP108GE) 8-Port Gigabit Managed Reverse PoE Switch, 7 PoE Input & 1 PoE Output, DC Output, Metal Casing

TP-LINK (TL-RP108GE) 8-Port Gigabit Managed Reverse PoE Switch, 7 PoE Input & 1 PoE Output, DC Output, Metal Casing

£33.33
VAT included
Stock status: Very low
Last 20 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%



8-Port Gigabit Managed Reverse PoE Switch

  • 7 PoE input and 1 PoE output 10/100/1000 Mbps RJ45 Ports
  • 1 DC output port that supports both 5V and 12 V voltage switching
  • Durable metal casing of superior quality and professional appearance
  • Intelligent management via a web user interface and downloadable utility
  • Green technology reduces power consumption




What This Product Does

The Passive PoE switch TL-RP108GE has seven gigabit PoE input ports that allow it to receive power from user outlets via PoE injectors. Equipped with one PoE output port, the switch can supply power to CPEs and similar devices via Port 8. The DC output port supports both 5 V and 12 V optional output voltage and can be used to power devices like ONTs. With data switching and PoE integrated into a single unit, TL-RP108GE saves space, minimizes cabling, and eliminates the need for dedicated electrical outlets—lowering deployment costs and simplifying installation for PoE-capable devices.




RP108GE
20 Items

Data sheet

Warranty
2 Years
Package Type
Retail
Package Weight
0.4300 kg
Dimensions
158 x 99.1 x 25 mm
Package Contents
TL-RP108GEPower CordInstallation GuideRubber Feet
LED
Power, Link/Act LED
Standards and Protocols
CSMA/CDIEEE802.3ab, IEEE802.3i, IEEE802.3pIEEE802.3q, IEEE802.3x, IEEE802.3u
Rackmountable
No
Management
Intelligent management via a web user interface and downloadable utility
Number of Ports
8
PoE Ports (RJ45)
See above
Switching Capacity
16 Gbps
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)Storage Temperature: -40°C~70°C (-40°F~158°F)Operating Humidity: 10%~90% Non-CondensingStorage Humidity: 5%~90% Non-Condensing
Advanced Functions
See Overview
Quality of Service
Support Port-Based/802.1p/DSCP prioritySupport 4 priority queuesRate LimitStorm Control
Transfer Method
Store-And-Forward
Mac Address Table
4 K
Packet Forwarding Rate
11.9 Mbps
Jumbo Frame
16 KB
Layer Features
L2:IGMP Snooping V1/V2/V3Static Link AggregationPort MirroringCable DiagnosticsLoop Prevention
VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)MTU/Port/Tag VLAN
POE
Yes
Managed
Yes
Max RJ45 Transfer Rate
10/100/1000 Mbps
