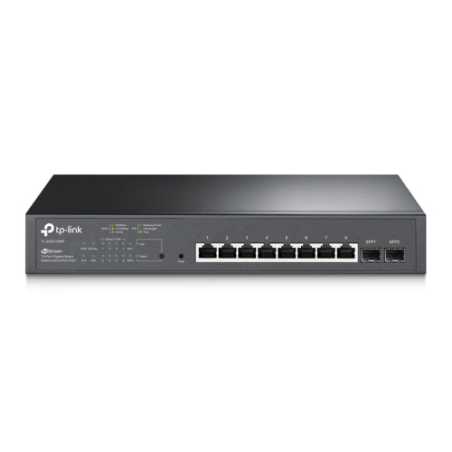

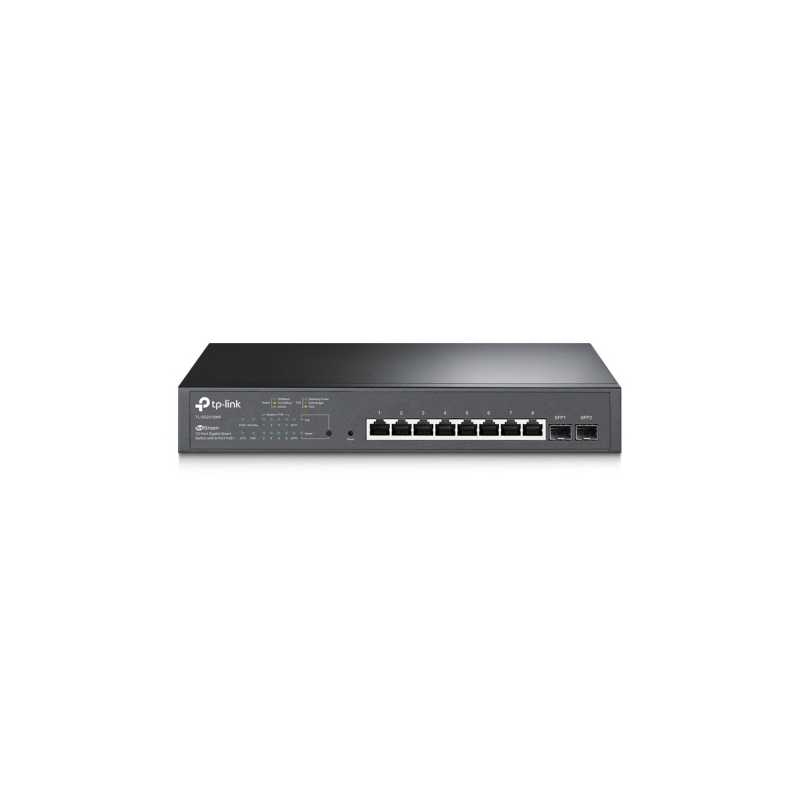

TP-LINK (TL-SG2210MP) JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+, 2 GB SFP Slots, Rackmountable
search
  • TP-LINK (TL-SG2210MP) JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+, 2 GB SFP Slots, Rackmountable

TP-LINK (TL-SG2210MP) JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+, 2 GB SFP Slots, Rackmountable

£189.85
VAT included
Stock status: Very low
Last 14 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%



JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+


  • 150 W PoE Budget: 8 802.3at/af-compliant PoE+ ports with a total power supply of 150 W*.
  • Full Gigabit Ports: 8 gigabit PoE+ ports and 2 gigabit SFP Slots provide high-speed connections.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.





Software Defined Networking (SDN) with Cloud Access

Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.




*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

**Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller.



SG2210MP
14 Items

Data sheet

Warranty
Limited Lifetime
Package Type
Retail
Package Weight
2.1600 kg
Dimensions
294 x 180 x 44 mm
Power Supply
PoEMax Consumption:12.2 W (110 V / 60 Hz with no PD connected)173.9 W (110 V / 60 Hz with 150 W PD connected)
Interface(s)
8 x 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX)2 x 100/1000 Mbps SFP Slots
Package Contents
TL-SG2210MPPower CordInstallation GuideRackmount KitRubber Feet
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Rackmountable
Yes
Management
Omada AppCentralized ManagementWeb-based GUI and CLI managementSNMPv1/v2c/v3SNMP Trap/InformRMON (1,2,3,9 groups)SDM TemplateDHCP/BOOTP ClientDual Image, Dual ConfigurationCPU MonitoringCable DiagnosticsEEESystem Log802.1ab LLDP/ LLDP-MED
Number of Ports
10
PoE Ports (RJ45)
Standard: 802.3at/af compliantPoE+ Ports: 8 PortsPower Supply: 150 W
Switching Capacity
20 Gbps
Environment
Operating Temperature: 0C~40C (32F~104F);Storage Temperature: -40C~70C (-40F~158F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
Advanced Functions
See Overview
Quality of Service
802.1p CoS/ DSCP priority8 priority queuesPriority Schedule ModeQueue Weight ConfigBandwidth ControlSmoother PerformanceActions for flowsStorm Control
Mac Address Table
8k
Packet Forwarding Rate
14.9 Mpps
Jumbo Frame
9 KB
Layer Features
DHCP RelayDHCP L2 RelayLink AggregationSpanning Tree ProtocolLoopback DetectionFlow ControlMirroringDevice Link Detect Protocol (DLDP)802.1ab LLDP/ LLDP-MED
VLAN
VLAN Group802.1Q tag VLANMAC VLANProtocol VLANGVRPVoice VLAN
Access Control
Support up to 230 entriesTime-RangeTime-based ACLMAC ACLIP ACLIPv6 ACLCombined ACLRule OperationPolicy ActionACL Rules Binding
POE
Yes
Managed
Smart
Max RJ45 Transfer Rate
10/100/1000 Mbps
Max SFP Transfer Rate
2.5G SFP
