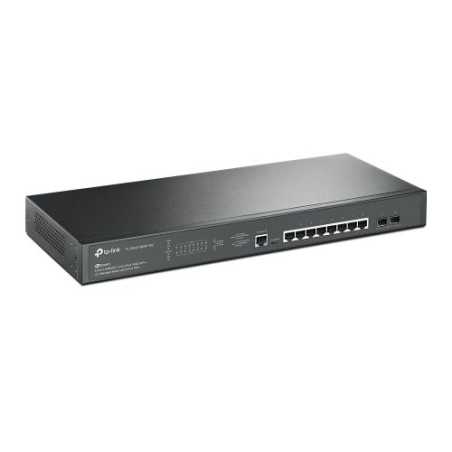

TP-LINK (TL-SG3210XHP-M2) JetStream 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+,Rackmountable
£357.14
VAT included
Delivered within 1-2 days.
JetStream 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+
- 2.5G PoE+ Ports for WiFi 6: 8x 2.5 Gbps ports smash the gigabit barrier and unlock the full potential of WiFi 6 APs.
- 10G Lightning-Fast Uplink: 2x 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
- 240 W PoE Budget: 8x 802.3at/af-compliant PoE+ ports with a total power supply of 240 W*.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Unlock the Full Potential of WiFi 6 with Multi-Gigabit PoE+ Ports
Featuring 8x 2.5 Gbps PoE+ ports, the switch is capable of future network expansion and deployment, providing sufficient bandwidth for incoming WiFi 6 APs. Designed to use a single Ethernet cable for both data and power transmission, it supports up to 240 W total PoE power budget* and flexible installation to fit in various application scenarios.
Enterprise Switch with 10G Uplink
2x 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches are easily built.
Software-Defined Networking (SDN) with Cloud Access
Omada’s Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses, and ISPs.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
ISP Features***
sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller.
***L3 and ISP features can only be configured in standalone mode.
SG3210XHP-M2
4 Items
Data sheet
- Warranty
- Limited Lifetime
- Package Type
- Retail
- Package Weight
- 2.9480 kg
- Dimensions
- 440 x 180 x 44 mm
- Power Supply
- 100-240 V AC~50/60 Hz
- Interface(s)
- 8 x 100/1000/2500 Mbps RJ45 Ports2 x 10G SFP+ Slots1 x RJ45 Console Port1 x Micro-USB Console Port
- Package Contents
- TL-SG3210XHP-M2 SwitchPower CordQuick Installation GuideRackmount KitRubber Feet
- Rackmountable
- Yes
- Management
- Web-based GUICLI through the console port, telnetSNMP v1/v2c/v3SDM TemplateDHCP/BOOTP Client802.1ab LLDP/LLDP-MEDDHCP AutoInstallDual Image, Dual ConfigurationCPU MonitoringCable DiagnosticsEEEPassword RecoverySNTPSystem Log
- Number of Ports
- 8
- PoE Ports (RJ45)
- Standard: 802.3at/af compliantPoE+ Ports: 8 PortsPoE Power Budget: 240 W
- Switching Capacity
- 80 Gbps
- Environment
- Operating Temperature: 0–50 °CStorage Temperature: -40–70 °COperating Humidity: 10–90% RH non-condensingStorage Humidity: 5–90% RH non-condensing
- Advanced Functions
- Support Omada Hardware/Software/Cloud-Based ControllerAutomatic Device DiscoveryBatch ConfigurationBatch Firmware UpgradingIntelligent Network MonitoringAbnormal Event WarningsUnified ConfigurationReboot ScheduleZTP (Zero-Touch Provisioning)
- Quality of Service
- 8 priority queues802.1p CoS/DSCP priorityQueue schedulingBandwidth ControlSmoother PerformanceAction for Flows
- Mac Address Table
- 16 K
- Packet Forwarding Rate
- 59.52 Mpps
- Jumbo Frame
- 9 KB
- Layer Features
- L2 and L2+:Link AggregationSpanning Tree ProtocolLoopback DetectionFlow ControlMirroringL3:16 IPv4/IPv6 InterfacesStatic RoutingStatic ARPProxy ARPGratuitous ARPDHCP ServerDHCP RelayDHCP L2 Relay
- VLAN
- VLAN Group802.1Q Tagged VLANMAC VLAN: 7 EntriesProtocol VLAN: Template 16, VLAN 16Private VLANGVRPVLAN VPN (QinQ)Voice VLAN
- Access Control
- Time-based ACLMAC ACLIP ACLCombined ACLPacket Content ACLIPv6 ACLPolicyACL apply to Port/VLAN
- POE
- Yes
- Managed
- Yes
- Max RJ45 Transfer Rate
- 2.5 Gbps
- Max SFP Transfer Rate
- 10G SFP
