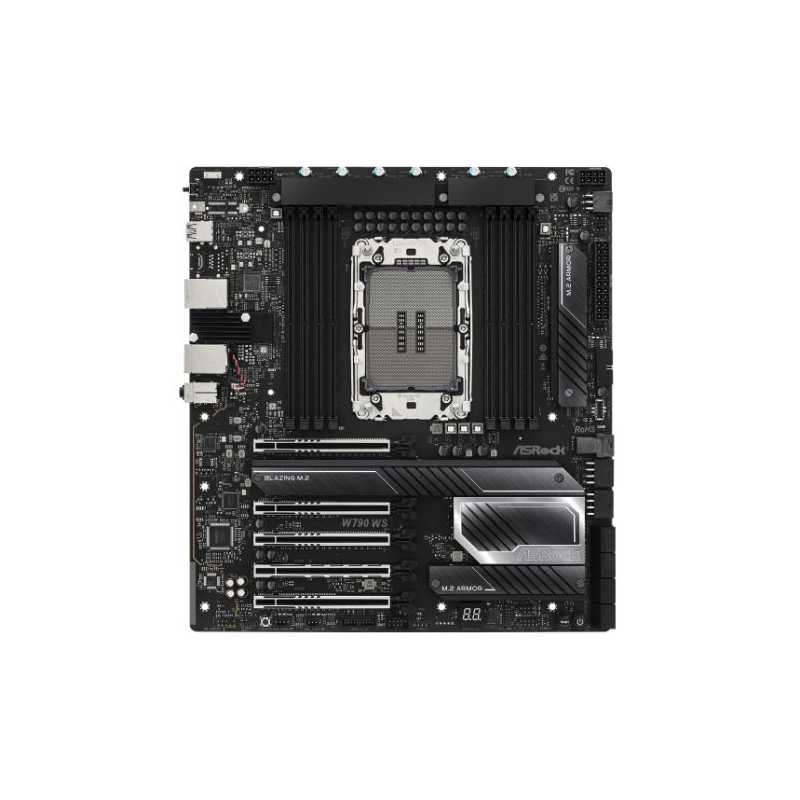

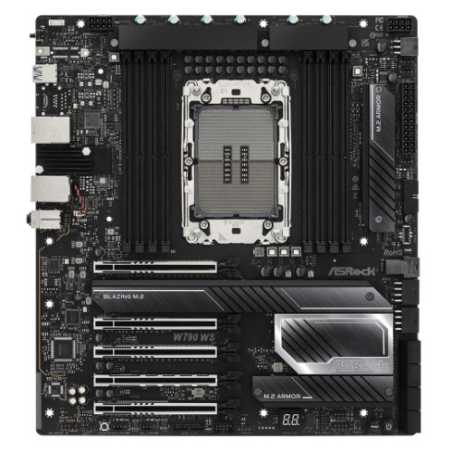

Asrock W790 WS R2.0, Workstation, Intel W790, LGA4677, EATX, 8 DDR5, Wi-Fi 6E, 10G & 2.5G LAN, PCIe5, 4x M.2
search
  • Asrock W790 WS R2.0, Workstation, Intel W790, LGA4677, EATX, 8 DDR5, Wi-Fi 6E, 10G & 2.5G LAN, PCIe5, 4x M.2

Asrock W790 WS R2.0, Workstation, Intel W790, LGA4677, EATX, 8 DDR5, Wi-Fi 6E, 10G & 2.5G LAN, PCIe5, 4x M.2

£358.17
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock



W790 WS R2.0

  • Supports 4th Gen Intel® Xeon® W-3400 and W-2400 Processors (LGA4677)
  • 20+2 Power Phase, 90A SPS Design
  • 14 Layer Server-Grade Ultra Low-Loss PCB
  • 8 x DDR5 DIMMs
  • Supports Quad Channel ECC Registered memory, up to 6800+ (OC)*
  • 4 PCIe 5.0 x16, 1 PCIe 4.0 x16
  • 4 Blazing M.2 (PCIe Gen5 x4), 8 SATA3
  • 1 U.2 mini SAS Connector (PCIe Gen4 x4)
  • 1 USB 3.2 Gen2x2 Type-C (Front)
  • 2 USB 3.2 Gen2 (Rear)
  • 7 USB 3.2 Gen1 (3 Rear, 4 Front)
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Marvell AQUANTIA® 10 GbE LAN
  • Intel® i226LM 2.5 GbE LAN
  • Supports ASRock Blazing Quad M.2 Card







Optimized VRM Design
  • SPS (Smart Power Stage) - The server grade ultra low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.
  • 20+2 Power Phase Design - The 14 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.





DDR5 ECC Memory Support

This workstation motherboard supports 8 DIMMs Quad-Channel DDR5 RDIMM ECC Memory overclocking with max capacity of 2048GB and is able to automatically detected and corrected data corruption, reducing the chance of system crashes to ensure workstation stability with multiple memory modules.





PCIe 5.0 + Surface-Mount Tech

Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.





4 x PCIe Gen5 x16

This workstation motherboard supports 4 PCIe Gen5 x16 slots, deliver all the performance of PCIe Gen5 to your GPU and add-on cards. Fulfill all the professional design, deep learning, simulation and rendering applications.





Reinforced Steel Slot [PCIe 5.0 Version]

The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
  • Extra anchor points
  • Stronger latch
  • Ensure signal stability
  • Make sure heavy graphics cards to be well-installed.




Thunderbolt Technology
  • Thunderbolt™ 4/USB4 Type-C - Thunderbolt™ 4/USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable.
  • Fast Charging Technology - Enjoy the superfast charging rate, up to 9V@3A 27W with the next generation PD 3.0!




Various Storage Interface Selection

Provides multiple interface for storage devices including mini-SAS HDD connector, SATA3, and M.2 Key-M slot that can support PCIe Gen5 x4 M.2 SSD.





PCIe Gen5 Blazing M.2

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.





Dual AQUANTIA® / Marvell 10GbE LAN

The new 10Gb/s network standard was specially designed to satisfy the user who is seeking immediate performance improvements. Based on AQUANTIA's AQtion™ client controller, it offers blazingly fast 10-gigabit/sec transfer speed over Cat6 cable. The 10Gb/s Ethernet not only fully compatible with 5Gb/s, 2.5Gb/s & Gigabit Lan but also delivers lightning fast transfer speed, perfect for media center, workstation and gaming PC.





Supports Intel® vPro technology

The Intel® Ethernet Controller I226LM is designed for use on any mobile, desktop, workstation, value-server, or industrial designs that have critical space constraints. Featuring 2.5Gb/s Ethernet and supports Intel® Active Management Technology on systems enabled with Intel® vPro® technology.





Front USB 3.2 Gen2x2 Type-C

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.





EZ Setting
  • Auto Driver Installer - Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
  • BIOS Flashback - Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.



ASROCK
W790 WS R2.0

Data sheet

.
2 x USB 3.2 Gen11 x Front Panel Type C USB 3.2 Gen2x21 x Clear CMOS Button1 x Dr. Debug with LED1 x Power Button with LED1 x Reset Button with LED
Wireless
-
RAM Speeds
Up to 6800+(OC)
Accessories
1 x User Manual1 x I/O Shield4 x SATA Data Cables1 x CPU Carrier for LGA 4677 E1A1 x CPU Carrier for LGA 4677 E1B4 x Screws for M.2 Sockets2 x Standoffs for M.2 Sockets
USB Ports Supported
Rear:2 x USB 3.2 Gen2 Type-A3 x USB 3.2 Gen1Front:1 x USB 3.2 Gen2x2 Type-C4 x USB 3.2 Gen13 x USB 2.0
Storage
8 x SATA III1 x M.2 (230/2242/2260/2280) - PCIe 5.0 x41 x M.2 (2260/2280) - PCIe 5.0 x41 x M.2 (2260/2280) - PCIe 5.0 x41 x M.2 (2260/2280) - PCIe 5.0 x41 x U.2 Connector (supports PCIe Gen4x4 (64 Gb/s) mode)
RAID
Supports RAID 0, 1, 5 and 10 for SATA storage devicesSupports RAID 0, 1, 5 and 10 for M.2 NVMe storage devices
Warranty
3 Year Replacement Warranty
Motherboard Type
Server / Workstation
Form Factor
Extended ATX
Socket
Intel 4677
Chipset
Intel W790
DDR Type
DDR5
RAM Technology
DDR5 (Quad Channel)ECC Registered memory (RDIMM/ RDIMM-3DS/ RDIMM-9x4)
RAM Slots
8 x DIMM
Maximum Memory
2048GB
LAN
10GB LAN & Dual GB LAN
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Back Panel I/O Ports
1 x Optical SPDIF Out2 x USB 3.2 Gen2 Type-A3 x USB 3.2 Gen1 Type-A2 x RJ-45 LAN1 x BIOS Flashback Button1 x Line Out Jack 1 x Microphone Input Jack
Internal I/O Connectors
1 x Virtual RAID On CPU1 x SPI TPM1 x Chassis Intrusion and Speaker1 x CPU Fan1 x CPU/Water Pump Fan3 x Chassis/Water Pump Fan1 x 24 pin ATX2 x 8 pin 12V1 x 6 pin 12V2 x 8 pin 12V1 x Front Panel Audio2 x USB 2.0
CPU Support
Click here for CPU support
Package Type
Retail
Package Weight
2.6000 kg
Graphics Ports
-
Additional Features
See Overview
Graphics
-
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
2 x LAN
Max LAN Speed
10GB LAN
PCI/PCI Express
4 x PCIe 5.0 x16 (PCIE1/PCIE3 at x16; PCIE2/PCIE5 at x8)1 x PCIe 4.0 x16 (PCIE4), supports x4
Wi-Fi
Yes (Wi-Fi)
