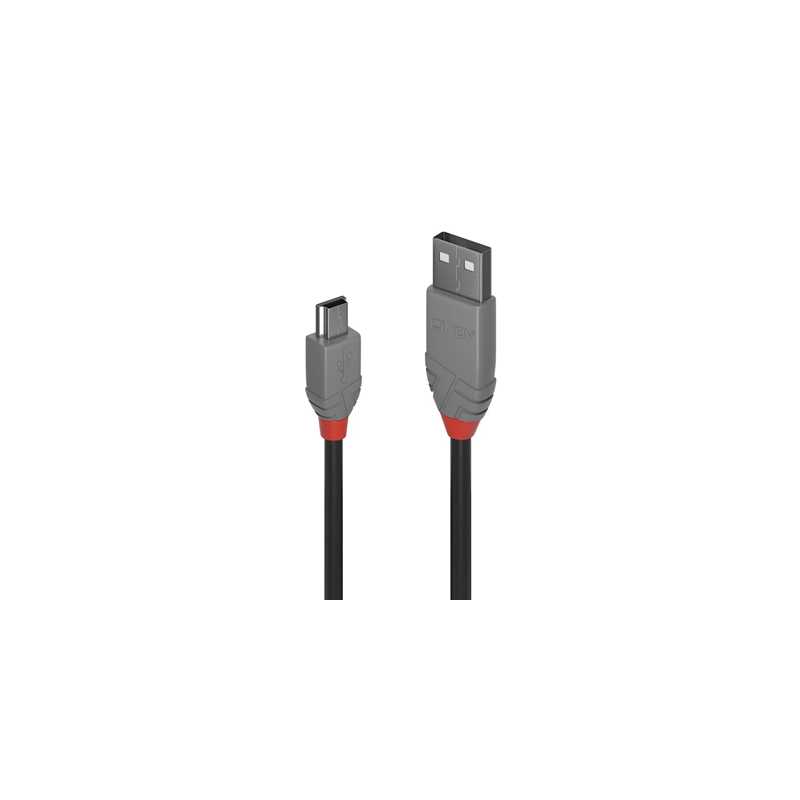

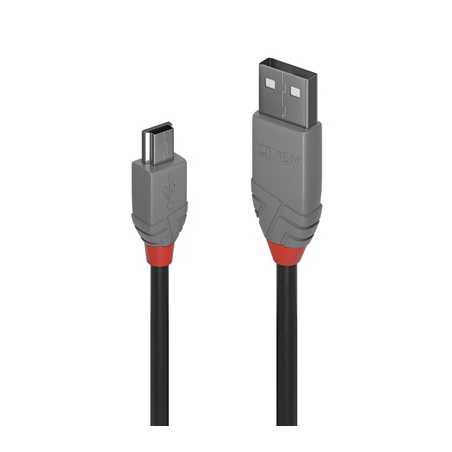

Lindy 36725 5m USB-A (M) 2.0 To USB Mini-B (M) 2.0 Anthra Line 480Mbps Cable - Black

From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to Mini-B cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel connectors maintain optimal signal integrity and maximum reliability.

Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.

Anthra Line USB 2.0 Type A to Mini-B cables are available in lengths from 0.2m to 5m.

Connectors:

Connector A:
USB 2.0 Type A Male

Connector B:
USB 2.0 Type Mini-B Male

Housing Material:
PVC

Connector Plating:
Nickel

Pin Construction:
Copper

Pin Plating:
24K Gold

Dimensions, USB A (approx.) WxDxH:
15.5x35x7.8mm (0.61x1.38x0.31in)

Dimensions, USB Mini-B (approx.) WxDxH:
10x24x7.6mm (0.29x0.95x0.30in)

Cable Construction:

Length:
5m (16.44ft)

Standard:
USB 2.0

Colour:
Black

Type:
Round

Jacket Diameter:
3.8mm (0.15in)

Jacket Material:
PVC

Conductor Material:
Tinned Copper

Conductor Gauge:
28AWG

Shielding:
Aluminium Magnesium Braid

Specifications:

Supported Bandwidth:
480Mbps

Nominal Attenuation:
5.8db/km

Minimum Bend Radius:
16mm (0.63in)

Operating Temperature:
0°C - 60°C (32°F - 140°F)

Storage Temperature:
0°C - 60°C (32°F - 140°F)

Miscellaneous:

Packaging Type:
Polybag

Warranty (Years):
10

Certificated:
RoHS, REACH, UL
