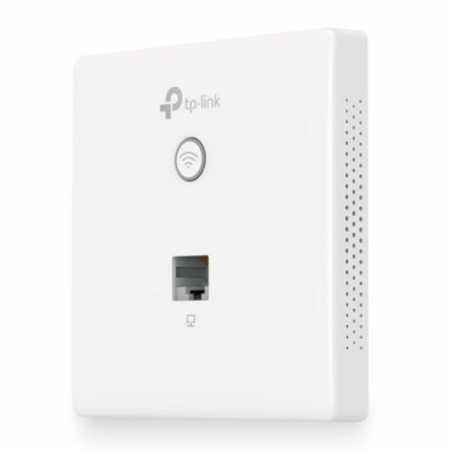

TP-LINK (EAP115-WALL) Omada 300Mbps Wireless N Wall Mount Access Point, PoE, 10/100, Free Software
£41.27
VAT included
Delivered within 1-2 days.
- Easy-mount construction enables easy installation into any standard EU-type data wall-box
- Sleek, compact design blends perfectly with the existing interior style.
- Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs
- Support Power over Ethernet(802.3af) for convenient and affordable installation
- 300Mbps wireless data rate for uninterrupted wireless connection
- Captive portal provides one convenient method of authentication for Wi-Fi guests
- Access Control restricts or allows the client to access the specified network segment
- Reboot Schedule enables all the APs to be rebooted automatically within a specified time
- WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN
- Compatible with 802.11 b/g/n products
- QoS function prioritizes data, voice, and video applications to ensure time-sensitive traffic takes priority over all other traffic
- Multiple operating modes satisfy different application conditions including managed AP and standalone AP modes
- Load balance ensures large numbers of users have smooth network experiences in large business networks
- Multi-SSID divides multiple wireless network for different users
- Rate limit on per SSID to restrict the bandwidth of each client
Installation Made Easy
- Detach the faceplate of the junction box* with a screwdriver.
- Remove the faceplate of the EAP.
- Connect an in-wall Ethernet cable to the Uplink+POE port.
- Secure the access point to the wall using the nails provided.
- Press the faceplate back into position.
*Fit for flowing two kinds of wall junction box
Perfectly Formed
The EAP115-Wall would blend seamlessly into any business setting with a refined, minimalist appearance. A slimline design includes casing that’s just 11 mm in thickness.
Effortless Deployment
With 802.3af Power over Ethernet supported there’s no need for additional wiring. Simply plug in existing Ethernet cables and you’re ready to go.
Complete Wireless Coverage
An EAP in each room guarantees a strong wireless signal and allows guests to enjoy their own private Wi-Fi network.
Centralized Management
Manage and monitor hundreds of EAPs with ease, all from a single location. TP-Link’s free Auranet Controller Software provides an intuitive management interface with no special training required. Wi-Fi management has never been so simple or cost-effective.
Customized Guest Authentication with Captive Portal
Captive portal provides a convenient method of authentication for Wi-Fi guests. Choose from a range of authentication options and create a unique authentication page to advertise your business to users.
- Easy-mount construction enables easy installation into any standard EU-type data wall-box
- Sleek, compact design blends perfectly with the existing interior style.
- Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs
- Support Power over Ethernet(802.3af) for convenient and affordable installation
- 300Mbps wireless data rate for uninterrupted wireless connection
- Captive portal provides one convenient method of authentication for Wi-Fi guests
- Access Control restricts or allows the client to access the specified network segment
- Reboot Schedule enables all the APs to be rebooted automatically within a specified time
- WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN
- Compatible with 802.11 b/g/n products
- QoS function prioritizes data, voice, and video applications to ensure time-sensitive traffic takes priority over all other traffic
- Multiple operating modes satisfy different application conditions including managed AP and standalone AP modes
- Load balance ensures large numbers of users have smooth network experiences in large business networks
- Multi-SSID divides multiple wireless network for different users
- Rate limit on per SSID to restrict the bandwidth of each client
Installation Made Easy
- Detach the faceplate of the junction box* with a screwdriver.
- Remove the faceplate of the EAP.
- Connect an in-wall Ethernet cable to the Uplink+POE port.
- Secure the access point to the wall using the nails provided.
- Press the faceplate back into position.
*Fit for flowing two kinds of wall junction box
Perfectly Formed
The EAP115-Wall would blend seamlessly into any business setting with a refined, minimalist appearance. A slimline design includes casing that’s just 11 mm in thickness.
Effortless Deployment
With 802.3af Power over Ethernet supported there’s no need for additional wiring. Simply plug in existing Ethernet cables and you’re ready to go.
Complete Wireless Coverage
An EAP in each room guarantees a strong wireless signal and allows guests to enjoy their own private Wi-Fi network.
Centralized Management
Manage and monitor hundreds of EAPs with ease, all from a single location. TP-Link’s free Auranet Controller Software provides an intuitive management interface with no special training required. Wi-Fi management has never been so simple or cost-effective.
Customized Guest Authentication with Captive Portal
Captive portal provides a convenient method of authentication for Wi-Fi guests. Choose from a range of authentication options and create a unique authentication page to advertise your business to users.
EAP115-WALL
8 Items
Data sheet
- Warranty
- Limited Lifetime
- Package Type
- Retail
- Package Weight
- 0.2000 kg
- Type
- Access Point
- Power Supply
- PoE (IEEE 802.3af)
- Interface(s)
- 2 x 10/100Mbps Ethernet (RJ-45) Port
- Package Contents
- Access Point EAP115-WallInstallation GuideMounting Screw
- Power Consumption
- 2.8 W
- Wireless Functions
- Multiple SSIDs (Up to 8 )Enable/Disable Wireless RadioAutomatic Channel AssignmentTransmit Power ControlQoS(WMM)Load BalanceRate LimitReboot ScheduleWireless ScheduleWireless Statistics (SSID/AP/Client)
- Wireless Security
- Captive Portal AuthenticationAccess ControlWireless Mac Address FilteringWireless Isolation Between ClientsSSID to VLAN MappingRogue AP Detection802.1X Support64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
- Dimensions (W x D x H)
- 86.8 x 86.8 x 30.2 mm
- Dual Band
- No
- Antenna
- 2 x Internal 1.8dBi Omni
- Environment (℃)
- Operating Temperature: 0C~40C (32F~104F)Storage Temperature: -40C~70C (-40F~158F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
- Dimensions ( W x D x H )
- 86.8 x 86.8 x 30.2 mm
- Max Signal Rate
- 300 Mbps
- Wireless Standards
- IEEE 802.11n/g/b/a
- Button(s)
- LED/Wi-Fi Button, RESET
- Management
- EAP Controller SoftwareEmail AlertsLED ON/OFF ControlManagement MAC Access ControlSNMP: v1,v2cLocal/Remote SyslogTelnetWeb-based Management:HTTP/HTTPSL3 ManagementMulti-site ManagementManagement VLAN
- Frequency
- 2.4GHz
- Advanced Functions
- See Overview
- Weatherproof
- No
- Environment (°C)
- Operating Temperature: 0C~40C (32F~104F)Storage Temperature: -40C~70C (-40F~158F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
- Primary Function
- Access Point
- Access Point Mode
- Yes (Access Point Mode)
