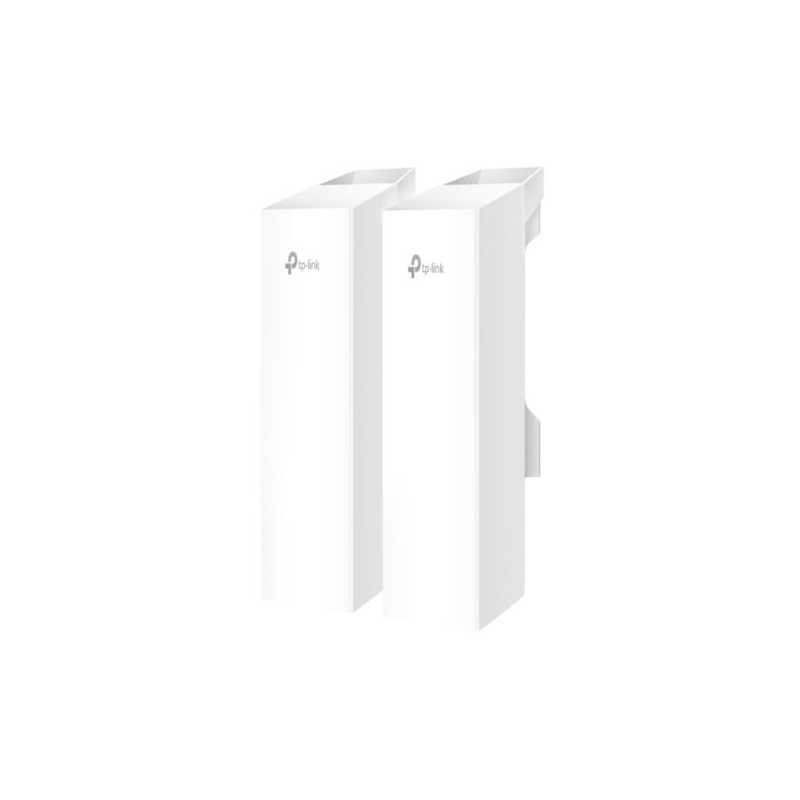

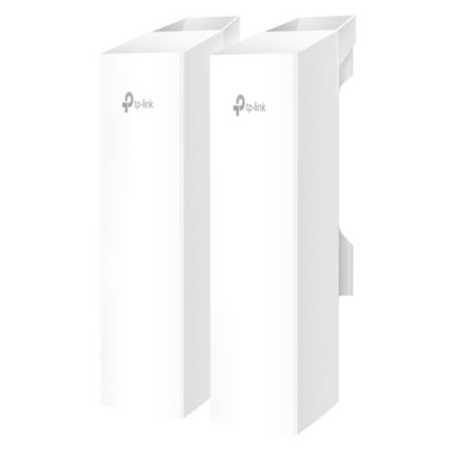

TP-LINK (EAP215-BRIDGE KIT) Omada Wireless Bridge 5GHz 867Mbps Long-Range Indoor/Outdoor Access Point
search
  • TP-LINK (EAP215-BRIDGE KIT) Omada Wireless Bridge 5GHz 867Mbps Long-Range Indoor/Outdoor Access Point

TP-LINK (EAP215-BRIDGE KIT) Omada Wireless Bridge 5GHz 867Mbps Long-Range Indoor/Outdoor Access Point

£134.09
VAT included
Stock status: Moderate
67 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%




Omada Wireless Bridge 5 GHz 867 Mbps Long-Range Indoor/Outdoor Access Point

  • 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.
  • Ideal for long-range wireless transmission up to 5 km.
  • Auto-pairing and agile LEDs for efficient deployment.
  • 3x Gigabit Ethernet ports for more high-speed IP camera connections.
  • Supports Omada SDN for remote and centralized management.
  • IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.
  • Supports Passive PoE for flexible deployment (adapter included).





Omada Professional Outdoor Wireless Bridge Solution

Up to 3.1mi (5km) Distance
Ideal for setting up networks in remote locations.

Up to 70° Beamwidth for Wider Deployment
One central AP covers more distributed APs and cameras, eliminating the need for multiple central APs.

Three Ports for More Devices
Connect more cameras and devices without an extra switch.

IP65 Weatherproof for Outdoor Use
Durable performance with IP65 rating and operating range of -40°F to 158°F (-40°C to 70°C).

Standalone or Omada SDN Mode
Flexible dual modes for batch deployment and remote management via the Omada app or Web UI.






Outdoor PtP (Point-to-Point) Wi-Fi Connection

Extend Wi-Fi to Additional Buildings
Extend your home network or Wi-Fi to your shop, barn, garage, farm, storehouse, guesthouse, or RV.

Extend Wi-Fi to Additional Offices
Provide 550Mbps bandwidth within a 328ft (100m) range using the EAP215-Bridge KIT or EAP211-Bridge KIT.

Elevator PtP Wi-Fi for Surveillance
Record real-time video to an NVR with virtually no hardwiring required






Outdoor PtMP (Point-to-Multipoint) Wi-Fi for Surveillance

Parking Lots
Remotely connect cameras to reduce crime and accidents

Farms / Orchards
Remotely connect cameras to protect your property

Construction Sites
Rapidly deploy wireless networks to remotely monitor construction progress in real time or manage logistics.






Easy Setup and Installation

Auto-Pairing to Reduce Setup Time
*Auto pairing works for the original kit. Three or more bridges require manual setup.

Signal Strength LEDs
LED Signal Indicator for Easy Alignment

Pole/Wall Mount for Easy Installation
*Pole mounting accessories are included, while the bracket for wall mounting and pole mounting requires purchase separately.






Standalone Mode

Simple Setup for Individual Scenarios
1. Power on both bridges and connect one to the network via cable to make it the main bridge.
2. Set up the main bridge using the Omada App or Web UI, then configure the sub-bridge step by step.
3. Deploy the sub-bridge at the remote location, align it using the signal LED, and optimize with the app if needed.






Works with Omada SDN

Faster Batch Deployment and Remote Management
Omada bridges integrate with Omada SDN for centralized management and remote access, enabling faster batch deployment of multiple bridge pairs, using batch provisioning.






Designed for Outdoors
  • IP65 Weatherproof
  • 6kV Lightning Protection-40 °F-158 °F Working Range
  • Wind Resistance







EAP215-BRIDGE KIT
67 Items

Data sheet

Warranty
2 Years
Package Type
Retail
Dimensions
79 x 60 x 224 mm
Power Supply
12V DC / 24V Passive PoE (Passive PoE adapter included.)
Interface(s)
3 x Gigabit Ethernet Ports
Package Contents
EAP215-Bridge KITPassive PoE AdapterPower CordInstallation GuideMounting Kit
Power Consumption
11.5W
Wireless Functions
MeshMU-MIMO: 5G 2x2 MU-MIMO DLLoad BalanceBeamformingSeamless Roaming(802.11r)Airtime FairnessMultiple SSIDs:8Wireless StatisticsWireless ScheduleReboot ScheduleRADIUS AccountingMAC AuthenticationStatic IP/Dynamic IP
Wireless Security
VLANAccess ControlRogue AP DetectionCaptive Portal AuthenticationMaximum number of MAC Filter: 4,000WPA-Personal/Enterprise, WPA2-Personal/Enterprise
Wireless Range
Ideal for long-range wireless transmission up to 5 km
Wireless Standards
IEEE 802.11 a/b/g/n/ac
Button(s)
Reset Button
Max Wireless Transfer Rate
867 Mbps
Max Wired Transfer Rate
10/100/1000 Mbps
Bands
N/A
Frequency
5 GHz
Environment
Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);Operating Humidity: 10%–90% non-condensing;Storage Humidity: 5%–90% non-condensing
Protection
6 KV Lightning Protection
Advanced Functions
See Overview
Weatherproof
Yes (Weatherproof)
Antenna(s)
Internal 2x2 Dual-polarized directional MIMO antennas5 GHz: 11.0 dBiHorizontal: 35°, Vertical: 35°
Wireless Standard
802.11ac (Wi-Fi 5)
Primary Function
Access Point
Access Point Mode
Yes (Access Point Mode)
