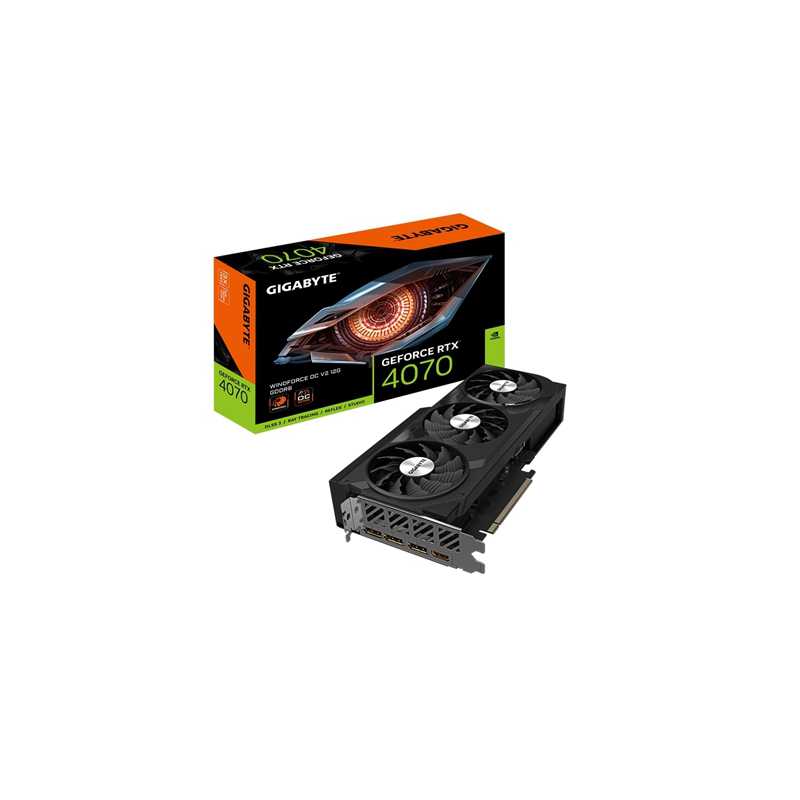

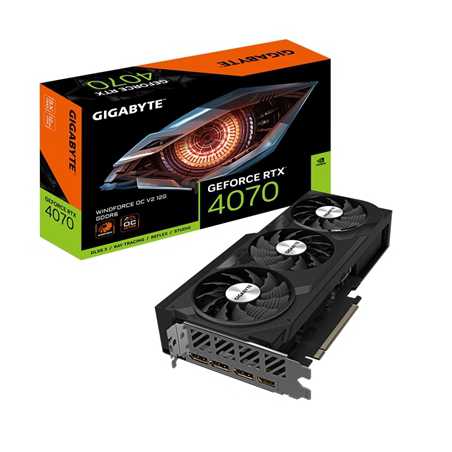

Gigabyte Nvidia GeForce RTX 4070 WINDFORCE OC V2 12GB Graphics Card

GeForce RTX 4070 WINDFORCE OC V2 12G

Key Features
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX 4070
Integrated with 12GB GDDR6 192-bit memory interface
WINDFORCE cooling system
Protection metal back plate

CORE CLOCK
2490 MHz (Reference Card: 2475 MHz)

The Ultimate Platform for Gamers and Creators
Powered by GeForce RTX 40 Series and DLSS 3

New Streaming Multiprocessors
Up to 2x performance and power efficiency

Fourth-Gen Tensor Cores
Up to 4x performance with DLSS 3 vs. brute-force rendering

Third-Gen RT Cores
Up to 2x ray tracing performance

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.

Specification

Graphics Processing
GeForce RTX 4070

Core Clock
2490 MHz (Reference Card: 2475 MHz)

CUDA Cores
5888

Memory Clock
20 Gbps

Memory Size
12 GB

Memory Type
GDDR6

Memory Bus
192 bit

Card Bus
PCI-E 4.0

Digital Max Resolution
7680x4320

Multi-view
4

Card Size
L=261 W=126 H=50 mm

PCB Form
ATX

DirectX
12 Ultimate

OpenGL
4.6

Recommended PSU
650W

Power Connectors
8 pin x 1

Output
DisplayPort 1.4a x 3
HDMI 2.1a x 1

Accessories
Quick guide
