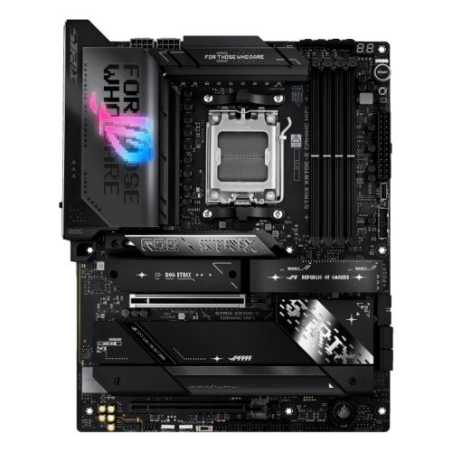

Asus ROG STRIX X870E-E GAMING WIFI, AMD X870E, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 5G LAN, PD 30W, RGB, 5x M.2
£514.92
VAT included
Delivered within 1-2 days.
The ROG Strix X870E-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen™ 9000 Series processors.
Featuring PCIe® 5.0 support, AI Overclocking, AI Cooling II, AI Networking II, and AEMP, setup is streamlined while performance is maximized. Dual USB4® Type-C ports and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads. This motherboard not only meets the demands of gaming and professional applications but also delivers the power and connectivity essential for advanced AI PC applications.
- 18+2+2 power stages
- Dynamic OC Switcher
- Core Flex
- DDR5 slots with AEMP & NitroPath DRAM Technology
- WiFi 7 with ASUS WiFi Q-Antenna
- 5 M.2 slots
- PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim
- Full support for next-gen graphics cards
- 2 USB4 ports
- USB 20Gbps Type-C with PD 3.0 up to 30W
- AI Overclocking
- AI Cooling II
- AI Networking II
- Aura Sync RGB lighting
Asus AI Intelligence
- AI Overclocking - Tuning is now faster and smarter than ever before.
- AI Networking II - AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7
- AI Cooling II - Balance the thermals and acoustics of any build with a single click.
Overclocking
Dynamic OC Switcher - Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
Core Flex - Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.
Asynchronous Clock - For next-level frequency flexibility, the ROG Strix X870E-E features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed. Drive CPU performance to its absolute brink while maintaining the stability of related clock domains.
PBO Enhancement - AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.
Memory
- DDR5 Domination - The Strix X870E-E is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support.
- NitroPath DRAM Technology - Frequency up to 400 MT/s higher. Slot retention force enhanced by 57%
- AEMP - ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.
Cooling
- M.2 Combo-Sink - This M.2 heatsink integrates a direct-contact U-shaped heat pipe to achieve optimal operating temperatures, and it has been upgraded with a larger surface area for even more cooling.
- M.2 Backplate - An integrated backplate helps ensure that high-performance drives can deliver peak performance, even when airflow is restricted.
- M.2 Heatsinks - Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.
- VRM Heatsink Array - Two thick VRM heatsinks are connected by a heatpipe, sharing cooling capacity across VRMs and providing ample surface area and mass to handle the power needs of high-performance AMD Ryzen™ 9000 Series processors.
- CPU Fan Headers - A dedicated pair of PWM/DC fan headers provides easy access to CPU coolers.
- AIO Pump Fan Header - A dedicated PWM/DC header connects self-contained water-cooling setups.
- 4-pin Fan Headers - The Strix X870E-E features five chassis fan headers, each supporting auto-detection of PWM or DC fans.
Leading Connectivity
- WIFI 7 - The revolutionary WiFi 7 is up to 4.8X times faster than standard WiFi 6*, thanks to tech like 320 MHz channels** on the 6GHz band and 4K QAM. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.
- ASUS WiFi Q-Antenna - Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.
- Realtek 5Gb Ethernet - Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Realtek 5Gb Ethernet.
- PCIe 5.0 - Fully embracing the new standard, the Strix X870E-E offers end-to-end PCIe 5.0 support. The topmost x16 expansion slot is Gen 5-ready, and is protected with a SafeSlot retention bracket to bear the weight of the latest graphics cards. Three of the onboard M.2 slots are geared for blistering 16 GB/s read and write speeds thanks to its PCIe 5.0 interface, while all the rest can deliver still-impressive 8 GB/s transfers. Every M.2 slot is covered with substantial heatsinks to dispatch the heat of next-gen drives.
- Dual USB4® Ports - Each USB4® port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. External display support reaches up to 8K output if one of the ports is in use, or both can be employed for dual 4K displays.*
- USB 20Gbps - The Strix X870E-E comes loaded with two USB 20Gbps Type-C® connectors for speedy data transfers up to 20Gbps. One connector can be connected to the chassis front panel, while the other is located on the rear I/O and supports Power Delivery (PD) 3.0 technology, enabling rapid device charging up to 30W.
- USB Wattage Watcher - USB Wattage Watcher allows users to monitor the current wattage delivered to a device connected to the USB 20Gbps Type-C® rear I/O port. With USB Wattage Watcher, users can glance at their device's charging wattage in real-time and check on their device’s Fast-Charging status.
- Dolby Atmos - ROG and Dolby® have partnered to bring superior gaming audio quality to users. Dolby Atmos expands on traditional surround sound systems by adding height channels, which enables immersive three-dimensional audio to be perceived from above, below and around the listener.
- SupremeFX - ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix X870E-E implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.
- PCIE SLOT Q-Release Slim - With PCIe Slot Q-Release Slim, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. This makes upgrades and maintenance easier than ever before. Users will no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.
- M.2 Q-Release
- The M.2 heatsink features a convenient switch to quickly remove it, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.
- M.2 Q-Slide - This new sliding M.2 latch design supports sizes 2242, 2260 and 2280 for easy device installation.
- New M.2 Q-Latch - The new Q-Latch design allows for tool-free installation or removal of M.2 SSDs with just one press.
- Q-Antenna - With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
- Q-LED - The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components CPU, RAM, graphics card, storage devices are functioning normally during startup. Builders can use the Q-LED feature to correct power delivery issues affecting their motherboard, and it can also alert them when memory modules have not been properly installed--even before attempting to boot a newly built PC.
- Clear CMOS & BIOS Flashback - The Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected. BIOS FlashBack is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.
BIOS
- BIOS Q-Dashboard - Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.
- UEFI BIOS - The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
Software Utilities
Asus GlideX
ASUS GlideX is a cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets, and smartphones via USB or WiFi. Features include screen mirroring, screen extension, unified control with one keyboard and mouse, easy file transfers, and using mobile cameras as PC webcams. It's compatible with Windows, macOS, Android, and iOS.
HWiNFO
HWiNFO and ROG have collaborated on this comprehensive system information and diagnostic tool that provides detailed information about hardware components and real-time monitoring of system performance in ROG style. It supports a wide range of hardware devices, and it is regularly updated to include the latest technologies.
Asus DriverHub
ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and performing optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. By default, it supports ASUS motherboards, and users are invited to install ASUS DriverHub after OS installation. Additionally, ASUS DriverHub offers one-click installation and update checks, making it easier for users to keep their systems running smoothly and efficiently.
AIDA64 Extreme
The ROG Strix X870E-E includes a sixty-day AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers*.
*Support available for ROG Ryujin II and later models.
Armoury Crate
Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.
Outshine The Competition
ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.
90MB1IB0-M0EAY0
24 Items
Data sheet
- .
- 1 x CPU Over Voltage jumper1 x FlexKey button 1 x Front Panel Audio1 x Start button1 x 10-1 pin System Panel1 x Thermal Sensor
- Wireless
- Wi-Fi 72x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency bandSupport Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.Bluetooth v5.4
- RAM Speeds
- 8200+MT/s(OC) with Ryzen 9000 Series CPUs8400+MT/s(OC) with Ryzen 8000 Series CPUs8000+MT/s(OC) with Ryzen 7000 Series CPUs
- Accessories
- 2 x SATA 6Gb/s cables 1 x Thermal pad for M.2 221101 x ASUS Wi-Fi moving antennas 1 x Cable ties pack1 x M.2 Q-Latch package2 x M.2 Q-Slides1 x ROG key chain1 x ROG Strix stickers5 x M.2 Rubbers1 x Quick start guide
- USB Ports Supported
- Rear:2 x USB4 (40Gbps) Type-C1 x USB 20Gbps Type-C (up to 30W PD Fast-charge)10 x USB 10Gbps (9 Type-A + 1 Type-C)Front:1 x USB 20Gbps Type-C4 x USB 5Gbps6 x USB 2.0
- Storage
- 4 x SATA III5 x M.2Ryzen 9000 & 8000 & 7000 CPUs:M.2_1 (2242/2260/2280) - PCIe 5.0 x4M.2_2 (2242/2260/2280) - PCIe 5.0 x4M.2_3 (2242/2260/2280) - PCIe 5.0 x4X870E Chipset:M.2_4 (2280) - PCIe 4.0 x4M.2_5 (2280) - PCIe 4.0 x4
- RAID
- AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Funciton is only supportted by AMD Ryzen 9000series CPU
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- AMD AM5
- Chipset
- AMD X870E
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)ECC and Non-ECC, Un-buffered MemorySupports AMD EXPONitroPath DRAM TechnologyASUS Enhanced Memory Profile
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 192GB
- LAN
- 5GB LAN
- Audio
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Back Panel I/O Ports
- 2 x USB4 (40Gbps) Type-C1 x USB 20Gbps Type-C (up to 30W PD Fast-charge)10 x USB 10Gbps (9 Type-A + 1 Type-C)1 x HDMI1 x Wi-Fi Module1 x Realtek 5Gb2 x Gold-plated audio jacks 1 x Optical S/PDIF out port1 x BIOS FlashBack button 1 x Clear CMOS button
- Internal I/O Connectors
- 1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan1 x 4-pin AIO Pump5 x 4-pin Chassis Fan1 x 24-pin Main2 x 8-pin +12V CPU5 x M.2 (Key M) 4 x SATA 6Gb/s1 x USB 20Gbps Type-C2 x USB 5Gbps3 x USB 2.03 x Addressable Gen2
- CPU Support
- AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
- Package Type
- Retail
- Graphics Ports
- 1 x HDMI2 x USB4 (40Gbps) support USB Type-C display outputs
- Additional Features
- See Overview
- Graphics
- Integrated GraphicsGraphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 5GB LAN
- RGB Lighting
- Out of the box RGB lighting
- PCI/PCI Express
- 1 x PCIe 5.0 x16 (supports x16 mode)1 x PCIe 4.0 x16 (supports x4 mode)
- Wi-Fi
- Yes (Wi-Fi)
