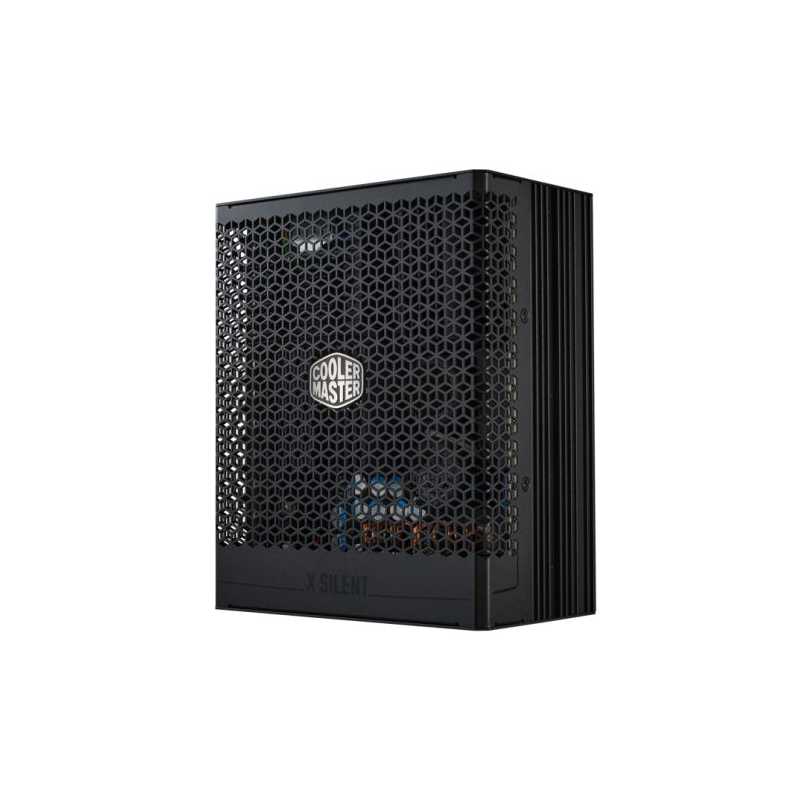

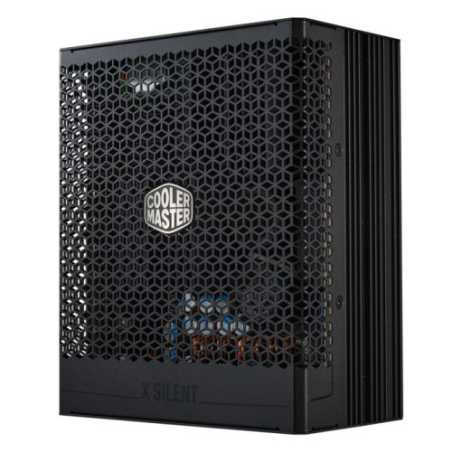

Cooler Master 850W X Silent Edge Platinum ATX 3.1 Fanless PSU, Fully Modular, Digital Monitor, PCIe 5.1, 80+ Platinum
search
  • Cooler Master 850W X Silent Edge Platinum ATX 3.1 Fanless PSU, Fully Modular, Digital Monitor, PCIe 5.1, 80+ Platinum

Cooler Master 850W X Silent Edge Platinum ATX 3.1 Fanless PSU, Fully Modular, Digital Monitor, PCIe 5.1, 80+ Platinum

£470.11
VAT included
Stock status: Very low
Last 3 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%



Precise Silent Power


Introducing the X Silent Edge Platinum, the industry's first PSU to achieve 850W. The Edgefeatures totally silent and dustless performance, innovative heat pipe technology, advanced heat dissipation, 80 Plus Platinum efficiency, an active bridge rectifier, and a digital monitor powered by Cooler Master’s MasterCTRLsoftware. With these features, the Edge provides precise and silent power.

The X Silent Edge Platinum also includes ATX 3.1 support, a durable 12V-2x6 cable, reliable, industrial-grade Infineon IC chips, fully modular cabling, high-quality Japanese capacitors, and a 15-year warranty. The X Silent E



Dustless silence
A fanless design provides total silence and a dustfree environment.



Innovative heat pipe technology
Implements our in-house designed superconductive composite heat pipe technology.



Advanced heat dissipation and thermal performance
A patented aluminum thermal mold efficiently dissipates heat.



80 Plus Platinum efficiency certification
This unit is certified to achieve more than 92% efficiency at typical loads.



Active bridge rectifier
Bridge diodes have been replaced with an active bridge rectifier to improve performance.



ATX 3.1 support & a durable 12V-2x6 cable
Includes ATX 3.1 support and a 90-degree 12+4pin (12V-2x6) PCIe 5.1 cable featuring lower temperatures, enhanced durability, and improved safety.



PMBus port support
Server-level standard port monitors efficiency, fan speed, temperatures, current load, and overall performance.



External fan port
An installed external fan can enhance heat dissipation and improve performance of the system.



Digital monitor
Cooler Master’s MasterCTRL software allows users to monitor temperature, current load, and overall performance.



Long-lasting reliability
Built with Infineon industrial-grade IC chips for high quality performance and long-lasting reliability.



Fully modular cabling
Efficiently reduces clutter, increases airflow, and improves overall efficiency and thermal performance.



High-quality Japanese capacitors
Large, high-quality Japanese capacitors feature reduced ripple noise and enhanced reliability.



15-year warranty
This unit comes with a standard limited manufacturing warranty of 15 years from the date of purchase.

MPS-8501-AZAP-BUK
3 Items

Data sheet

Warranty
15 Years
Form Factor
ATX
Additional Features
External fan portA patented aluminium thermal moldSuperconductive composite heat pipe technologyActive bridge rectifierHigh-quality Japanese capacitorsDigital monitor powered by MasterCTRL softwareindustrial grade Infineon IC chipsPMBus port support
Series
Cooler Master X Silent Edge Platinum
Weight/Dimensions
4.5 kg(LxWxH) 180 x 150 x 86mm
Compatibility
ATX 12V Ver. 3.1PCIe 5.1
Wattage
850 W
Efficiency
Up to 92% @ Typical Load
Modular
Fully Modular
AC Input
100 - 240V
Fan Type
Fanless design
Noise
Silent
MTBF
100,000 Hours
PFC
Active PFC
Protection
OPP / OVP / OTP / OCP/ SCP / UVP / Surge & Inrush Protection
80+ Certification
80+ Platinum
Wattage Range
800 - 860W
Comments (0)
No customer reviews for the moment.
