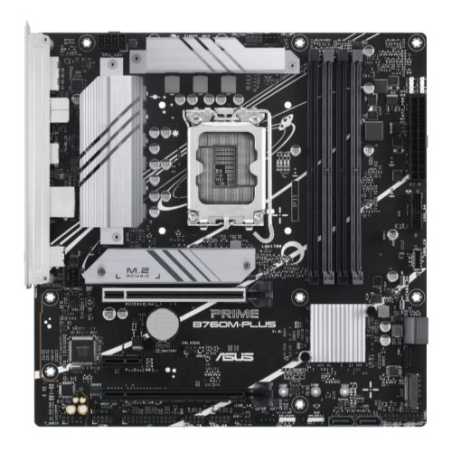

Asus PRIME B760M-PLUS, Intel B760, 1700, Micro ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe4, 2x M.2
£143.24
VAT included
Delivered within 1-2 days.
ATX motherboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, HDMI™, SATA 6 Gbps, rear USB 10Gbps, front USB 5Gbps Type-C®, Aura Sync
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 10Gbps, front USB 5Gbps Type-C®
- Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Prime
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th & 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-PLUS provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.
Flexibility
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Cooling
PRIME B760 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Performance
The PRIME B760 series are built to handle the high core counts and bandwidth demands of 14th & 13th Gen Intel® Core™ Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
Customisation
PRIME B760 series add the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
** Click here for full product details **
90MB1GY0-M0EAY0
10 Items
Data sheet
- .
- 1 x Aura RGB1 x Clear CMOS1 x COM Port1 x Front Panel Audio1 x LPT1 x S/PDIF Out1 x SPI TPM (14-1pin)1 x 20-3 pin System Panel
- Wireless
- -
- RAM Speeds
- Up to 7200+(OC)
- Accessories
- 2 x SATA 6Gb/s cables1 x M.2 Rubber Package1 x Screw package for M.2 SSD1 x Quick start guide
- USB Ports Supported
- Rear:2 x USB 10Gbps Type-A4 x USB 2.0 Type-AFront:1 x USB 5Gbps Type-C2 x USB 5Gbps5 x USB 2.0
- Storage
- 4 x SATA III1 x M.2 (2242/2260/2280) - PCIe 4.0 x41 x M.2 (2242/2260/2280) - PCIe 4.0 x4
- RAID
- Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- Intel 1700
- Chipset
- Intel B760
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)Non-ECC, Un-buffered MemoryDual Channel Memory ArchitectureSupports Intel Extreme Memory Profile (XMP)ASUS Enhanced Memory Profile II (AEMP II)*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 192GB
- LAN
- 2.5GB LAN
- Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- Back Panel I/O Ports
- 2 x USB 10Gbps Type-A4 x USB 2.01 x DisplayPort1 x HDMI1 x Realtek 2.5Gb Ethernet3 x Audio jacks1 x PS/2 Keyboard/Mouse combo
- Internal I/O Connectors
- 1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan2 x 4-pin Chassis Fan1 x 24-pin Main1 x 8-pin +12V2 x M.2 (Key M)4 x SATA 6Gb/s1 x USB 5Gbps Type-C1 x USB 5Gbps3 x USB 2.03 x Addressable Gen2
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated GraphicsGraphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 2.5GB LAN
- PCI/PCI Express
- 1 x PCIe 4.0 x161 x PCIe 4.0 x16 (supports x4 mode)1 x PCIe 4.0 x1
