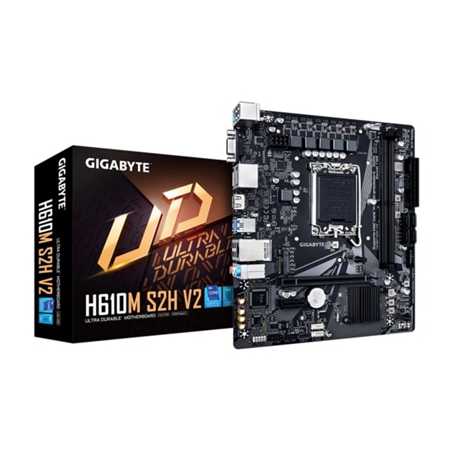

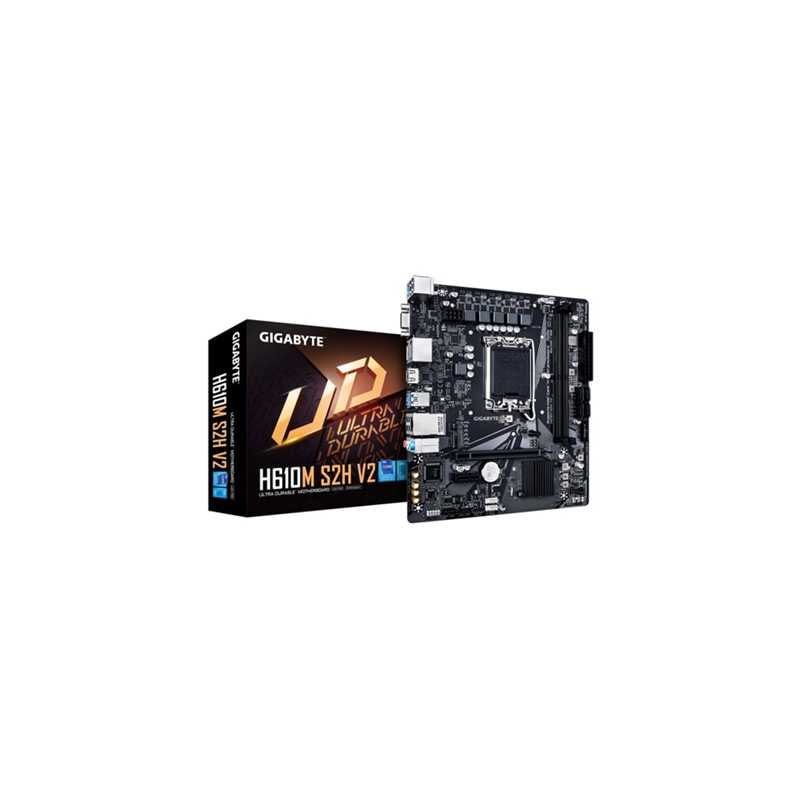

Gigabyte H610M S2H V2 Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 2x DisplayPort
search
  • Gigabyte H610M S2H V2 Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 2x DisplayPort
  • Gigabyte H610M S2H V2 Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 2x DisplayPort

Gigabyte H610M S2H V2 Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 2x DisplayPort

£78.21
VAT included
Stock status: Very low
Last 20 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%

Motherboard Specifications




Processor Support



  • Supports Intel® Core™ 14th/13th/12th processors
  • * Actual support may vary by CPU.




Memory



  • Dual Channel Non-ECC Unbuffered DDR5
  • 2 DIMMs




Power Delivery



  • 4+1+1 Hybrid Digital VRM Design




Networking



  • Gigabit Ethernet (GbE) LAN with Bandwidth Management




Storage



  • NVMe PCIe 3.0 x4 M.2




Display Connectivity



  • 2 x DisplayPort
  • HDMI Port
  • D-Sub Port
  • Supports Multiple Display Outputs




Audio



  • High-Quality Audio Capacitors
  • Audio Noise Guard




Cooling



  • Smart Fan 6 Features
  • Multiple Temperature Sensors
  • Hybrid Fan Headers with FAN STOP




Software



  • GIGABYTE APP Center for Easy Use




Durability



  • Anti-Sulfur Resistor Design


Motherboard Specifications




CPU



  • LGA1700 socket: Supports 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors
  • L3 cache varies with CPU
  • * Please refer to "CPU Support List" for more information.




Chipset



  • Intel® H610 Express Chipset




Memory



  • 14th and 13th Gen Intel® Core™ i9/i7 Processors:

    • Support for DDR5 5600/5200/4800/4400 MT/s memory modules

  • 13th Gen Intel® Core™ i5/i3 and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors:

    • Support for DDR5 4800/4400 MT/s memory modules

  • 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB per DIMM)
  • Dual channel memory architecture
  • Support for ECC and non-ECC Un-buffered DIMMs
  • Support for Extreme Memory Profile (XMP)
  • * CPU and memory configurations may affect the supported memory types and speed. Refer to the Memory Support List for more details.




Onboard Graphics



  • Integrated Intel® HD Graphics:

    • 1 x D-Sub port (Max resolution: 1920x1200@60 Hz)
    • 1 x HDMI port (Max resolution: 4096x2160@60 Hz)
    • 2 x DisplayPorts (Max resolution: 4096x2304@60 Hz)

  • Support for up to triple-display at the same time
  • * Graphics specifications vary based on CPU support.




Audio



  • Realtek® Audio CODEC
  • High Definition Audio
  • Supports 2/4/5.1/7.1-channel audio
  • * Audio jack functionality can be configured through software.




LAN



  • Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)




Expansion Slots



  • CPU:

    • 1 x PCI Express x16 slot (PCIe 4.0, runs at x16)

  • Chipset:

    • 1 x PCI Express x1 slot (PCIe 3.0, runs at x1)





Storage Interface



  • 1 x M.2 connector (PCIe 3.0 x4/x2 SSD support)
  • 4 x SATA 6Gb/s connectors




USB



  • 4 x USB 3.2 Gen 1 ports (2 on back panel, 2 via internal header)
  • 4 x USB 2.0/1.1 ports on back panel
  • 4 x USB 2.0/1.1 ports via internal headers




Internal I/O Connectors



  • 1 x 24-pin ATX power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 2 x system fan headers
  • 1 x M.2 Socket 3 connector
  • 4 x SATA 6Gb/s connectors
  • 1 x RGB LED strip header
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header
  • 1 x Clear CMOS jumper




Back Panel Connectors



  • 1 x PS/2 keyboard/mouse port
  • 1 x D-Sub port
  • 2 x DisplayPort
  • 1 x HDMI port
  • 2 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks




Form Factor



  • Micro ATX Form Factor: 22.3 cm x 19.6 cm
GIGABYTE
H610M S2H V2
20 Items

Data sheet

Form Factor
Micro ATX
Socket
1700
Chipset
Intel H610
Memory Slots
DDR5 - 2 Slots
CPU Compatibility
Intel 12th/13th/14th Gen
USB C
No
