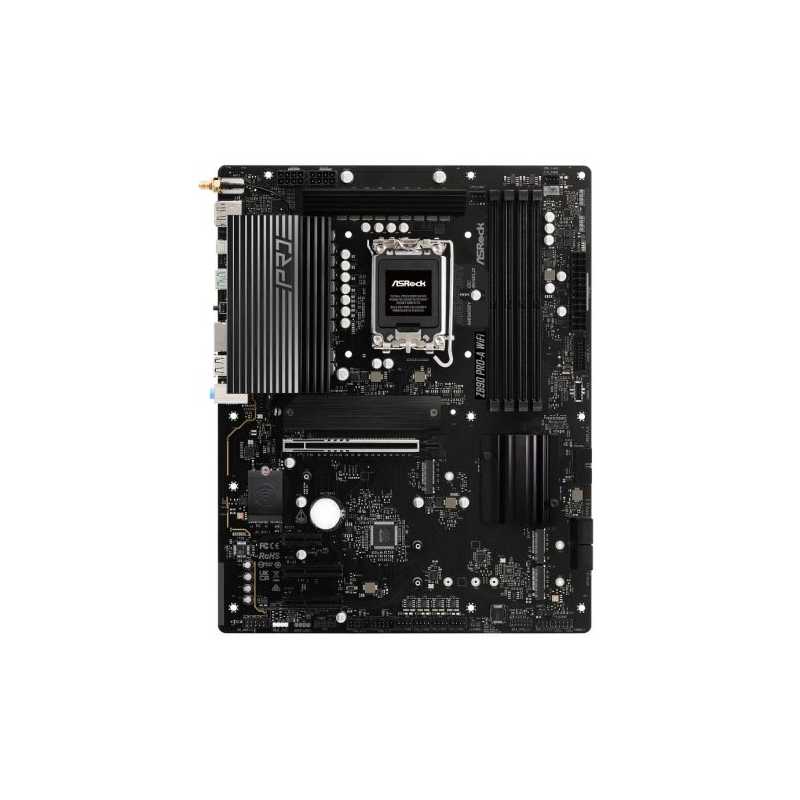

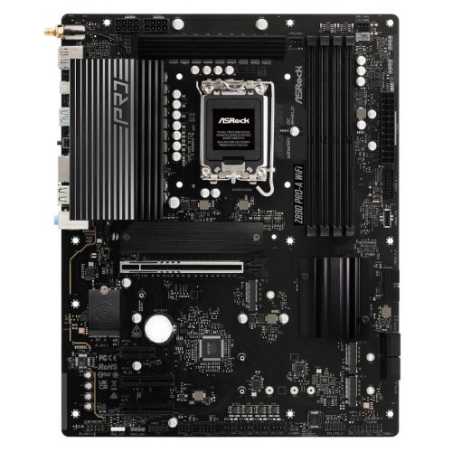

Asrock Z890 PRO-A WIFI, Intel Z890, 1851, ATX, 4 DDR5, HDMI, DP, TB4, Wi-Fi 6E, 2.5G LAN, 4x M.2
search
  • Asrock Z890 PRO-A WIFI, Intel Z890, 1851, ATX, 4 DDR5, HDMI, DP, TB4, Wi-Fi 6E, 2.5G LAN, 4x M.2

Asrock Z890 PRO-A WIFI, Intel Z890, 1851, ATX, 4 DDR5, HDMI, DP, TB4, Wi-Fi 6E, 2.5G LAN, 4x M.2

£217.36
VAT included
Stock status: Very low
Last 15 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%



Z890 PRO-A WIFI

Pro-A series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily computing needs.

  • Supports Intel® Core™ Ultra Processors (Series 2)(LGA1851)
  • 16+1+1+1+1 Power Phase, Dr.MOS for VCore+GT
  • 4 x DDR5 DIMMs
  • Supports Dual Channel, up to 9066+ (OC)
  • 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1
  • Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 Thunderbolt™ 4 Type-C
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 4 SATA3
  • 1 Blazing M.2 (PCIe Gen5 x4)
  • 2 Hyper M.2 (PCIe Gen4 x4)
  • 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
  • 1 Thunderbolt™ 4 Type-C (Rear)
  • 2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front),
  • 1 USB 3.2 Gen2 Type-A (Rear),
  • 6 USB 3.2 Gen1 (2 Rear, 4 Front),
  • 8 USB 2.0 (4 Rear, 4 Front)
  • Realtek 2.5G LAN
  • 802.11axe Wi-Fi 6E + Bluetooth
  • Supports BIOS Flashback, Memory OC Shield, Durable Caps with 1000uF Capacitance









Optimized VRM Design
  • Durable Cap with 1000uF Capacitance - The durable capacitors with 1000uF capacitance offers several benefits: Higher Capacitance, Lower Ripple, More Stable Output Current and Better Performance & System Stability
  • 16+1+1+1+1 Power Phase Design - Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
  • Dr. MOS - Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
  • Hi-Density Power Connector - CPU overclocking requires higher current, ASRock Hi-Density Power connectors is able to withstand current higher traditional CPU 8-pin and ATX 24-pin connector, giving a more stable system as well as lowering the risk of fire under heavy overclocking.






2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.







PCIe Gen5 Blazing M.2

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.







Extreme Memory Overclocking
  • DDR5 XMP & EXPO Support - Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
  • Memory OC Shield - ASRock's exclusive Memory OC Shield is a patented feature engineered to reduce electromagnetic interference (EMI) that could affect memory overclocking. By shielding memory modules from EMI noise and optimizing the layout, the Memory OC Shield enhances stability and reliability during high-frequency operations, enabling users to push their systems to the maximum potential.






DIY Friendly Design
  • M.2 Bottom Heatsink - The M.2 bottom heatsink is able to dissipate heat of the M.2 SSD efficiently through the motherboard PCB, maximize performance while maintaining system stability.






Intelligent Cooling Design
  • Aluminum Heatsink - The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.
  • PWM/DC Fan Support - ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.
  • Fan-Tastic Tuning - ASRock A-Tuning Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system's cooling performance and noise reduction requirements.






Wi-Fi 6E 802.11axe

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.







Thunderbolt™ 4 Type-C

Thunderbolt™ 4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable.







Front Panel USB 3.2 Gen2x2 Type-C Header

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.






Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.







Polychrome RGB

This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.







Reinforced Steel Slot [PCIe 5.0 Version]

The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
  • Extra anchor points
  • Stronger latch
  • Ensure signal stability
  • Make sure heavy graphics cards to be well-installed.






EZ Setting
  • Auto Driver Installer - No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
  • BIOS Flashback - Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
  • Post Status Checker - An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.



ASROCK
Z890 PRO-A WIFI
15 Items

Data sheet

.
2 x USB 3.2 Gen11 x Front Panel Type-C USB 3.2 Gen2x2
Wireless
802.11axe Wi-Fi 6E ModuleSupports IEEE 802.11a/b/g/n/ac/ax/axeSupports Dual-Band 2x2 with extended 6GHz band support2 antennas to support 2 (Transmit) x 2 (Receive) diversity techSupports Bluetooth 5.3Supports MU-MIMO
RAM Speeds
Up to 9066MHz+(OC)
Accessories
1 x I/O Shield2 x SATA Data Cables2 x ASRock WiFi 2.4/5/6 GHz Antennas
USB Ports Supported
Rear:1 x Thunderbolt 4 (USB Type-C) (up to 15W PD 3.0)1 x USB 20Gbps Type-C1 x USB 10Gbps Type-A2 x USB 5Gbps Type-A4 x USB 2.0Front:1 x USB 20Gbps Type-C4 x USB 5Gbps4 x USB 2.0
Storage
4 x SATA III4 x M.2Intel Core Ultra CPUs (Series 2):M.2_1 (2280) - PCIe 5.0 x4M.2_2 (2280) - PCIe 4.0 x4Intel Z890 Chipset:M.2_3 (2280) - PCIe 4.0 x4M.2_4 (2230/2242/2260/2280) PCIe 4.0 x4 & SATA
RAID
Supports RAID 0, 1, 5 and 10 for SATA storage devicesSupports RAID 0, 1, 5 and 10 for M.2 NVMe storage devices
Warranty
3 Year Replacement Warranty
Motherboard Type
Desktop
Form Factor
ATX
Socket
Intel 1851
Chipset
Intel Z890
DDR Type
DDR5
RAM Technology
DDR5 (Dual Channel)Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)Supports Intel XMP
RAM Slots
4 x DIMM
Maximum Memory
256GB
LAN
2.5GB LAN
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Back Panel I/O Ports
2 x Antenna1 x HDMI1 x DisplayPort 1.41 x Thunderbolt 4 Type-C1 x USB 3.2 Gen2x2 Type-C1 x USB 3.2 Gen2 Type-A2 x USB 3.2 Gen14 x USB 2.01 x RJ-45 LAN1 x BIOS Flashback ButtonHD Audio Jacks
Internal I/O Connectors
1 x SPI TPM1 x Power LED and Speaker1 x RGB LED3 x Addressable LED2 x CPU Fan5 x Chassis Fan1 x AIO Pump Fan1 x 24 pin ATX2 x 8 pin 12V1 x Front Panel Audio2 x USB 2.0
CPU Support
Support Intel Core Ultra Processors (Series 2)
Package Type
Retail
Graphics Ports
1 x HDMI1 x DisplayPort1 x Thunderbolt 4
Additional Features
See Overview
Graphics
Integrated GraphicsGraphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
2.5GB LAN
PCI/PCI Express
Intel Core Ultra CPUs (Series 2):1 x PCIe 5.0 x16 (supports x16 mode)* Intel Z890 Chipset:2 x PCIe 4.0 x4 (supports x4 mode)1 x PCIe 4.0 x1* PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots.
Wi-Fi
Yes (Wi-Fi)
