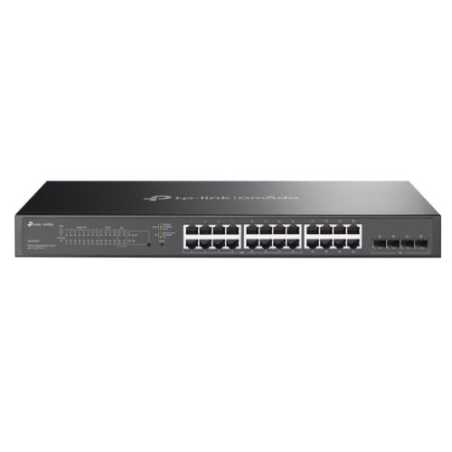

TP-LINK (SG2428LP) Omada 28-Port Gigabit Smart Switch with 16-Port PoE+, 4 GB SFP Slots, Rackmountable
search
  • TP-LINK (SG2428LP) Omada 28-Port Gigabit Smart Switch with 16-Port PoE+, 4 GB SFP Slots, Rackmountable

TP-LINK (SG2428LP) Omada 28-Port Gigabit Smart Switch with 16-Port PoE+, 4 GB SFP Slots, Rackmountable

£255.56
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock



Omada 28-Port Gigabit Smart Switch with 16-Port PoE+

  • 16x Gigabit 802.3af/at PoE+ ports
  • 8x Gigabit non-PoE RJ45 ports and 4× Gigabit SFP slots
  • 150 W total PoE budget with up to 30 W PoE output per port
  • Centralized cloud management via the web or the Omada app
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, and IGMP Snooping
  • Fanless design for quiet operation
  • Durable metal casing and rackmountable design


SG2428LP

Data sheet

.
L2 Multicast:511 IPv4, IPv6 shared multicast groupsIGMP SnoopingMulticast VLAN Registration (MVR)Multicast FilteringLimited IP Multicast (256 profiles and 16 entries per profile)
Warranty
Limited Lifetime
Package Type
Retail
Additional Features
Fanless design for quiet operationDurable metal casingAutomatic Device DiscoveryBatch ConfigurationBatch Firmware UpgradingIntelligent Network MonitoringAbnormal Event WarningsUnified ConfigurationReboot Schedule
Dimensions
440 x 220 x 44 mm
Power Supply
100-240V AC, 50/60Hz
Interface(s)
16 x Gigabit PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)8 x Gigabit non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)4 x Gigabit SFP Slots
Package Contents
SG2428LPPower CordInstallation GuideRackmount KitRubber Feet
Rackmountable
Yes
Number of Ports
28
PoE Ports (RJ45)
Standard: 802.3at/af compliantPoE+ Ports: 16 Ports (up to 30 W PoE Output per Port)PoE Power Budget: 150 W
Switching Capacity
56 Gbps
Environment
Operating Temperature: 0–40°C (32–104°F)Storage Temperature: -40–70°C (-40–158°F)Operating Humidity: 10–90% RH non-condensingStorage Humidity: 5–90% RH non-condensing
Mac Address Table
8k
Packet Forwarding Rate
41.66 Mpps
Jumbo Frame
9KB
VLAN
VLAN Group: Max. 4K VLAN Groups802.1Q tag VLANMAC VLAN: 12 EntriesProtocol VLANGVRPVoice VLAN
Access Control
Support up to 230 entriesTime-based ACLMAC ACLIP ACLIPv6 ACLCombined ACLRule Operation: Permit/DenyPolicy ActionACL Rules Binding
POE
Yes
Managed
Smart
Max RJ45 Transfer Rate
10/100/1000 Mbps
Max SFP Transfer Rate
GB SFP
